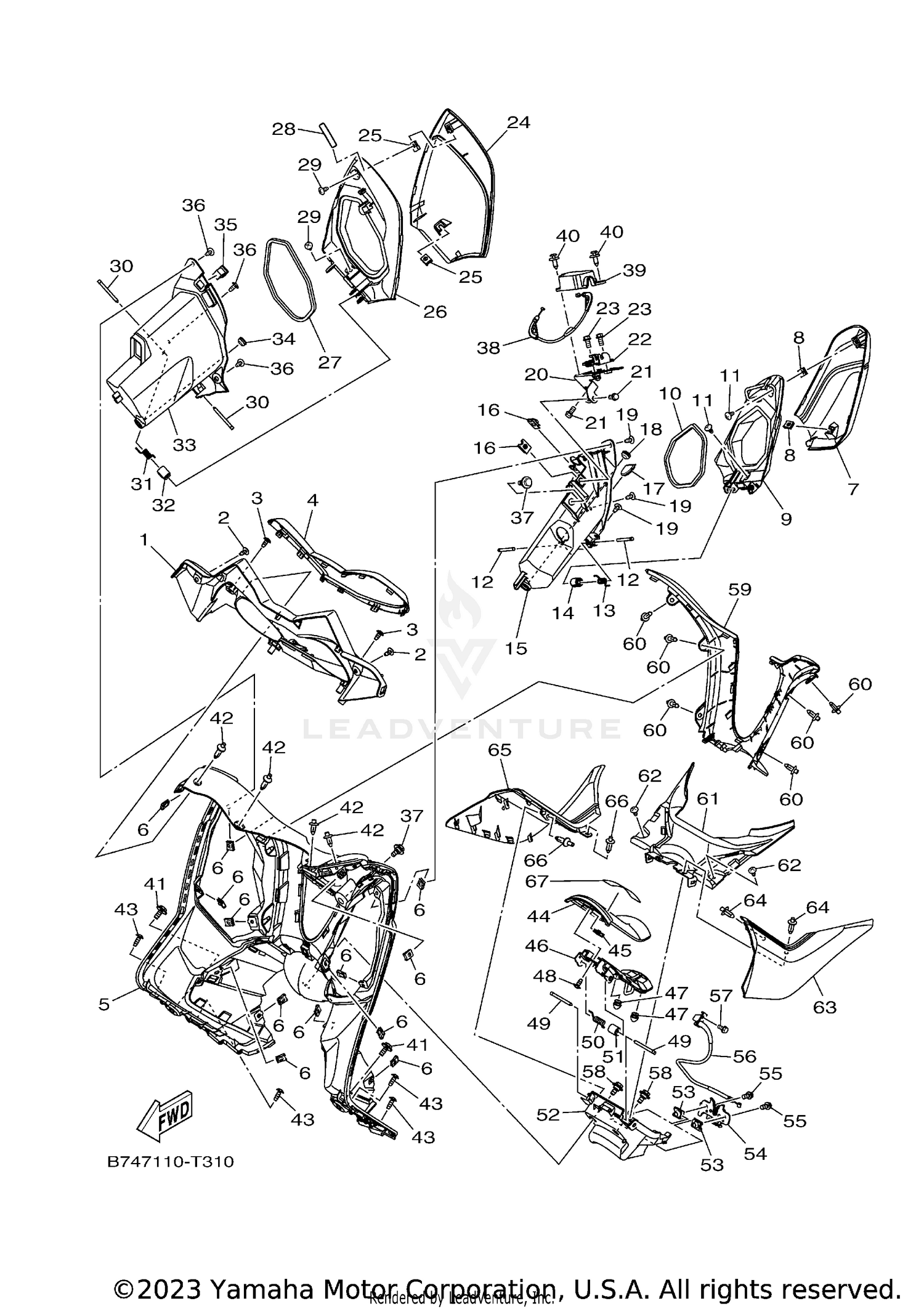

Leg Shield Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL, INNER 1
B74-F836K-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, ROUND TAPPING
90160-05808-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
MOLE 2
B74-F8346-00-P1
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEG SHIELD 1
B74-F8311-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PANEL, INNER 2
B74-F836L-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#9
LID 2
B74-F839L-00-00
Superseded by B74-F839L-01-00
|
$3.10 | ||
|
Unavailable |
|||
|
#10
DAMPER, PLATE
90520-06808-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.45 | ||
|
Unavailable |
|||
|
#12
PIN
B74-F818A-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TORSION
90508-13800-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
B74-F834F-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOX 2
B74-F838L-00-00
Superseded by B74-F838L-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
NUT, SPRING
90183-06818-00
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP
B74-F8349-00-00
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, BLIND
4US-F6199-00-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.45 | ||
|
Unavailable |
|||
|
#20
STAY 2
B74-F8357-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAT LOCK ASSY
1DY-F4780-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#24
PANEL, INNER 3
B74-F836M-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#26
LID 3
B74-F839V-00-00
Superseded by B74-F839V-01-00
|
$3.65 | ||
|
Unavailable |
|||
|
#27
DAMPER, PLATE
90520-06808-00
|
$1.60 | ||
|
Unavailable |
|||
|
#28
PLATE
B74-F8336-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.45 | ||
|
Unavailable |
|||
|
#30
PIN
B74-F818A-00-00
|
$3.05 | ||
|
Unavailable |
|||
|
#31
SPRING, TORSION
90508-13801-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER
B74-F834F-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#33
BOX 3
B74-F838V-00-00
Superseded by B74-F838V-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#34
PLUG, BLIND
4US-F6199-00-00
|
$4.85 | ||
|
Unavailable |
|||
|
#35
CLAMP
90464-13801-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.45 | ||
|
Unavailable |
|||
|
#37
BOLT
90109-06887-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#38
WIRE
B74-F835X-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER
B74-F8365-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#40
RIVET
90269-06812-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, WITH WASHER
90119-06051-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
RIVET
90269-06816-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#44
LID, FUEL
B74-F74A8-00-P1
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#46
LID 4
B74-F839W-00-00
Superseded by B74-F839W-01-00
|
$2.70 | ||
|
Unavailable |
|||
|
#47
PLUG
4G0-21639-00-00
Superseded by 90338-07018-00
|
$6.49 | ||
|
Unavailable |
|||
|
#48
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.45 | ||
|
Unavailable |
|||
|
#49
PIN
B74-F818A-00-00
|
$3.05 | ||
|
Unavailable |
|||
|
#50
SPRING, TORSION
90508-14803-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#51
DAMPER
B74-F834F-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#52
BOX 4
B74-F838W-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
NUT, SPRING
90183-06818-00
|
$0.70 | ||
|
Unavailable |
|||
|
#54
SEAT LOCK ASSY
1DY-F4780-00-00
|
$3.70 | ||
|
Unavailable |
|||
|
#55
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#56
WIRE, PULL
B74-F4494-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, WITH WASHER
97527-05512-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#58
BOLT
90109-06220-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
LEG SHIELD 2
B74-F8312-00-P1
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
RIVET
90269-06816-00
|
$4.05 | ||
|
Unavailable |
|||
|
#61
COVER 1
B74-F842M-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.45 | ||
|
Unavailable |
|||
|
#63
PANEL, CONSOLE 1
B74-F837L-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#64
RIVET
90269-06816-00
|
$4.05 | ||
|
Unavailable |
|||
|
#65
PANEL, CONSOLE 2
B74-F837M-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#66
RIVET
90269-06816-00
|
$4.05 | ||
|
Unavailable |
|||
|
#67
LABEL, NOTICE WIND
B74-F815K-00-00
Superseded by B74-F815K-01-00
|
$0.65 | ||
|
Unavailable |
|||
