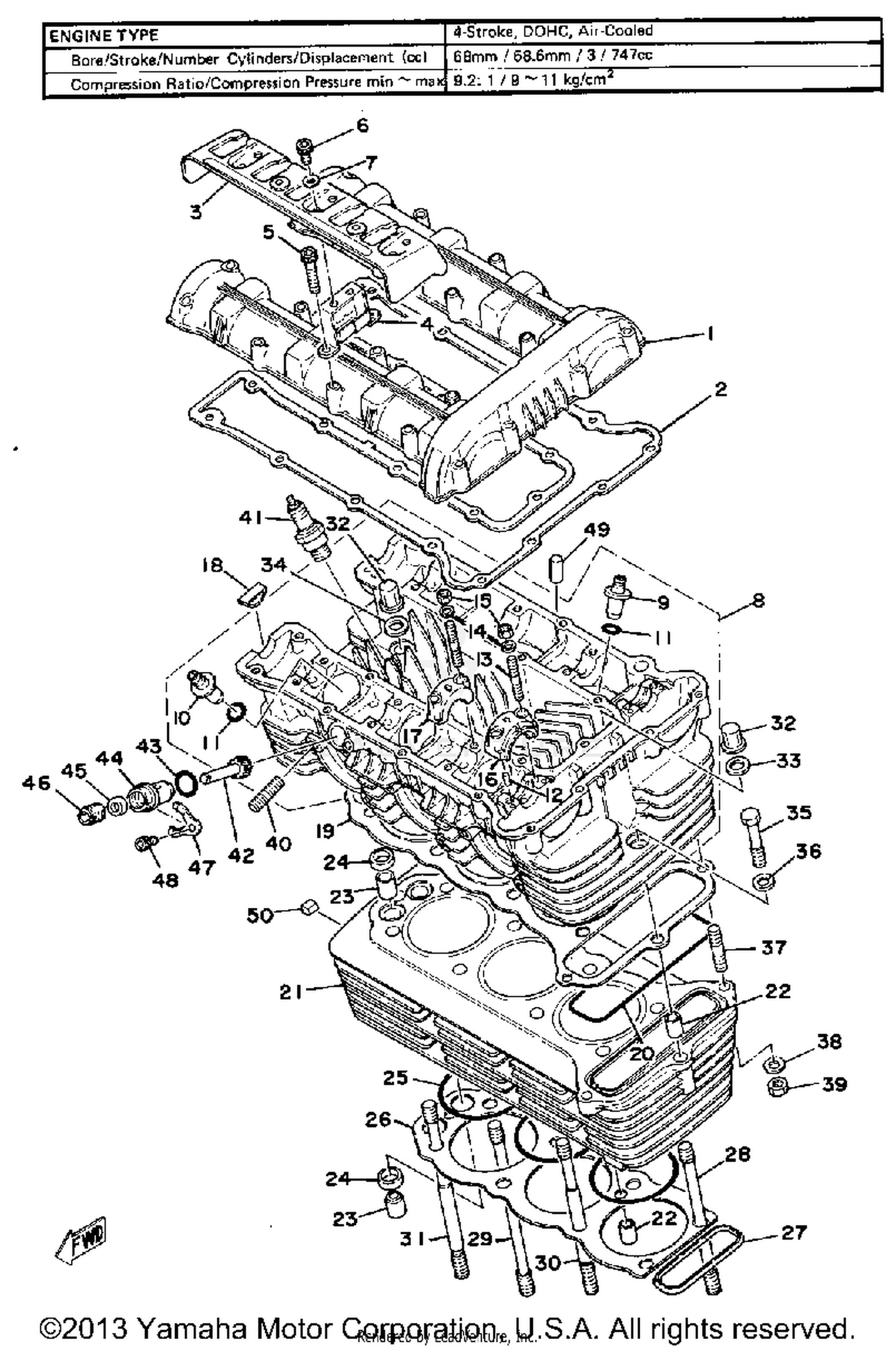

Cylinder Head - Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CYLINDER.HEAD 1
2G2-11191-00-00
|
$65.31 | ||
|
Unavailable |
|||
|
#2
GASKET,HD COVER1
1J7-11193-00-00
Superseded by 1J7-11193-10-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, CYLINDER.HEAD 2
1J7-11192-03-00
|
$60.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, CAMSHAFT 1
1J7-11183-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#5
BOLT
91316-06035-00
Superseded by 91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,HEX.SOCKET HEAD
91316-06014-00
Superseded by 91317-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER HEAD ASSEMBLY
2G2-11110-00-00
|
$661.99 | ||
|
Unavailable |
|||
|
#9
GDE, INTK VLV 1 O/S
1J7-11133-10-00
|
$40.99 | ||
|
Unavailable |
|||
|
#10
GDE, EXST VLV 1 O/S
1J7-11134-10-00
|
$40.99 | ||
|
Unavailable |
|||
|
#11
O-RING
93210-11313-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
93603-09004-00
|
$2.15 | ||
|
Unavailable |
|||
|
#13
BOLT, STUD
90116-06228-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, CAMSHAFT 1
1J7-12173-10-00
|
$30.99 | ||
|
Unavailable |
|||
|
#17
CAP, CAMSHAFT 2
1J7-12183-10-00
|
$24.99 | ||
|
Unavailable |
|||
|
#18
PLUG
1J7-11138-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, CYL HEAD 1
2F3-11181-00-00
Superseded by 2F3-11181-10-00
|
$125.99 | ||
|
Unavailable |
|||
|
#20
SEAL, CYLINDER 1
1J7-11355-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#21
CYLINDER
2G2-11310-00-00
|
$394.99 | ||
|
Unavailable |
|||
|
#22
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, CYLINDER 3
1J7-11357-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#25
O-RING
93210-74316-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, CYLINDER
1J7-11351-02-00
Superseded by 1J7-11351-12-00
|
$21.99 | ||
|
Unavailable |
|||
|
#27
SEAL, CYLINDER 2
1J7-11356-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#28
BOLT, STUD
90116-10273-00
|
$7.99 | ||
|
Unavailable |
|||
|
#29
BOLT, STUD
90116-10274-00
|
$5.82 | ||
|
Unavailable |
|||
|
#30
BOLT, CYLINDER HOLDING 3
2F3-11363-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#31
BOLT, CYLINDER HOLDING 4
2F3-11364-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#32
NUT, CROWN
90176-10049-00
Superseded by 90176-10075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-10124-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-10131-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
97313-08045-00
Superseded by 97013-08045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-084G3-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, STUD
90116-08161-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
90201-084G3-00
|
$8.49 | ||
|
Unavailable |
|||
|
#39
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, STUD
90116-08271-00
|
$7.49 | ||
|
Unavailable |
|||
|
#41
BPR7ES NGK - 4/PACK
NGK-BP7ES-00-00
Superseded by BPR-7ES00-40-00
|
$2.95 | ||
|
Unavailable |
|||
|
#
CHAMPION N7YC 4PK
CMP-N7YC0-00-00
|
$2.10 | ||
|
Unavailable |
|||
|
#42
GEAR, DRIVEN
1J7-17841-00-00
|
$19.50 | ||
|
Unavailable |
|||
|
#43
O-RING
93210-15171-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
HOUSING, TACH GEAR
2F3-17811-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#45
OIL SEAL, SO-TYPE
93104-07036-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
ADAPTER
256-17848-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#47
STOPPER
1J7-17812-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#48
BOLT
91316-06012-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
PLUG, BLIND
16G-13569-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
ABSORBER 1
434-11161-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
