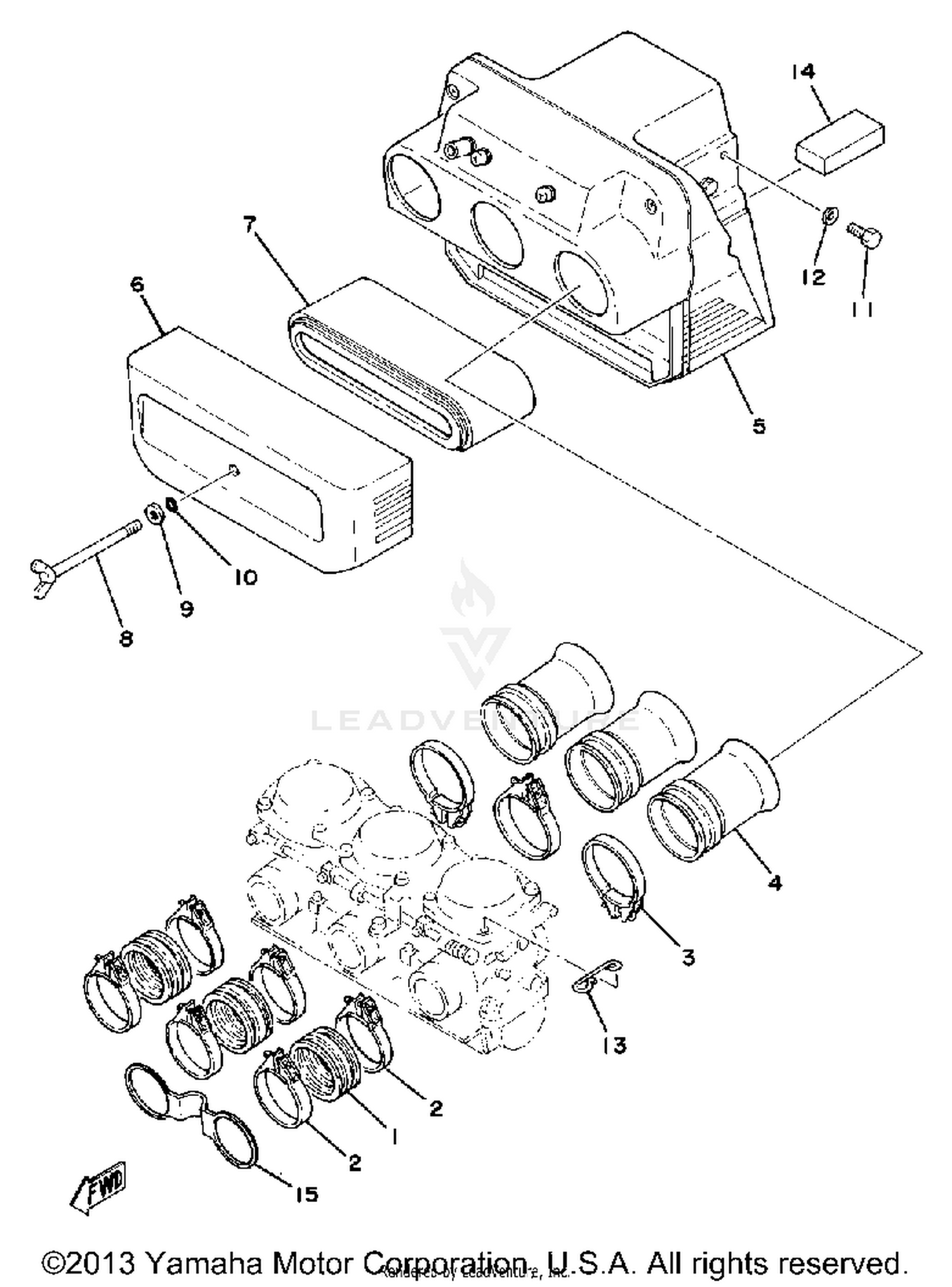

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1 (2F3-13586-
2F3-13586-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE CLAMP ASSY
90460-54137-00
Superseded by 90450-54008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90460-58015-00
Superseded by 90450-58002-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT, AIR CLNR 1
2F3-14453-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#5
AIR CLEANER CASE
2F3-W1441-05-00
|
$99.99 | ||
|
Unavailable |
|||
|
#6
CAP, CLEANER CASE 2
2F3-14422-00-00
|
$12.30 | ||
|
Unavailable |
|||
|
#7
ELEMENT, AIR CLNR
4E2-14451-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WING
90122-06006-00
|
$4.50 | ||
|
Unavailable |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-06257-00
|
$2.85 | ||
|
Unavailable |
|||
|
#11
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90468-20083-00
|
$1.28 | ||
|
Unavailable |
|||
|
#14
SEAL
2F3-14452-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#15
CLAMP
90465-08120-00
|
$2.37 | ||
|
Unavailable |
|||
