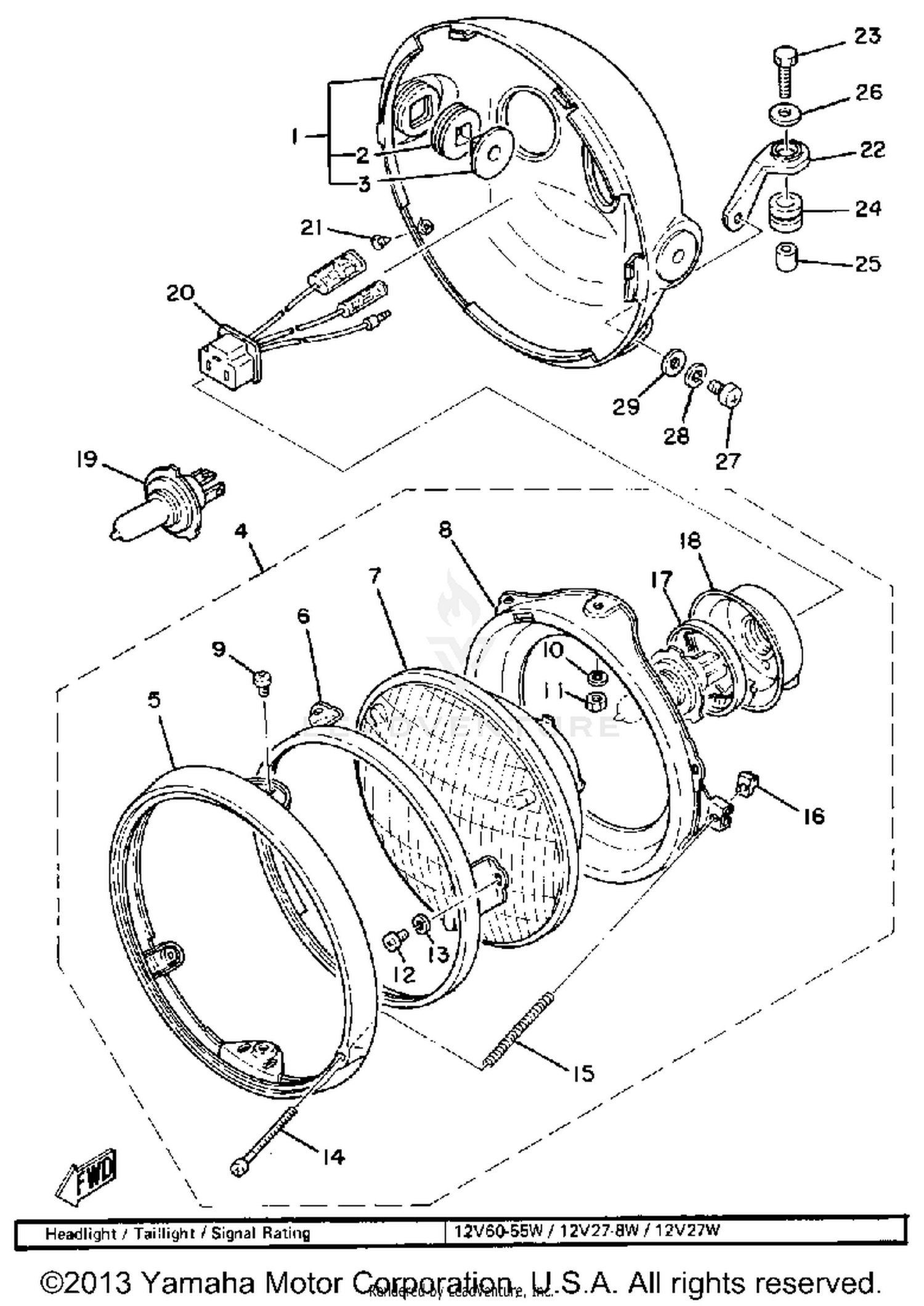

Head Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSEMBLY
1J7-84330-62-33
|
$102.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, HEADLIGHT
584-84345-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, BODY FTNG
584-84338-60-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HEADLIGHT UNIT ASSEMBLY
2F3-84303-A0-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM, HEADLIGHT
341-84315-40-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, RETAINING
2F9-84395-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LENS, HEADLIGHT
2F3-84321-A0-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, MOUNTING
2F9-84394-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, LENS FITTING
98580-04055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, SCREW
341-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SETTING PLATE, BULB
2F9-84375-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, SOCKET
2F9-84397-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SOCKET
447-84312-60-00
|
|||
|
Unavailable |
|||
|
#21
SCREW, COUNTERSUNK
90152-05005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, HEADLIGHT 1
1J7-84318-00-00
|
$8.02 | ||
|
Unavailable |
|||
|
#23
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-16114-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-06697-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
