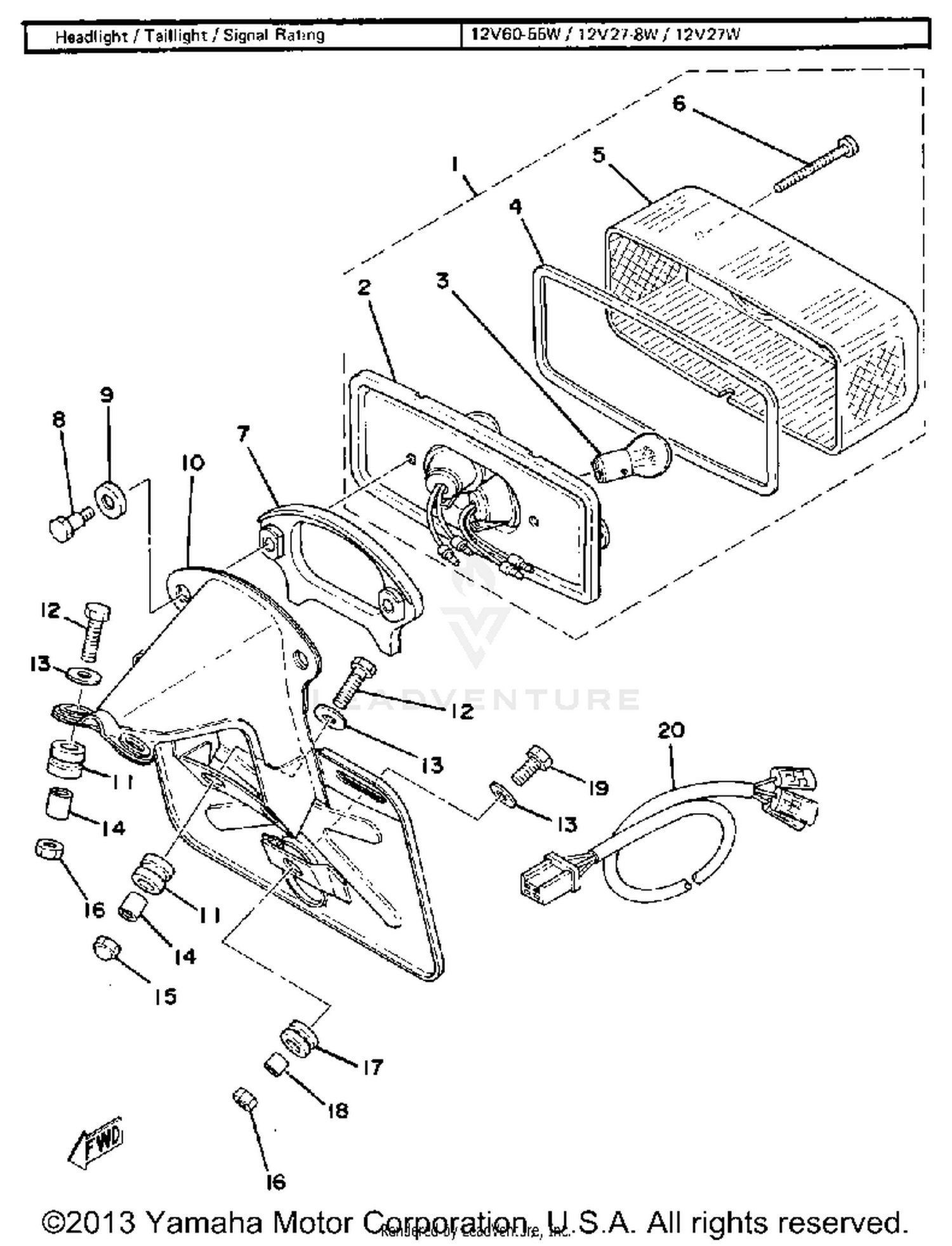

Tail Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
2A2-84710-60-00
|
$71.99 | ||
|
Unavailable |
|||
|
#2
BASE, TAILLIGHT
1A0-84711-60-00
|
$41.99 | ||
|
Unavailable |
|||
|
#3
BULB (12V-21/5W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, TAIL LENS
1A0-84723-60-00
|
$12.49 | ||
|
Unavailable |
|||
|
#5
LENS, TAILLIGHT
1A0-84721-60-00
|
$27.60 | ||
|
Unavailable |
|||
|
#6
SCREW, LENS FITTING
98580-04055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHEET, BASE
1A0-84712-60-00
|
$11.64 | ||
|
Unavailable |
|||
|
#8
SCREW
1A0-84726-60-00
|
$7.99 | ||
|
Unavailable |
|||
|
#9
WASHER, SPECIAL
2H7-84754-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, LICENSE
2F3-84751-60-33
|
$45.40 | ||
|
Unavailable |
|||
|
#11
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-13016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-062N2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CORD, TAILLIGHT
2F3-84717-00-00
|
$8.06 | ||
|
Unavailable |
|||
