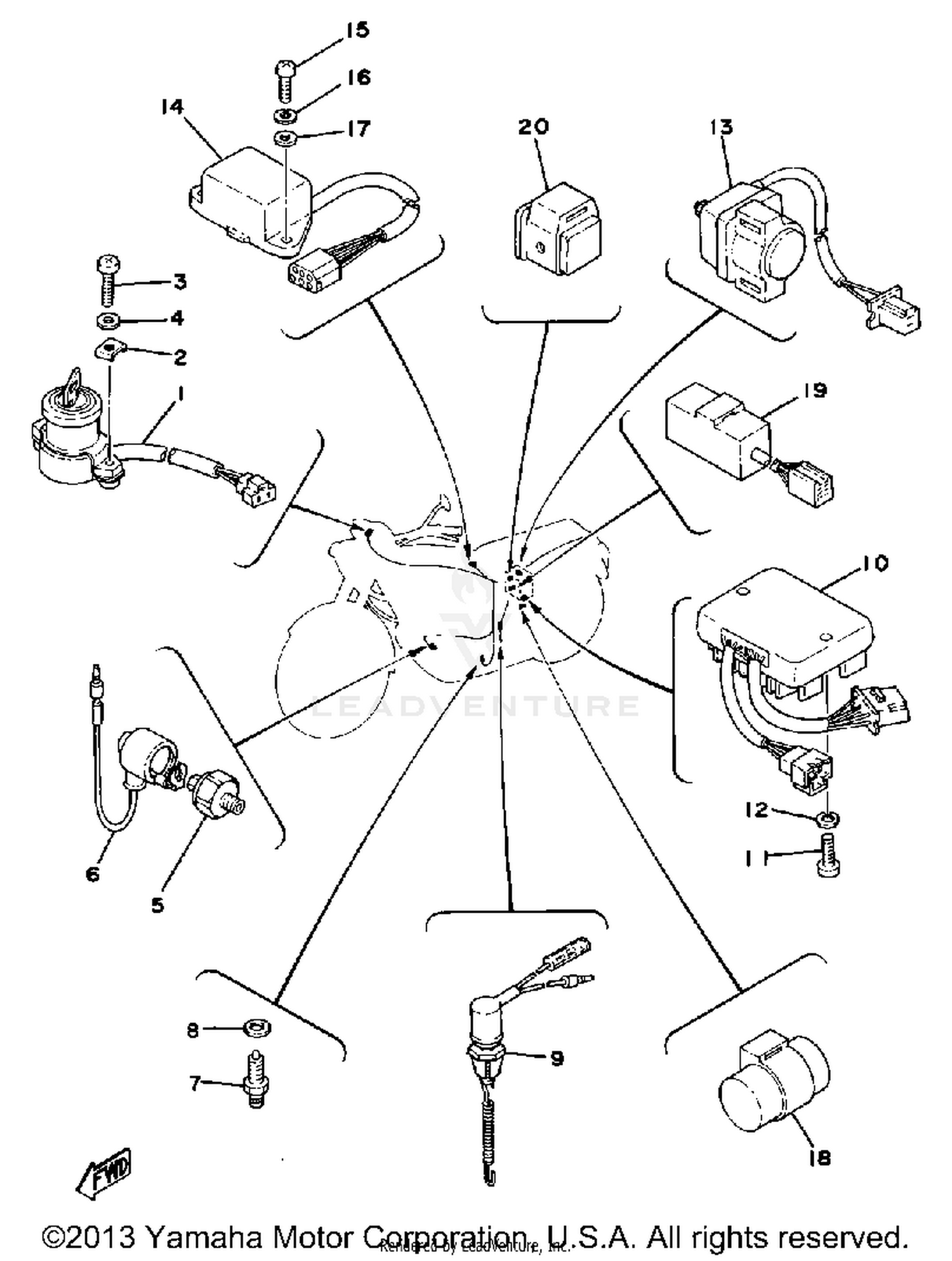

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN SWITCH ASSEMBLY
2F3-82508-50-00
|
$88.99 | ||
|
Unavailable |
|||
|
#2
WASHER, SPECIAL
533-82517-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
98501-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-06412-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL PRESSURE SWITCH ASS''Y
341-82504-02-00
|
$141.99 | ||
|
Unavailable |
|||
|
#6
WIRE, LEAD
1J7-82507-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#7
NEUTRAL SWITCH ASSY
2H7-82540-00-00
Superseded by 4GY-82540-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-10171-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOP SWITCH ASSY
2F1-82530-02-00
Superseded by 2F1-82530-03-00
|
$42.99 | ||
|
Unavailable |
|||
|
#10
RECTIFIER/REG ASSEMBLY
1T4-81960-A0-00
|
$288.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
STARTER SWITCH ASSEMBLY
1J7-81940-10-00
|
$125.99 | ||
|
Unavailable |
|||
|
#14
RSRV LTNG UNIT ASSEMBLY
2F9-84308-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
FLASHER RELAY ASSEMBLYASSEMBLY
2F0-83350-70-00
Superseded by 2NV-83350-00-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FLASHER CANCEL UNIT
1A0-83395-03-00
|
$128.99 | ||
|
Unavailable |
|||
|
#20
RELAY ASSEMBLY
2H7-81950-10-00
|
$88.65 | ||
|
Unavailable |
|||
