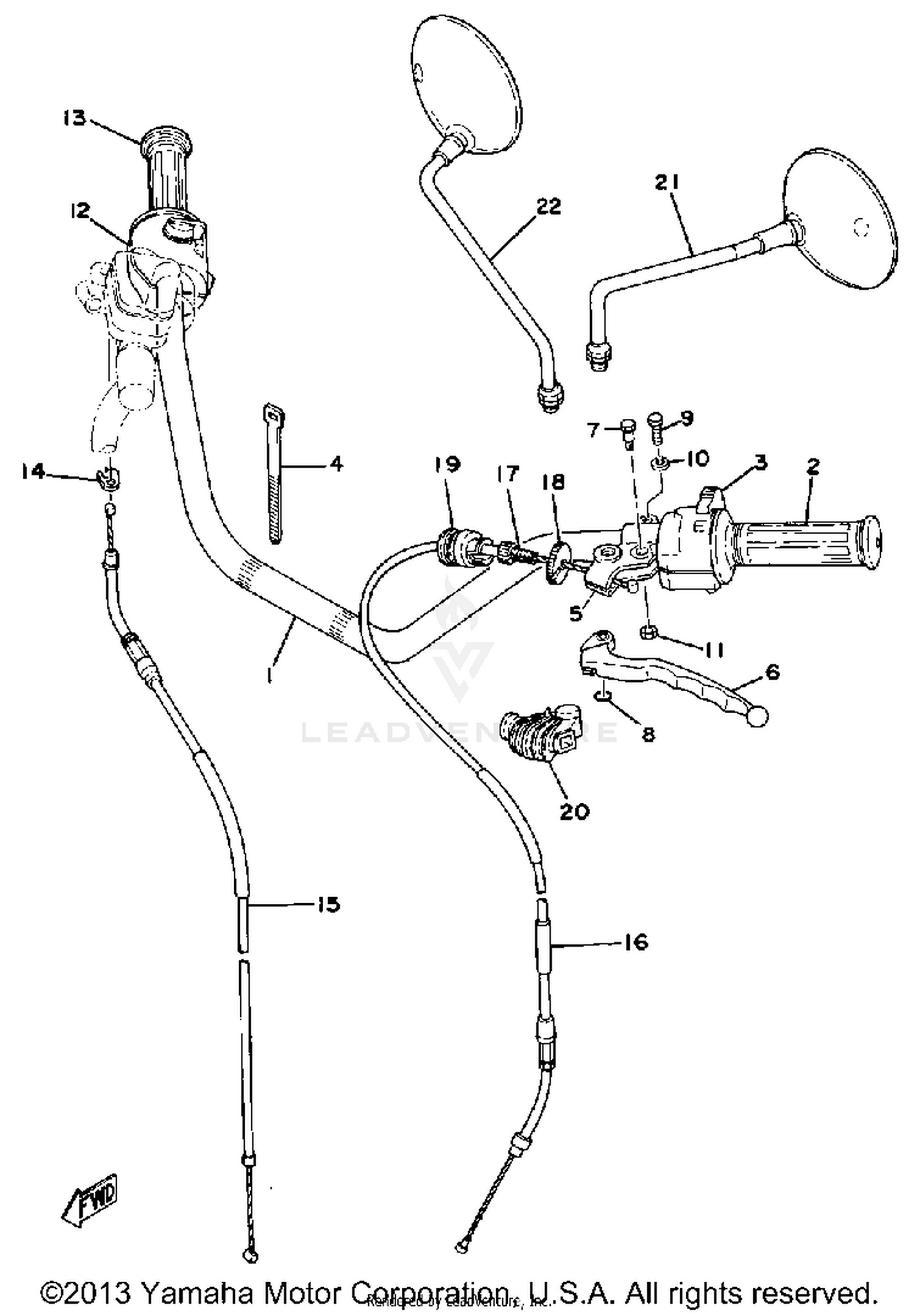

Handle - Wire Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
4H9-26111-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#2
GRIP LH
2H7-26241-00-00
Superseded by 2H7-26241-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH, HANDLE 3
2G2-83973-00-98
|
$68.99 | ||
|
Unavailable |
|||
|
#4
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, LEVER 1
341-82911-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER L
2H0-83912-30-00
Superseded by 2H0-83912-31-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
2H7-83945-00-00
Superseded by 90109-06798-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-11368-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (661)
97003-06022-00
Superseded by 97013-06022-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH, HANDLE 2
2G2-83975-00-98
|
$65.99 | ||
|
Unavailable |
|||
|
#13
GRIP ASSY
2H7-26240-00-00
Superseded by 2H7-26240-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER
584-26393-02-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE, THROTTLE 1
1T4-26311-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#16
CABLE, CLUTCH
1T4-26335-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#17
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOOT, CABLE
1E6-26342-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, HANDLE LEVER 1
1E6-26372-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
MIRROR ASSEMBLY LH
4G0-26290-10-00
|
$45.99 | ||
|
Unavailable |
|||
|
#22
MIRROR ASSEMBLY RH
2H7-26290-00-00
|
$33.99 | ||
|
Unavailable |
|||
