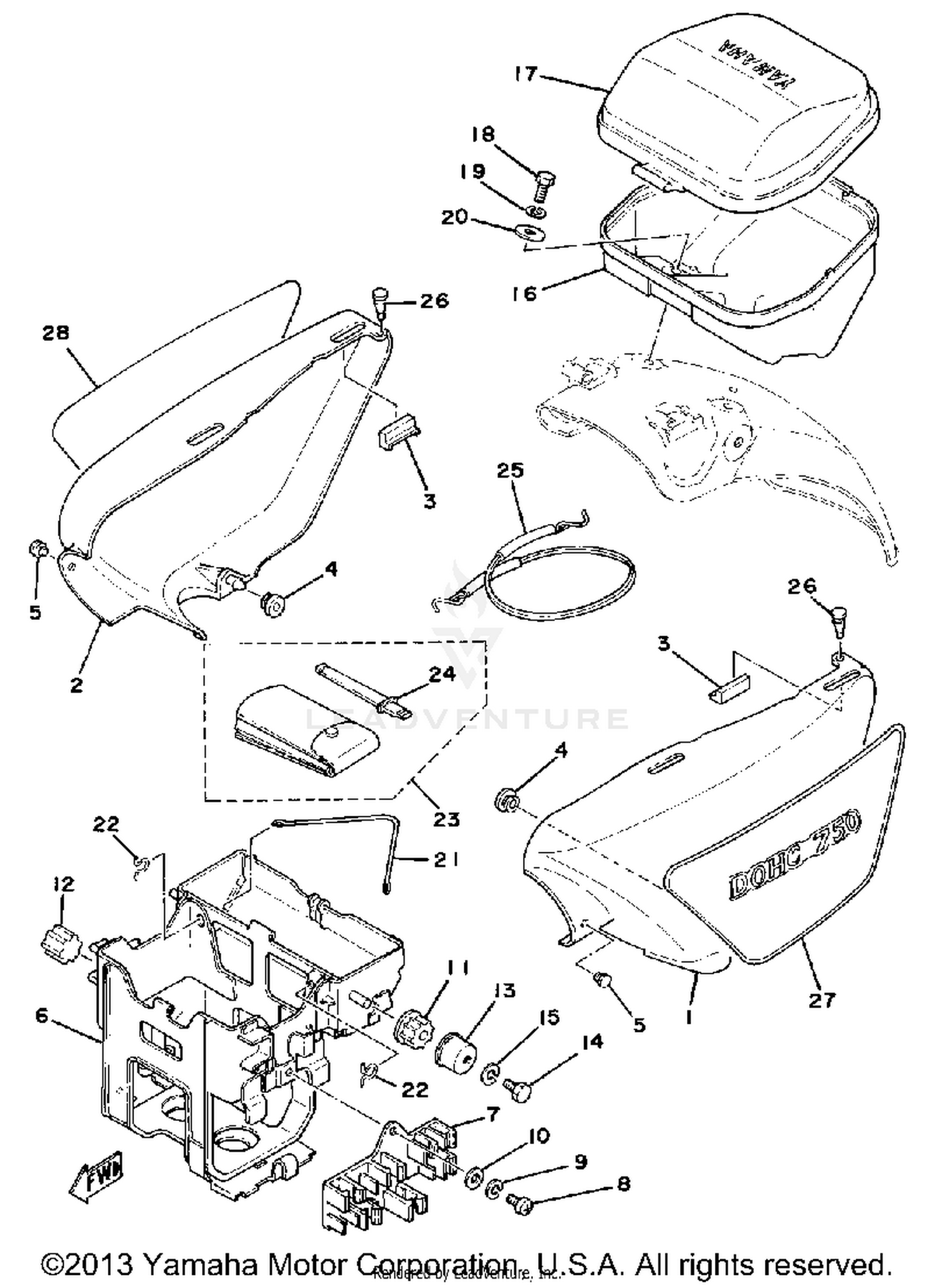

Side Cover - Battery Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
2F3-21711-00-H7
|
$78.80 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 1
2F3-21711-00-H9
|
$66.06 | ||
|
Unavailable |
|||
|
#2
COVER, SIDE 2
2F3-21721-00-H7
|
$66.06 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 2
2F3-21721-00-H9
|
$66.06 | ||
|
Unavailable |
|||
|
#3
DAMPER
360-21717-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
1J7-21717-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOX
3J3-21170-01-00
|
$53.99 | ||
|
Unavailable |
|||
|
#7
HOLDER, KNOB
1J7-21794-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
1J7-21746-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#12
CLAMP, DAMPER
2J2-21729-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, DAMPER
1J7-21798-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#14
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#16
BOX
1T4-2177A-00-00
|
$17.60 | ||
|
Unavailable |
|||
|
#17
LID
1T4-2177E-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#18
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, TOOL
256-21376-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOOK, TOOL BAND
256-21366-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#23
TOOL KIT
3J3-W2810-00-00
|
$201.99 | ||
|
Unavailable |
|||
|
#24
GAUGE, OIL LEVEL
1J7-2815A-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#25
WIRE, HOOK
1T4-2814A-00-00
|
$13.78 | ||
|
Unavailable |
|||
|
#26
GROMMET
90480-05201-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
EMBLEM 1
2F3-21781-20-00
|
$10.99 | ||
|
Unavailable |
|||
|
#28
EMBLEM 2
2F3-21782-20-00
|
$10.99 | ||
|
Unavailable |
|||
