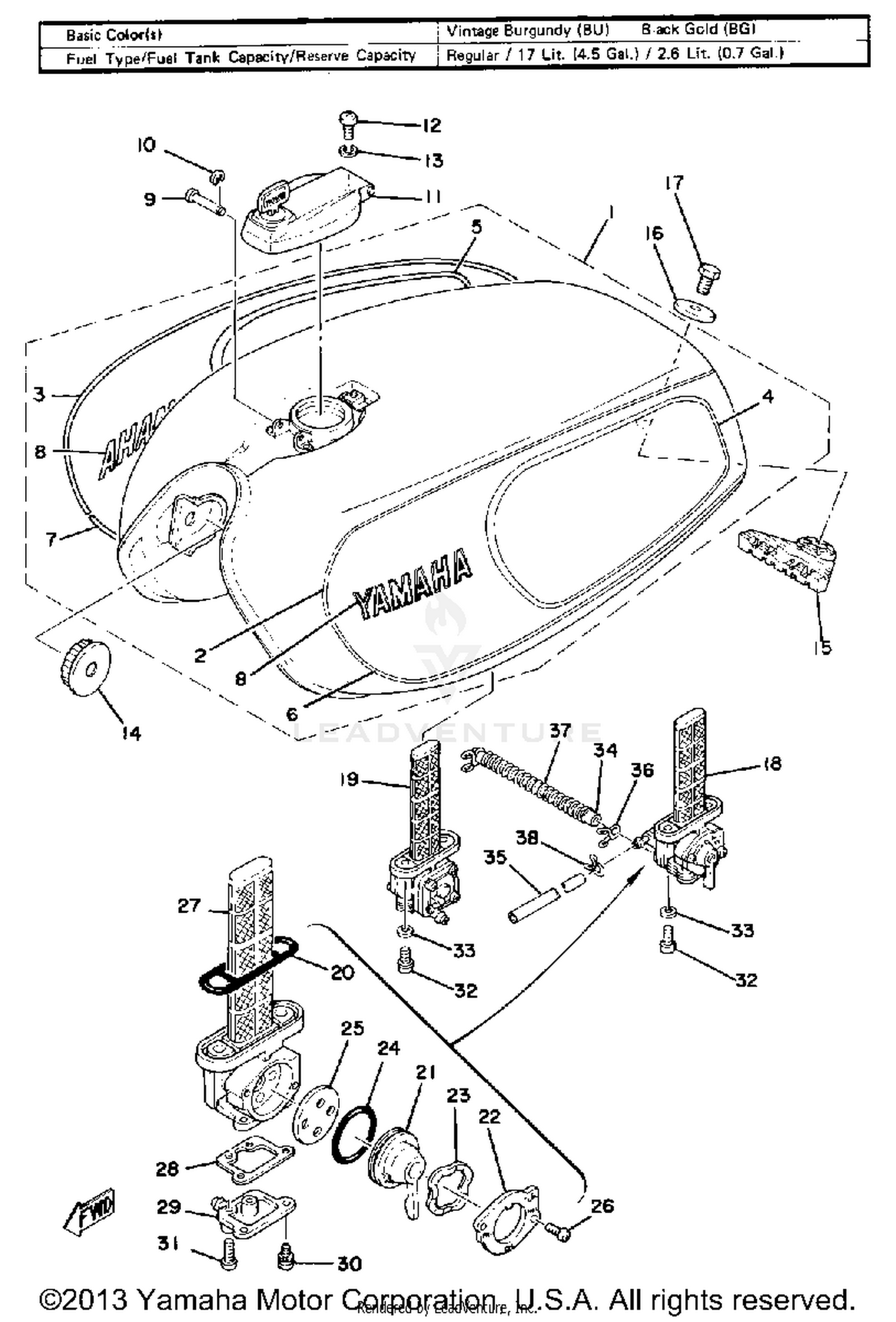

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1J7-24110-00-07
|
$320.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
1J7-24110-00-08
|
$343.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
2F3-24244-20-00
|
$8.28 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 4
2F3-24247-20-00
|
$8.28 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 3
2F3-24246-20-00
|
$8.28 | ||
|
Unavailable |
|||
|
#5
GRAPHIC, FUEL TNK 6
2F3-24249-20-00
|
$5.64 | ||
|
Unavailable |
|||
|
#6
GRAPHIC, FUEL TNK 2
2F3-24245-20-00
|
$8.28 | ||
|
Unavailable |
|||
|
#7
GRAPHIC, FUEL TNK 5
2F3-24248-20-00
|
$5.64 | ||
|
Unavailable |
|||
|
#8
EMBLEM, YAMAHA
2F3-24161-20-00
Superseded by 99245-00120-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, SPEC''L SHAPE
90249-03123-00
|
$3.85 | ||
|
Unavailable |
|||
|
#10
CIRCLIP
93430-02001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP ASSEMBLY
1E7-24602-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, LOCATING 1
1J7-24181-01-00
|
$18.49 | ||
|
Unavailable |
|||
|
#15
DAMPER, LOCATING 2
1J7-24182-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
90209-08098-00
Superseded by 90209-08008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUEL COCK ASSEMBLY 1
2F3-24500-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#19
FUEL COCK ASSEMBLY 2
2F3-24510-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#20
GASKET
1J7-24512-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
LEVER, COCK
1J7-24524-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#
LEVER, COCK
1J7-24524-10-00
|
$6.26 | ||
|
Unavailable |
|||
|
#22
PLATE, LVR FITTING
1J7-24525-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#
PLATE, LVR FITTING
1J7-24525-10-00
|
$4.35 | ||
|
Unavailable |
|||
|
#23
WASHER, WAVE
1J7-24518-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#24
SEAL, COCK
1J7-24534-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
VALVE
1J7-24523-00-00
Superseded by 16G-24523-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, OVAL HEAD
98601-03010-00
|
$0.89 | ||
|
Unavailable |
|||
|
#27
NET, FILTER 1
1J7-24514-02-00
|
$54.99 | ||
|
Unavailable |
|||
|
#28
GASKET
1J7-24522-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CUP, FILTER
1J7-24521-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#30
SCREW,PANHEAD
97601-04112-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, FLAT HEAD
98701-04016-00
Superseded by 98707-04016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
90149-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE
90445-10133-00
Superseded by 90445-10144-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE
90445-07375-00
|
$3.18 | ||
|
Unavailable |
|||
|
#36
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING, COMPRESSION
90504-06023-00
|
$3.07 | ||
|
Unavailable |
|||
|
#38
CLIP
90467-07029-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
