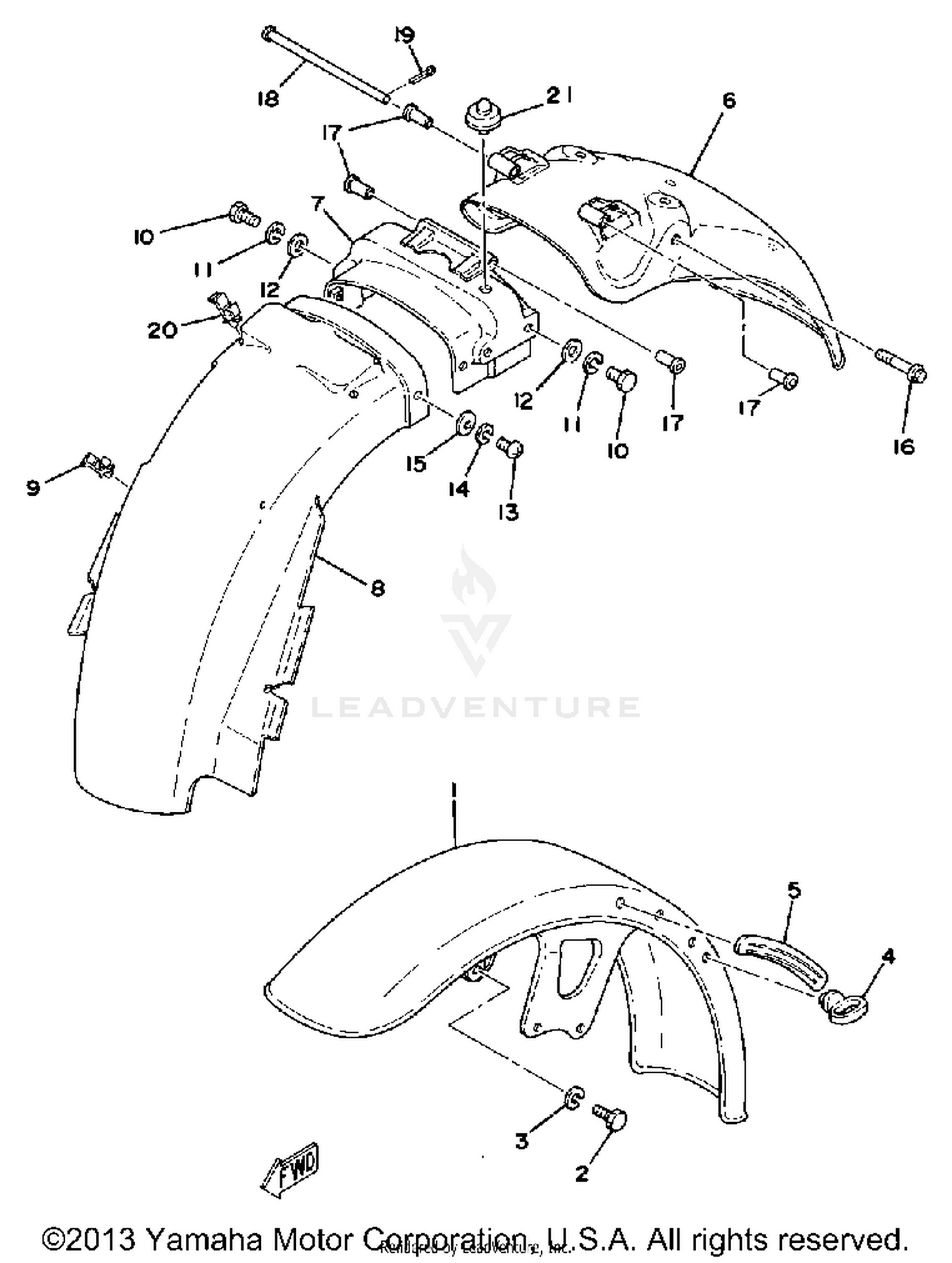

Front Fender - Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
1J7-21510-00-93
|
$137.99 | ||
|
Unavailable |
|||
|
#2
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, CABLE
1A0-21518-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PAD, CABLE
1J7-21517-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#6
FENDER, REAR
2F3-21610-00-93
|
$84.99 | ||
|
Unavailable |
|||
|
#7
STAY, FENDER 1
1J7-21613-00-00
|
$15.48 | ||
|
Unavailable |
|||
|
#8
GUARD, MUD
3J2-21629-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#9
CLAMP
90464-16021-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-08091-00
Superseded by 95814-08040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-065J6-00
Superseded by 90387-06159-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, CLEVIS
91701-06152-00
|
$2.10 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-16025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER
1J7-21649-01-00
|
$7.49 | ||
|
Unavailable |
|||
