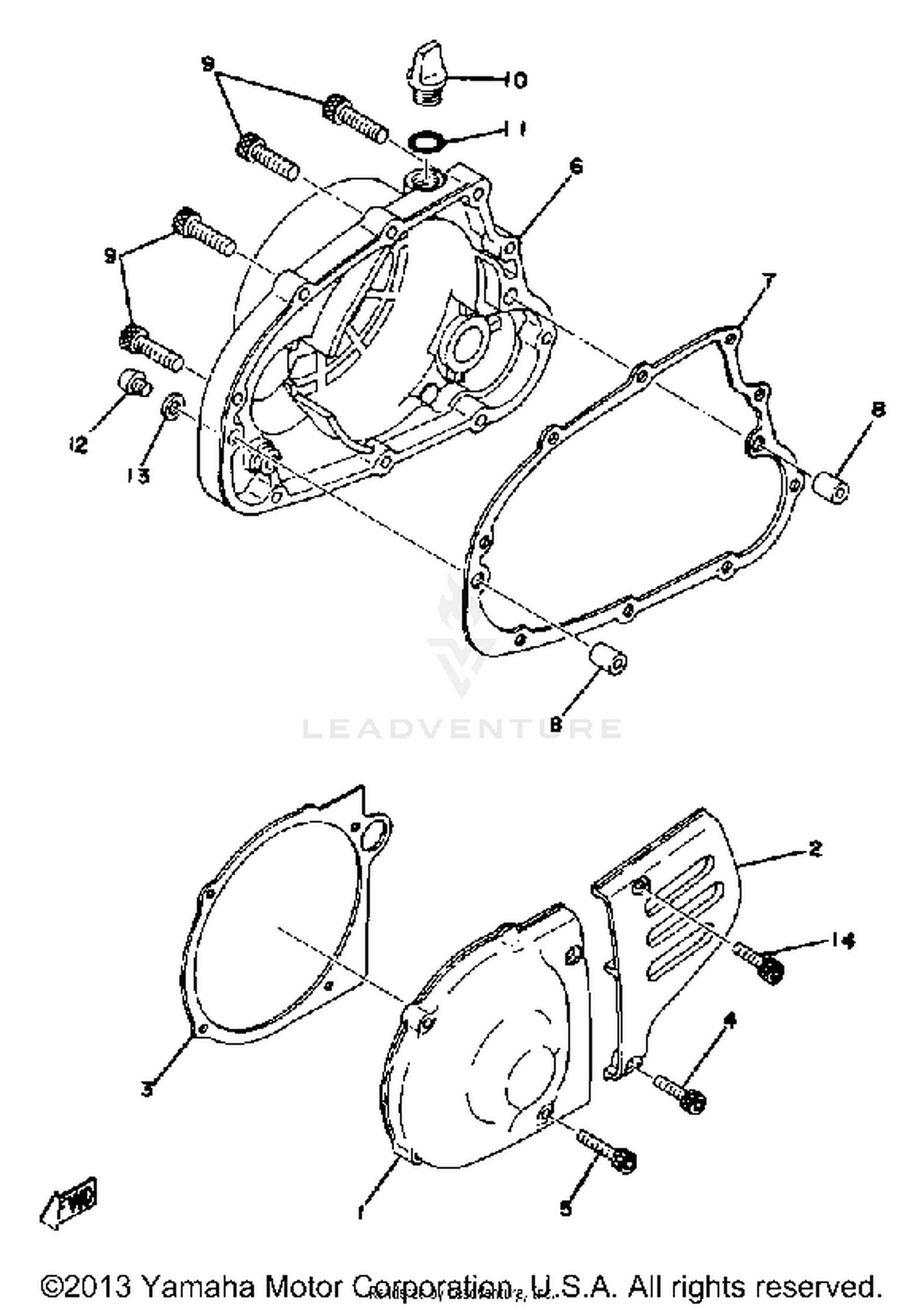

Crankcase Cover Yz100d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
1G8-15411-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#2
COVER, CRANKCASE R
1G8-15421-00-00
|
$29.26 | ||
|
Unavailable |
|||
|
#3
GASKET 1
1G8-15455-00-00
Superseded by 1G8-15455-01-00
|
$18.49 | ||
|
Unavailable |
|||
|
#4
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, CRANKCASE 3
537-15431-01-00
|
$64.35 | ||
|
Unavailable |
|||
|
#7
GASKET, CRCS COVER
537-15451-00-00
Superseded by 537-15451-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#8
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
90110-06138-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
PLUG, OIL LEVEL
1G8-15362-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
98506-06008-00
Superseded by 98517-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
