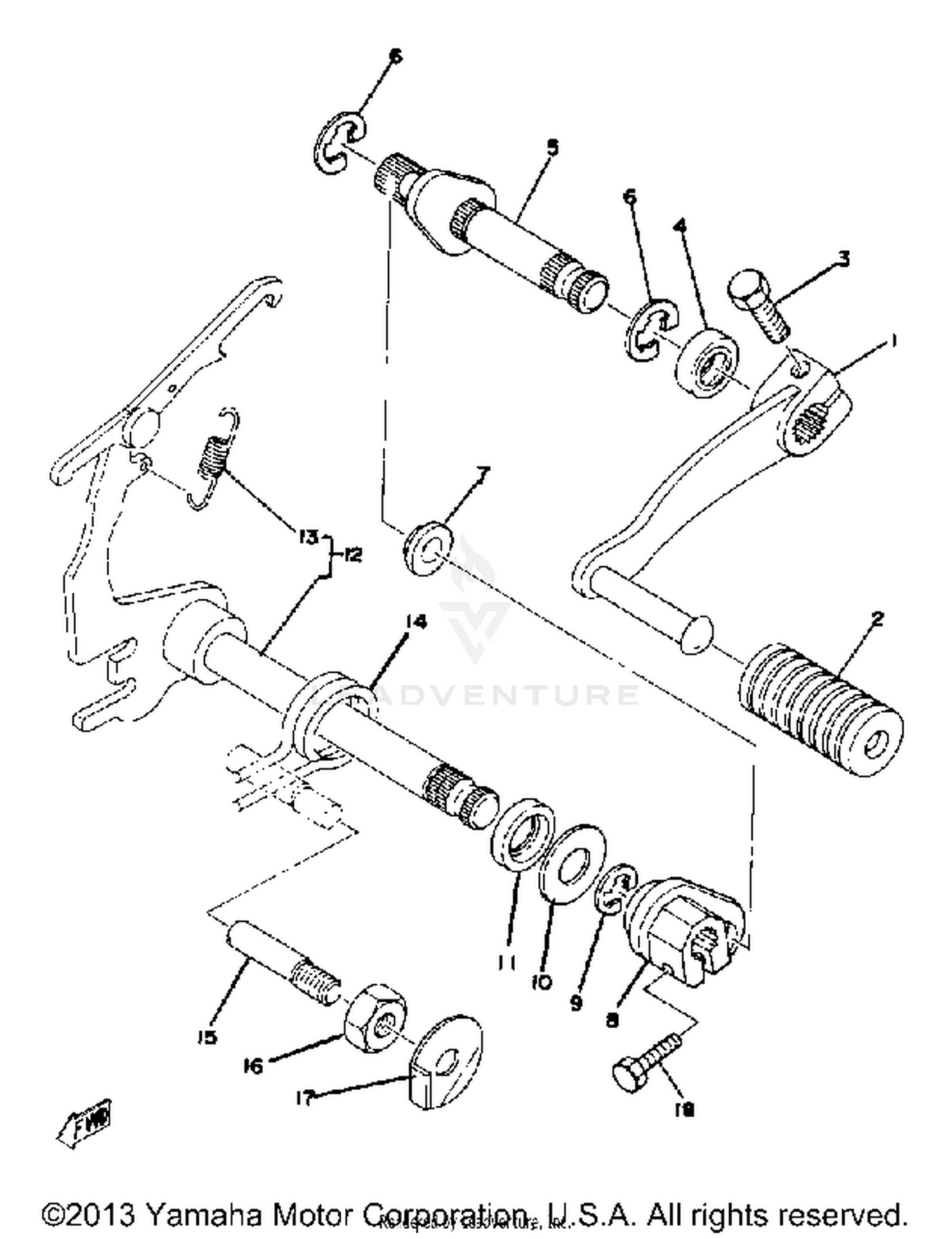

Shift Shaft Yz100d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, SHIFT
2W5-18111-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SHIFT PEDAL
132-18113-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
97016-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93109-12012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIFT SHAFT ASSEMBLY 2
1J4-18102-01-00
|
$29.99 | ||
|
Unavailable |
|||
|
#6
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROLLER, SHIFT LEVER
401-18178-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, SHIFT 4
1J4-18152-02-00
|
$25.99 | ||
|
Unavailable |
|||
|
#9
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-12575-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93101-12060-00
Superseded by 93101-12173-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIFT SHAFT ASSEMBLY.1
1J4-18101-00-00
|
$26.68 | ||
|
Unavailable |
|||
|
#13
SPRING, TENSION
90506-09009-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, TORSION
90508-25273-00
Superseded by 90508-32054-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, SPEC''L SHAPE
90149-08096-00
|
$7.99 | ||
|
Unavailable |
|||
|
#16
NUT, HEXAGON
90170-08029-00
Superseded by 90170-08193-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, LOCK
90215-08014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Unavailable |
|||
