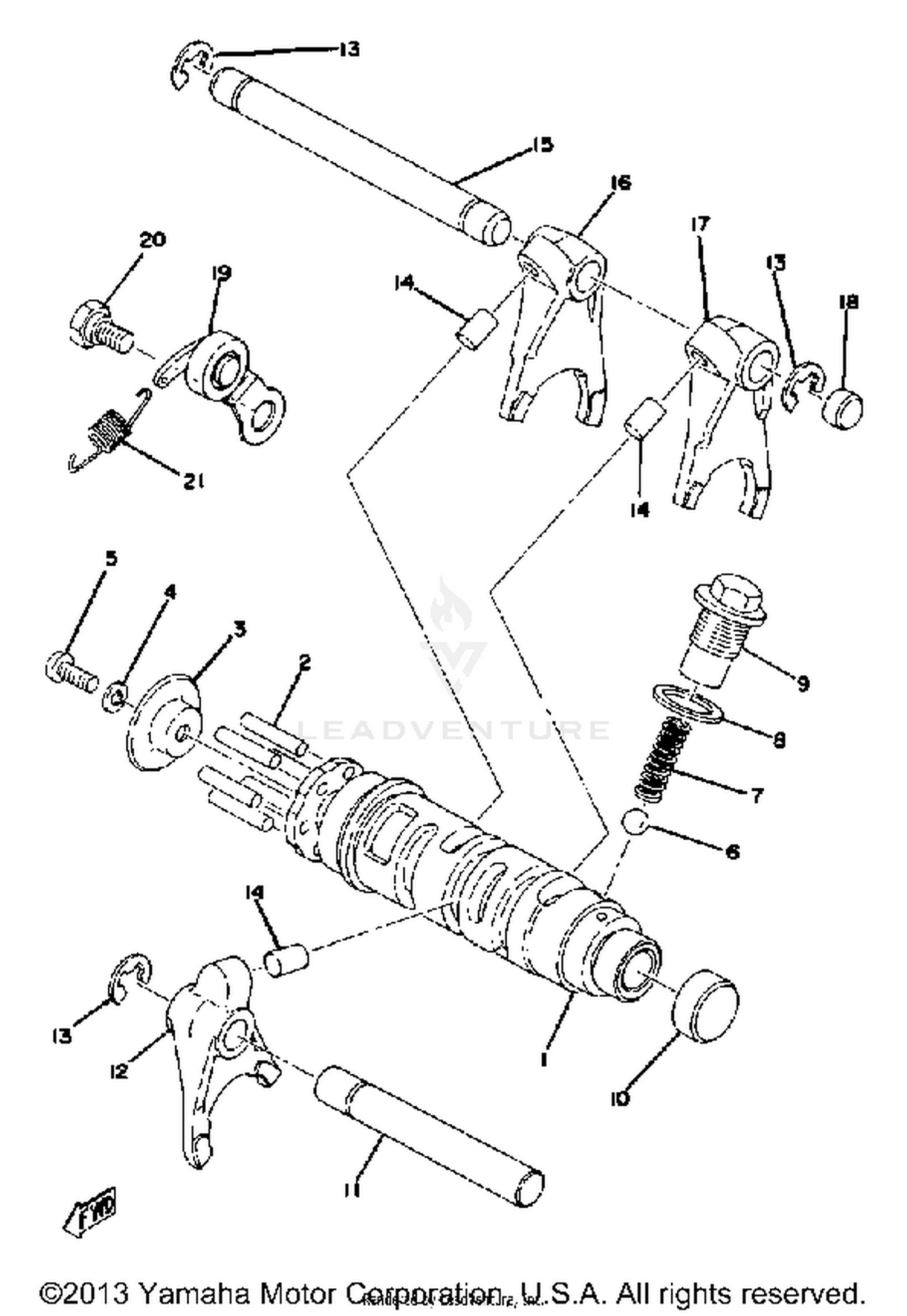

Shift Cam - Fork Yz100d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT CAM ASSEMBLY
1G8-18540-00-00
|
$97.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
93604-22050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, SIDE 1
525-18561-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#4
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BALL
93505-16006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-12083-00
Superseded by 90501-12750-00
|
$1.85 | ||
|
Unavailable |
|||
|
#8
GASKET, DRAIN
137-15353-00-00
Superseded by 4F4-14766-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
90109-14385-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG
90338-20023-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAR, SHIFT FORK GUIDE 1
257-18531-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#12
FORK, SHIFT 2
525-18512-00-00
|
$28.86 | ||
|
Unavailable |
|||
|
#13
CIRCLIP
99001-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, STRAIGHT
90250-06013-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAR, SHIFT FORK GUIDE 2
363-18535-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
FORK, SHIFT 3
525-18513-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#17
FORK, SHIFT 1
537-18511-00-00
|
$37.45 | ||
|
Unavailable |
|||
|
#18
PLUG, SPECIAL SHAPE
90338-10063-00
|
$6.99 | ||
|
Unavailable |
|||
|
#19
STOPPER
1G8-18140-00-00
|
$14.80 | ||
|
Unavailable |
|||
|
#20
BOLT
90109-06001-00
Superseded by 90109-06239-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, TENSION
90506-09112-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
