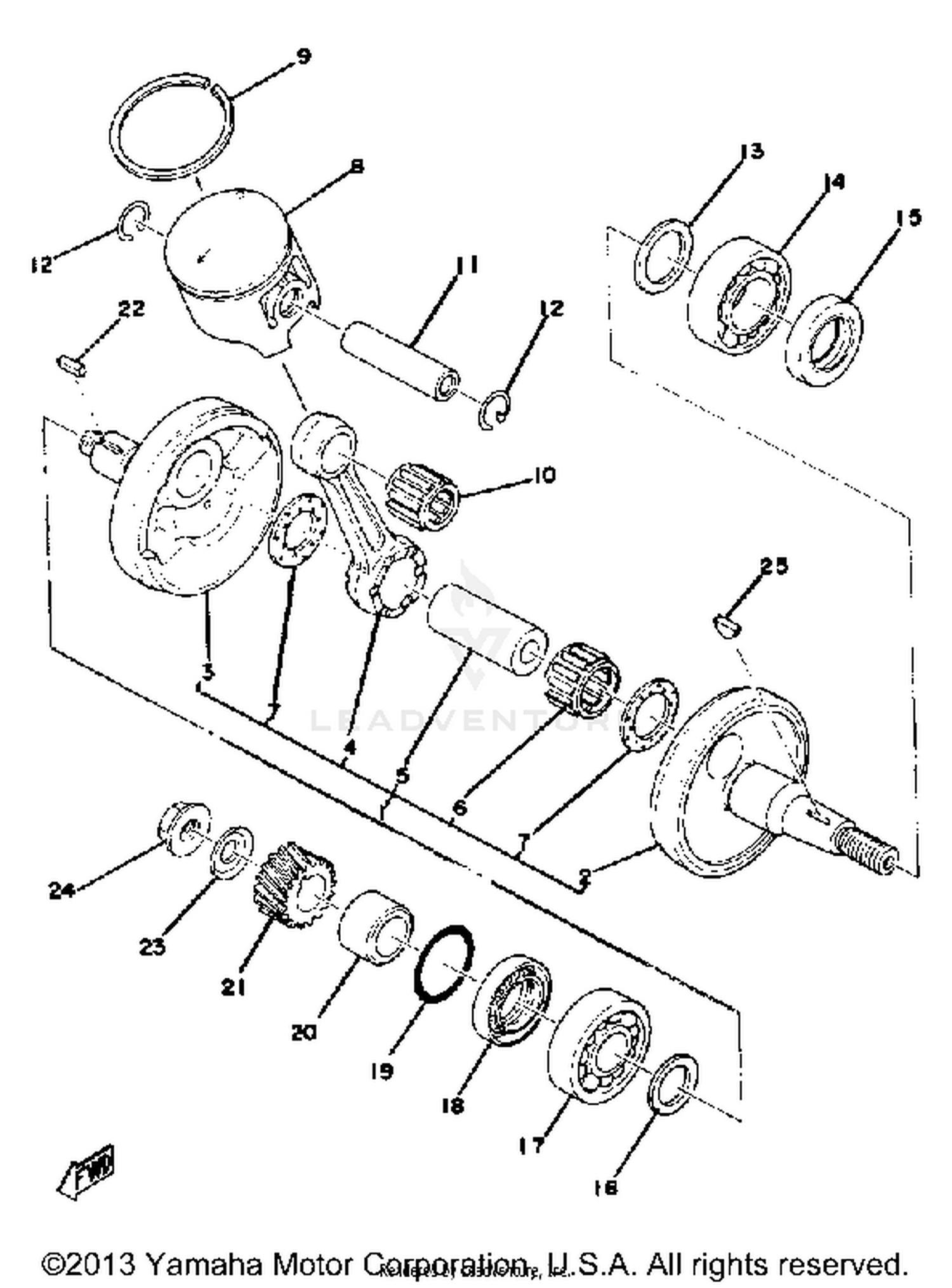

Crankshaft - Piston Yz100d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
1G8-11400-01-00
|
$194.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
1W1-11412-01-00
|
$250.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
525-11422-00-00
|
$70.50 | ||
|
Unavailable |
|||
|
#4
ROD, CONNECTING
3R2-11651-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CRANK 1
3M5-11681-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, CYLINDER.#10
93310-422H0-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-22248-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON STD
3R2-11631-01-96
|
$55.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00 (4TH O/S 1.00
3R2-11638-01-00
|
$92.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75 (2RD O/S 0.75
3R2-11637-01-00
|
$95.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50 (2ND O/S 0.50
3R2-11636-01-00
|
$95.99 | ||
|
Unavailable |
|||
|
#
PISTON 1O/S 0.25 (1ST O/S 0.25M
3R2-11635-01-00
|
$123.99 | ||
|
Unavailable |
|||
|
#9
RING, PISTON STD (STD)
1G9-11601-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 4TH (4TH O/S)
2W5-11611-40-00
|
$26.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 4TH
1G9-11611-40-00
|
$12.08 | ||
|
Unavailable |
|||
|
#
RING, PISTON 3RD (3RD O/S)
2W5-11611-30-00
|
$26.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 3RD
1G9-11611-30-00
|
$14.20 | ||
|
Unavailable |
|||
|
#
RING, PISTON 2ND (2ND O/S)
2W5-11611-20-00
|
$26.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 2ND
1G9-11611-20-00
|
$12.08 | ||
|
Unavailable |
|||
|
#
RING, PISTON 1ST (1ST O/S)
2W5-11611-10-00
|
$26.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 1ST (1ST O.S.)
1G9-11611-10-00
|
$18.60 | ||
|
Unavailable |
|||
|
#
RING, PISTON STD (STD)
2W5-11611-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#10
BEARING, CYLINDRICAL
93310-216L2-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PISTON
1J4-11633-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#12
CIRCLIP
93450-17025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM, CRANK 1
132-11561-00-03
|
$4.55 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
132-11561-00-05
|
$4.65 | ||
|
Unavailable |
|||
|
#14
BEARING (B6205C4)
93306-20529-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL, SW-TYPE
93103-25125-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM, CRANK 1
136-11561-00-04
|
$9.49 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-03
|
$4.25 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-05
|
$8.49 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-06
|
$11.49 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-07
|
$5.99 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-08
|
$6.49 | ||
|
Unavailable |
|||
|
#17
BEARING
93306-30421-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL, SW-TYPE (93103-28100)
93103-28126-00
Superseded by 93103-28011-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-180A6-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-20488-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, PRI DRIVE
525-16111-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#22
KEY, STRAIGHT
90282-05005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
90179-12244-00
Superseded by 90179-12659-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
