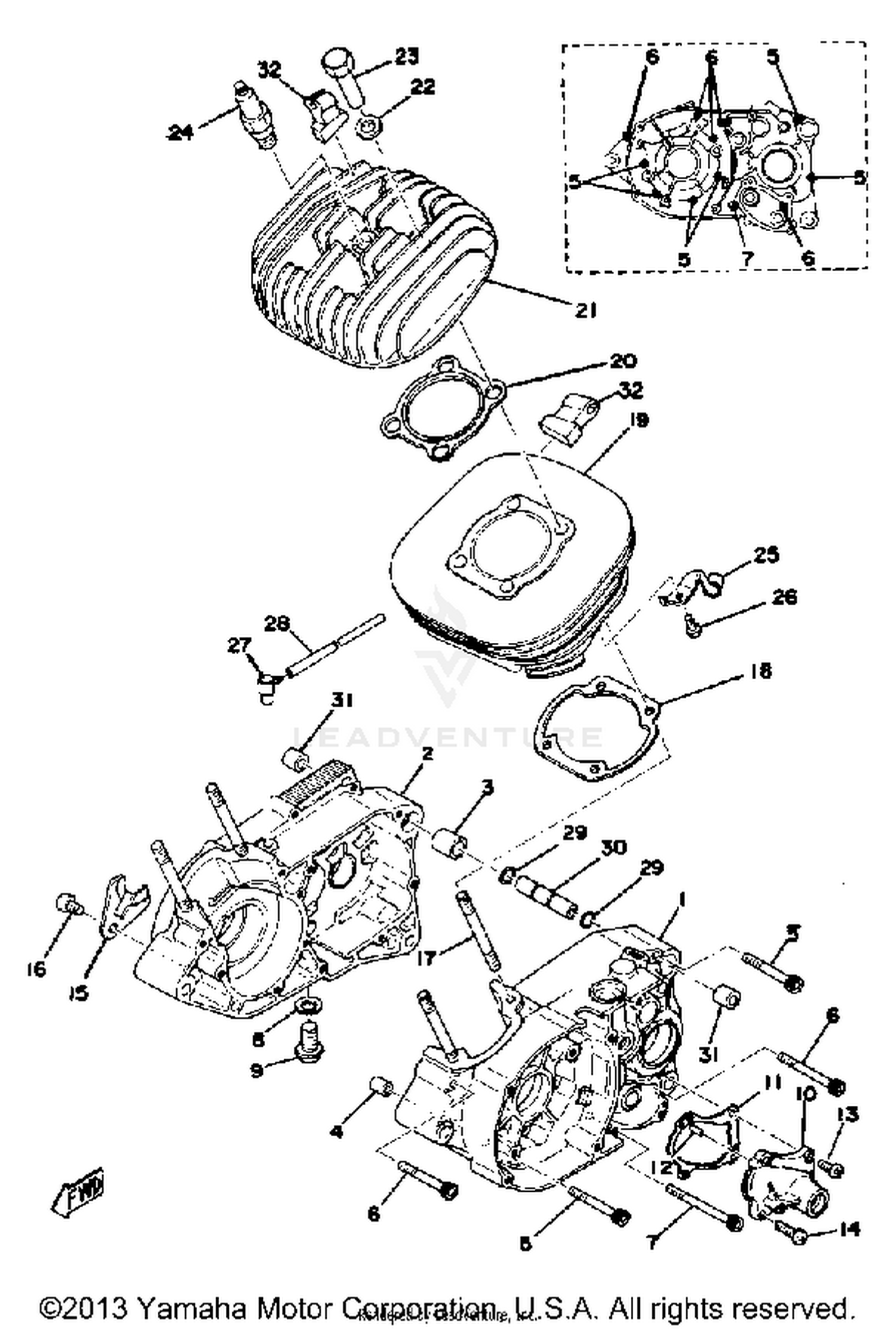

Cylinder - Crankcase Yz100d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
537-15111-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2
537-15121-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99510-20020-00
Superseded by 99530-20020-00
|
$2.55 | ||
|
Unavailable |
|||
|
#4
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
91316-06050-00
Superseded by 91317-06050-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
91316-06060-00
Superseded by 91317-06060-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91316-06070-00
Superseded by 91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, STRAIGHT SCREW
90340-12097-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, SHIFTER 1
1J4-15419-00-00
|
$18.44 | ||
|
Unavailable |
|||
|
#11
GASKET, SHFTR COVER
1J4-15459-00-00
|
$3.65 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98506-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER
304-15128-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
92501-08010-00
Superseded by 98507-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD
90116-08064-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, CYLINDER
248-11351-00-00
Superseded by 1WE-11351-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CYLINDER 1
1J4-11311-00-00
|
$162.99 | ||
|
Unavailable |
|||
|
#20
PIN, DOWEL
93603-12007-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#
GASKET, CYLINDER HEAD 1
1J4-11181-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#21
HEAD, CYLINDER 1
1J4-11111-00-00
|
$48.12 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-12362-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90179-08303-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BR10EIX NGK SPLUG
NGK-B10EV-00-00
Superseded by BR1-0EIX0-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, CLUTCH CABLE
525-15441-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#26
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
BREATHER
583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE
90445-07177-00
Superseded by 90445-07MF1-00
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER, ENGINE MOUNT
401-15317-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
93210-11073-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
Damper
328-15316-00-00
Superseded by 90388-08003-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
ABSORBER 1
537-11161-00-00
|
$3.57 | ||
|
Unavailable |
|||
