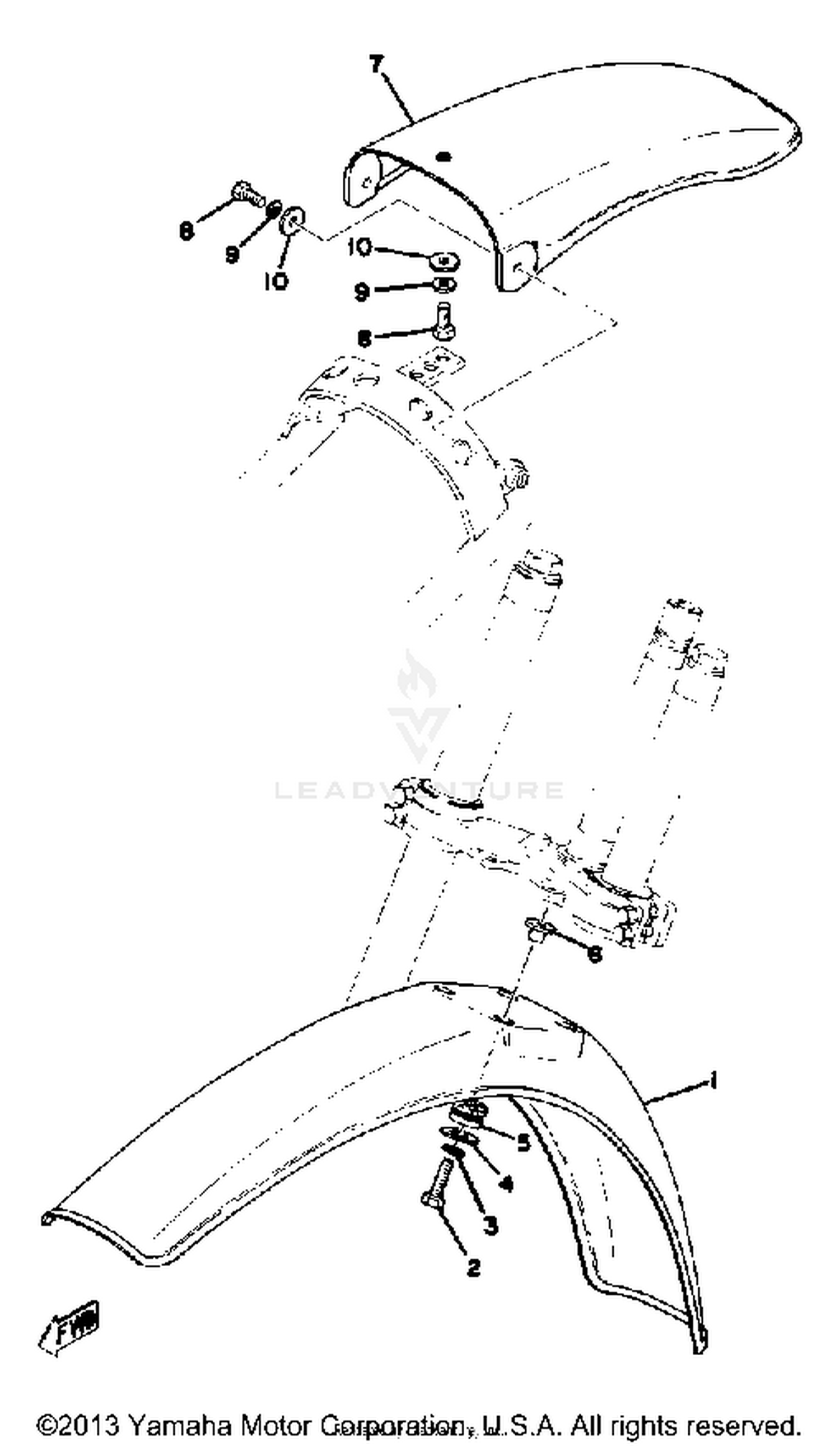

Front Fender - Rear Fender Yz100d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
453-21511-01-00
|
$35.99 | ||
|
Unavailable |
|||
|
#2
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-14198-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
537-21611-10-00
|
$25.60 | ||
|
Unavailable |
|||
|
#
FENDER, REAR
537-21611-00-00
|
$25.60 | ||
|
Unavailable |
|||
|
#8
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#10
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
