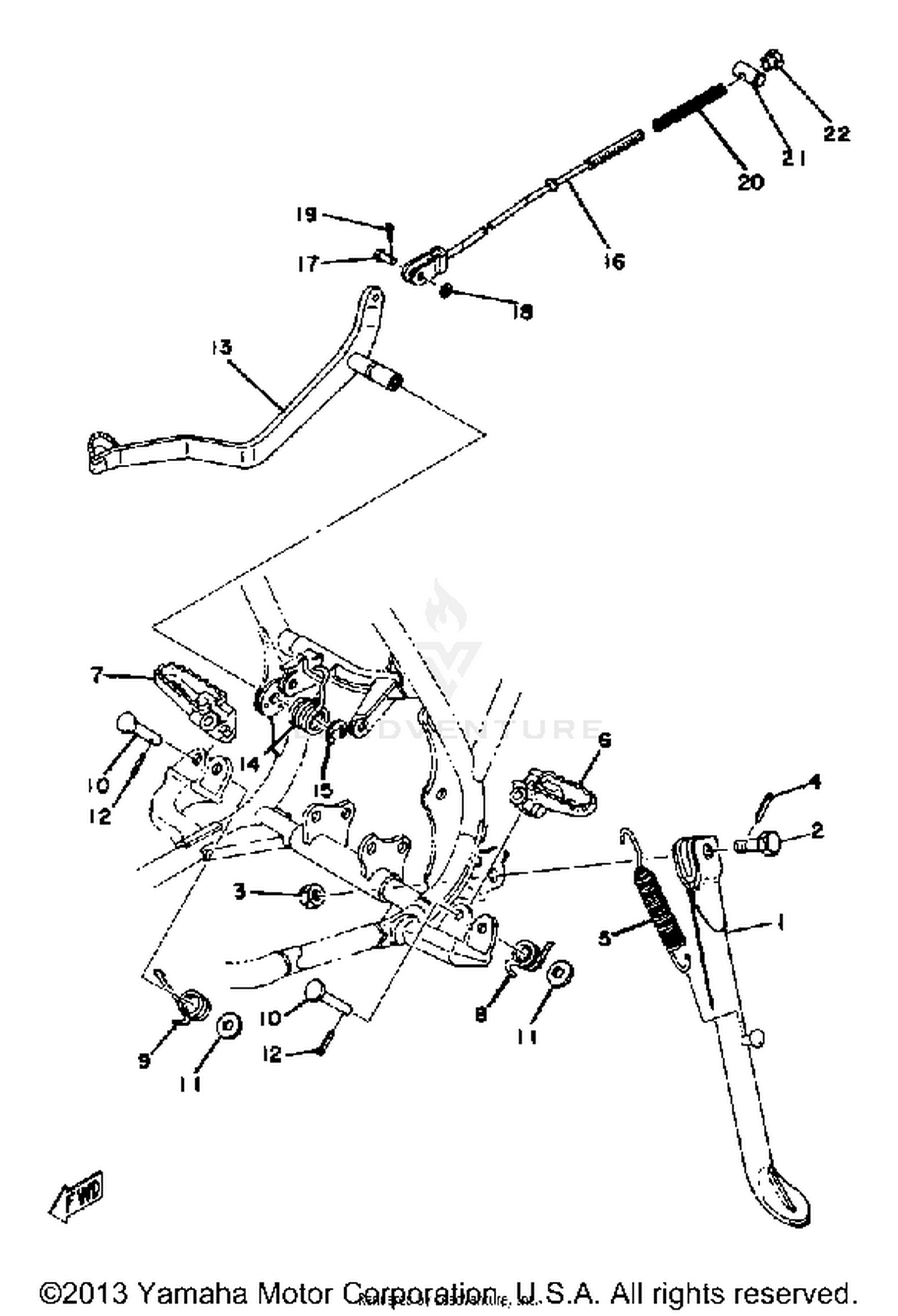

Stand - Footrest - Brake Pedal Yz100d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
1W1-27311-10-00
|
$63.99 | ||
|
Unavailable |
|||
|
#2
BOLT, WITH HOLE (278-27317-00)
90102-10006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, CASTLE
90171-10012-00
Superseded by 90171-10049-00
|
$2.90 | ||
|
Unavailable |
|||
|
#4
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90507-29008-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FOOTREST 1
1W1-27411-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
FOOTREST 2
565-27421-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#8
SPRING, TORSION
90508-18298-00
|
$1.88 | ||
|
Unavailable |
|||
|
#9
SPRING, TORSION
90508-18299-00
|
$1.49 | ||
|
Unavailable |
|||
|
#10
PIN
91701-08042-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
PEDAL, BRAKE
537-27211-02-33
|
$25.99 | ||
|
Unavailable |
|||
|
#14
SPRING, TORSION
90508-45290-00
|
$13.49 | ||
|
Unavailable |
|||
|
#15
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, BRAKE
537-27231-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#17
PIN, CLEVIS
90240-06006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#20
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
