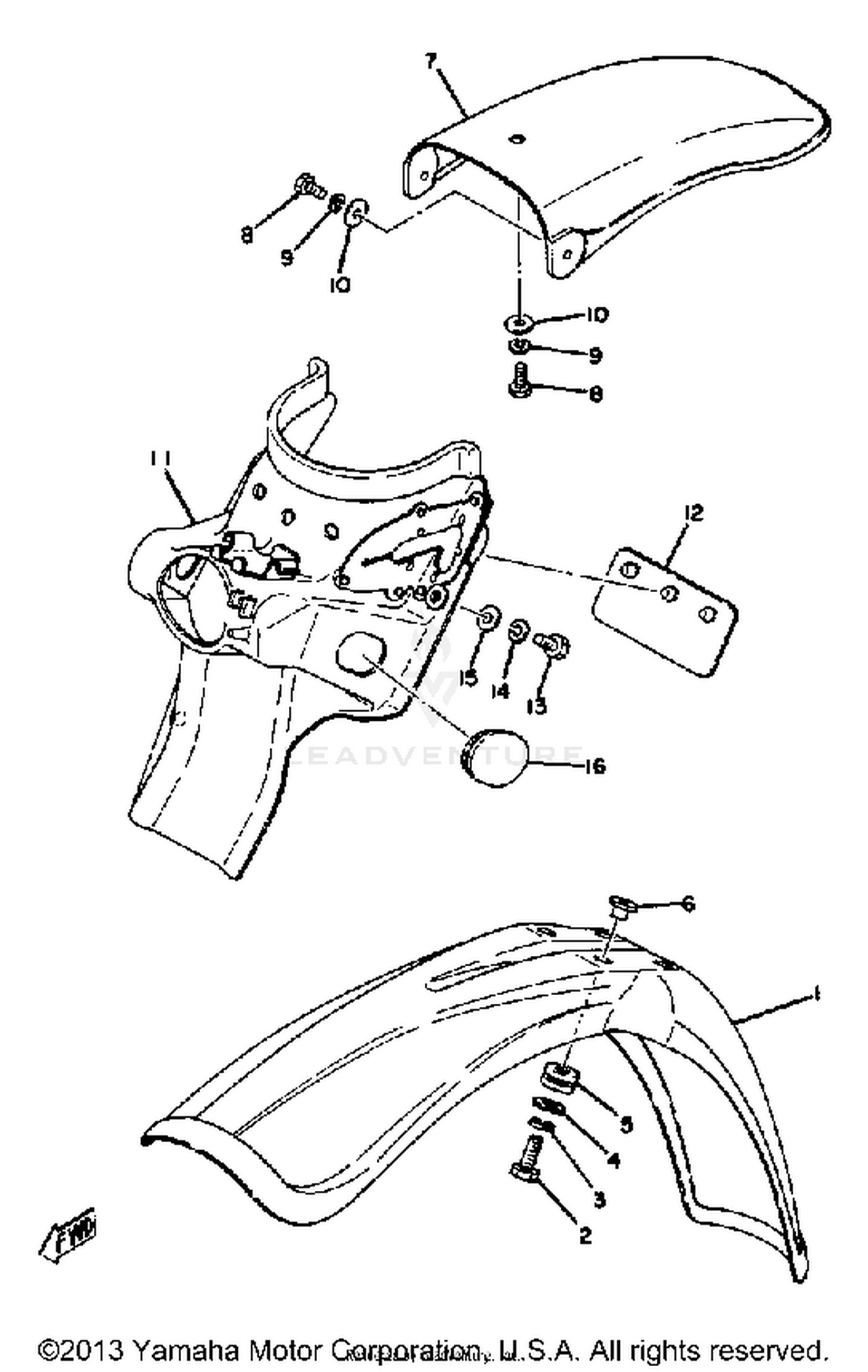

Front Fender - Rear Fender Yz100 E - F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5X6-21511-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-14198-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
2K5-21611-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#10
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#11
GUARD, MUD
2K5-21620-00-00
|
$27.22 | ||
|
Unavailable |
|||
|
#
GUARD, MUD
2W5-21620-00-00
|
$28.30 | ||
|
Unavailable |
|||
|
#12
FLAP
1M1-21621-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#15
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#16
GROMMET
90480-01230-00
|
$2.39 | ||
|
Unavailable |
|||
