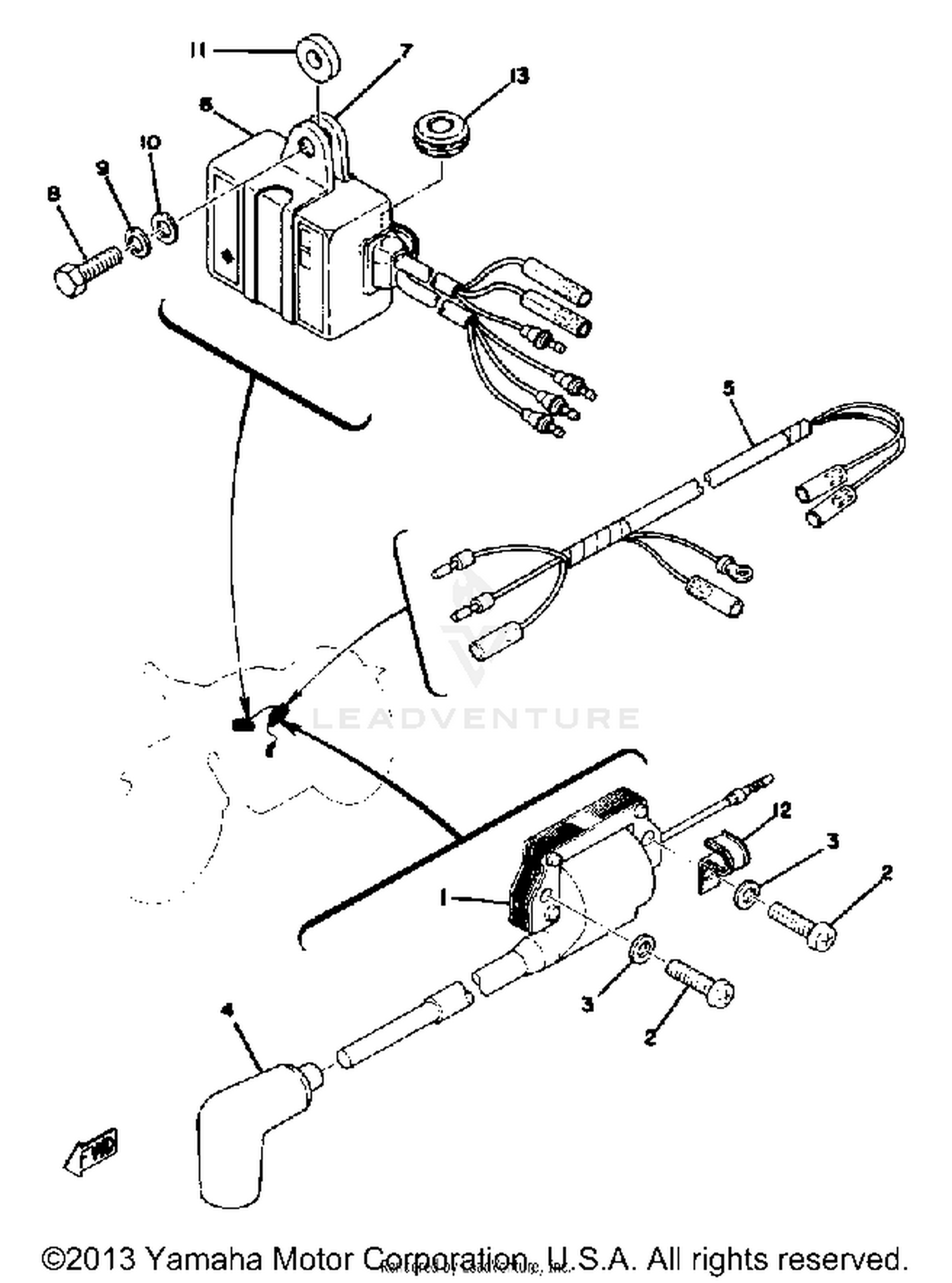

Electrical Yz100d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSEMBLY
1L8-82310-10-00
|
$113.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG CAP ASY
512-82370-10-00
Superseded by 7KA-82370-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLUG CAP ASSEMBLY
294-82370-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#5
WIRE HARNESS ASSEMBLY
1J4-82590-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#6
INACTIVE PART NUMBER (509-85540
3V3-85540-10-00
|
$208.99 | ||
|
Unavailable |
|||
|
#7
BRACKET
537-85542-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#8
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
90202-06094-00
|
$0.60 | ||
|
Unavailable |
|||
|
#12
CLAMP
90462-05005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-20170-00
|
$3.96 | ||
|
Unavailable |
|||
