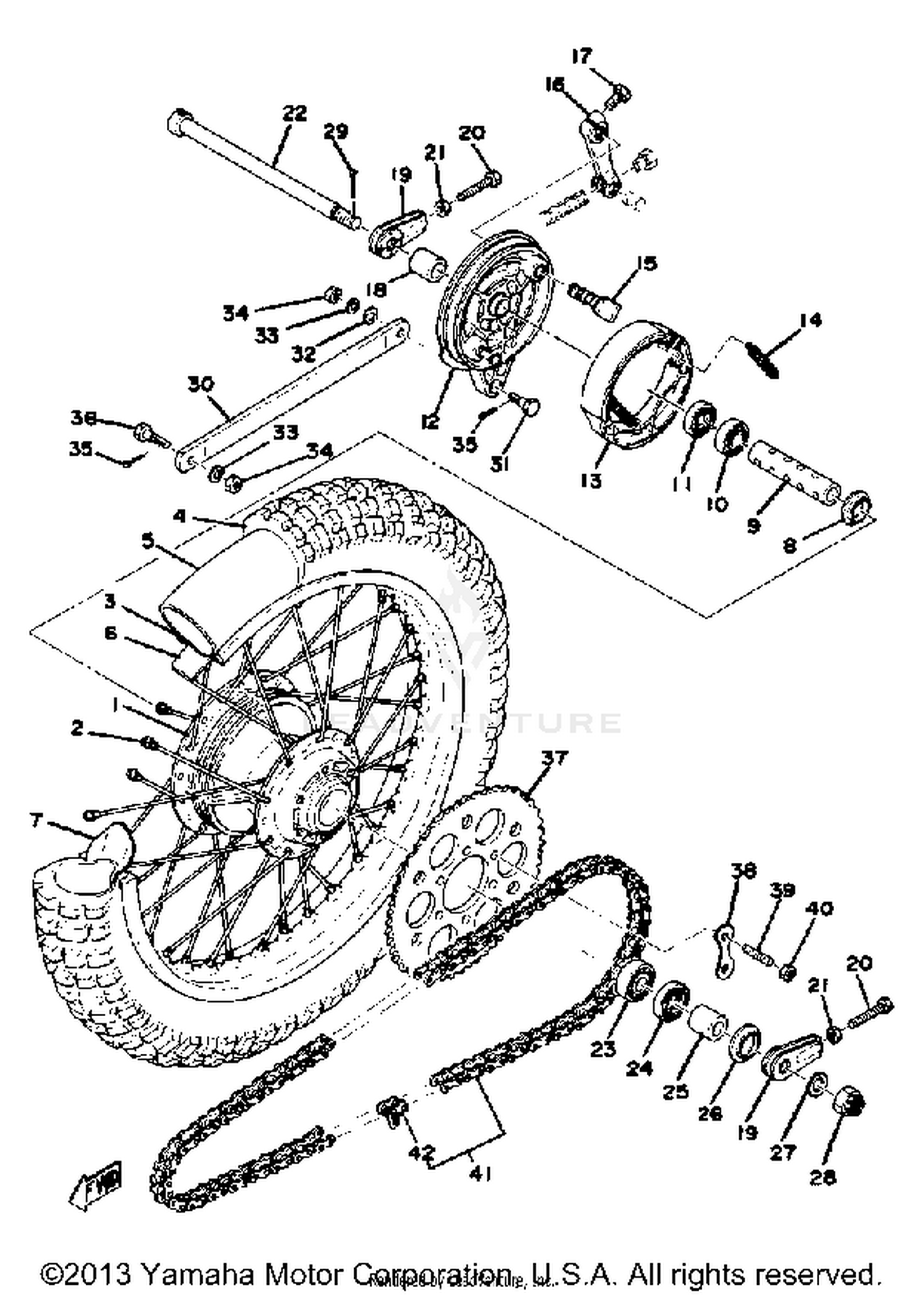

Rear Wheel Yz100d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
1G8-25311-00-98
|
$94.60 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
537-25304-01-00
|
$131.99 | ||
|
Unavailable |
|||
|
#3
RIM 1.85X18
94418-18245-00
|
$274.99 | ||
|
Unavailable |
|||
|
#4
CS 350X18 C-755-1
94135-18551-00
|
$46.99 | ||
|
Unavailable |
|||
|
#5
TUBE (2.75-18)
94235-18085-00
Superseded by 94232-18113-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEAD
2X3-25394-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#8
FLANGE, SPACER
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER
90560-15312-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20204-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRAKE SHOE PLATE ASSEMBLYASSY (
437-25026-10-35
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRAKE SHOE SET
183-W2536-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#14
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER, CAMSHAFT
214-25355-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-15524-00
|
$6.99 | ||
|
Unavailable |
|||
|
#19
PULLER, CHAIN 1
537-25388-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#20
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
AXLE, WHEEL
537-25381-01-00
|
$18.44 | ||
|
Unavailable |
|||
|
#23
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-15523-00
|
$5.48 | ||
|
Unavailable |
|||
|
#26
COVER, HUB DUST
401-25367-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-15238-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAR, TENSION
537-25371-00-00
|
$22.86 | ||
|
Unavailable |
|||
|
#31
BOLT
90109-08406-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#35
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
90109-08063-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPROCKET, DRIVEN 44T
1G8-25444-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 38T
1J4-25438-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 38T
1J4-25438-00-XX
|
$51.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 40T
1J4-25440-01-XX
|
$46.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 42T
1J4-25442-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 42T
1J4-25442-00-XX
|
$47.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 46T (SPECIAL X
1G8-25446-01-XX
|
$86.99 | ||
|
Unavailable |
|||
|
#38
WASHER
1G8-25412-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, STUD
90116-10221-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#41
CHAIN 520TR-94L (DK520TR-94L)
94585-20094-00
|
$67.99 | ||
|
Unavailable |
|||
|
#
DRIVE CHAIN 520-90L
94585-20090-00
|
$53.99 | ||
|
Unavailable |
|||
|
#42
JOINT CHAIN
94680-11001-00
|
$8.49 | ||
|
Unavailable |
|||
