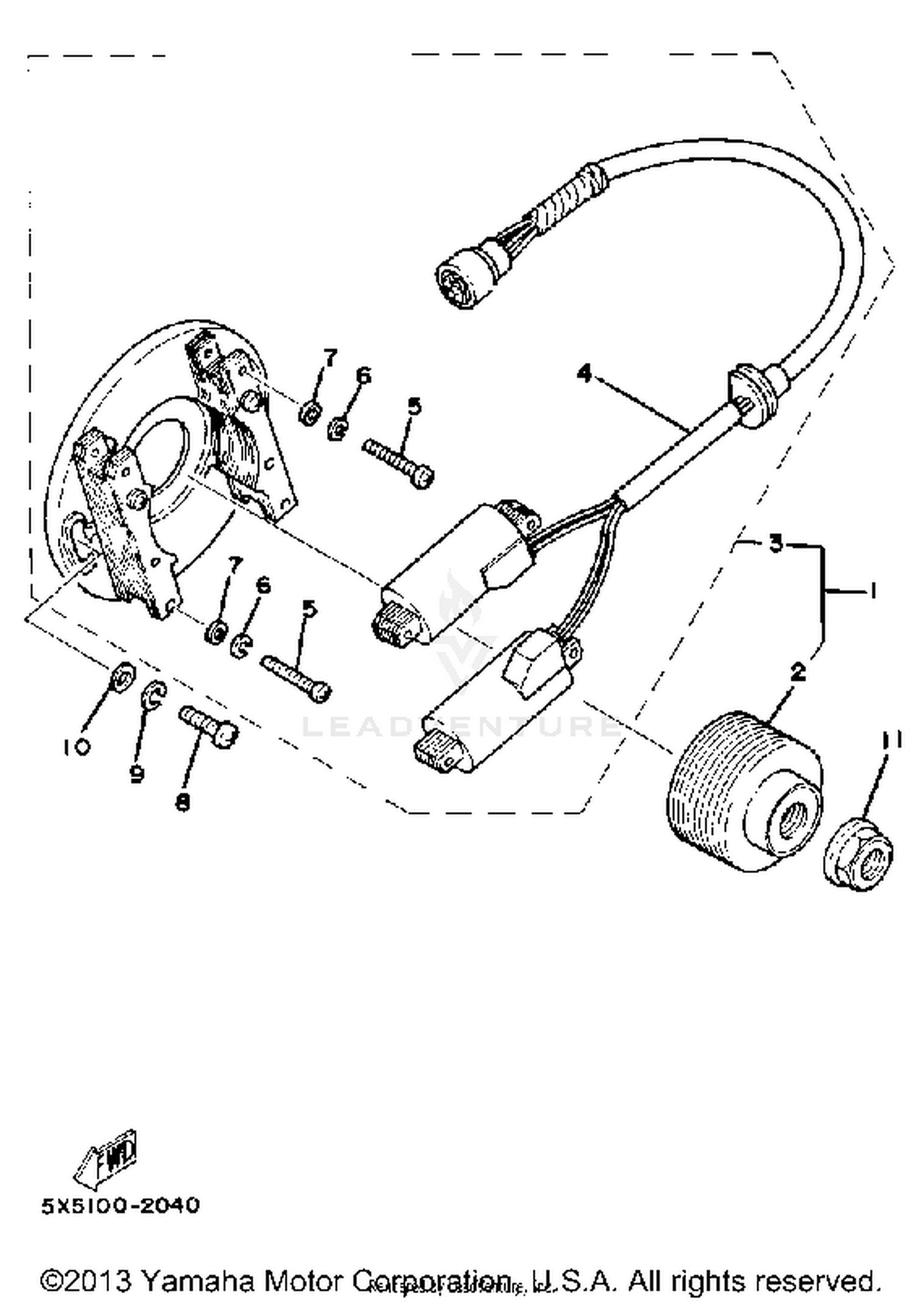

C - D - I - Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI MAGNETO ASSEMBLY
5X5-85500-10-00
|
$363.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
5X5-85550-10-00
|
$152.99 | ||
|
Unavailable |
|||
|
#3
STATOR ASSEMBLY
5X5-85510-10-00
|
$159.99 | ||
|
Unavailable |
|||
|
#4
COIL, CHARGE
5X5-85520-10-00
|
$108.99 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98580-05020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPECL SHAPE
90179-10257-00
|
$9.49 | ||
|
Unavailable |
|||
