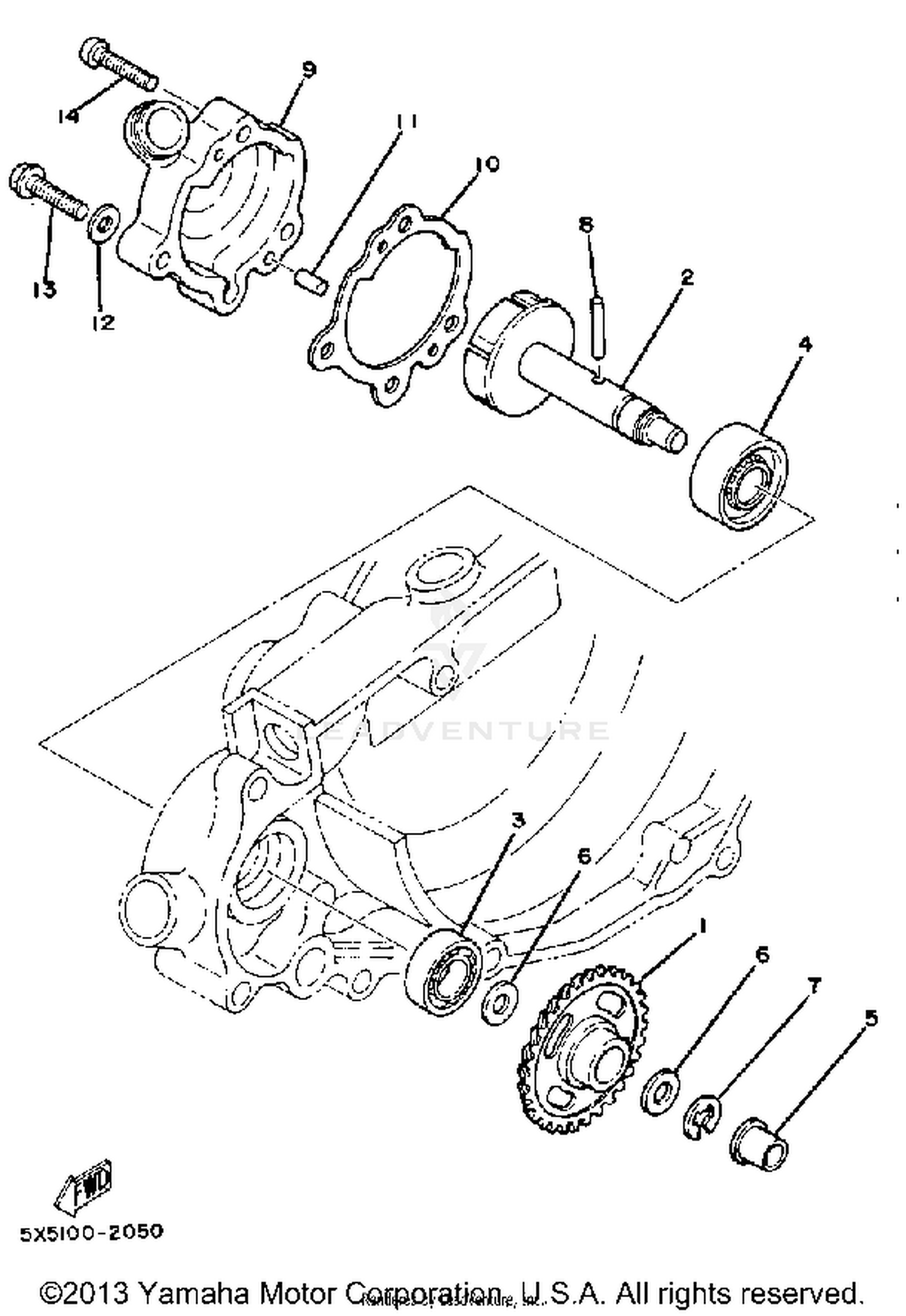

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IMPELLER SHAF (31T)
5X5-12459-00-00
|
$42.12 | ||
|
Unavailable |
|||
|
#2
IMPELLER SHAFT ASSEMBLY
5X5-12450-00-00
|
$34.34 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-00105-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93103-12119-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, SOLID
90381-08002-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-12164-00
Superseded by 90201-127J6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99001-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
93603-22028-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HOUSING
5X5-12422-00-00
|
$73.14 | ||
|
Unavailable |
|||
|
#10
GASKET,HSNG CVR 2
5X5-12428-00-00
Superseded by 5X5-12428-01-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-06166-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95816-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
