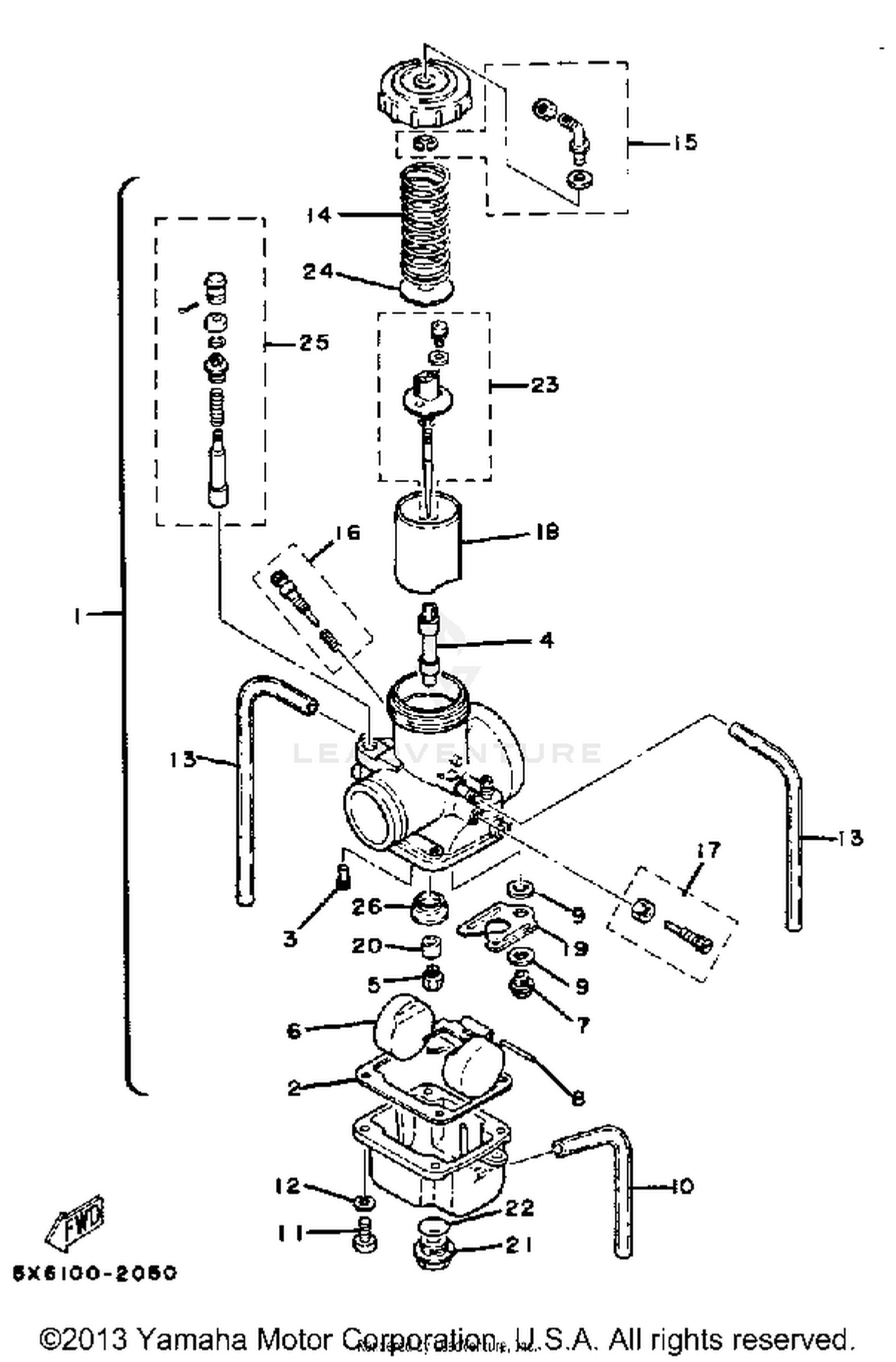

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
5X5-14101-00-00
|
$351.99 | ||
|
Unavailable |
|||
|
#2
GASKET, FLOAT CHAMBER
363-14184-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, PILOT (#45)
193-14142-45-A1
|
$6.99 | ||
|
Unavailable |
|||
|
#4
NOZZLE, MAIN (Q-0)
510-14141-50-00
|
$37.67 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (360)
137-14143-72-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (370)
137-14143-74-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (380)
137-14143-76-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLOAT
2N7-14185-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE VALVE SET
23X-14107-35-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, NEEDLE VALVE
239-14195-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE
3Y3-14196-00-00
Superseded by 88R-14987-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
310-14197-00-00
Superseded by 89A-14987-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, THROTTLE VALVE
431-14131-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#15
ADJUSTER SET
3R4-W1415-00-00
|
$18.22 | ||
|
Unavailable |
|||
|
#16
AIR SCREW SET
23X-14104-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
THROTTLE SCREW SET
2A0-W1411-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#18
VALVE, THROTTLE 1
2X8-14112-30-00
|
$135.99 | ||
|
Unavailable |
|||
|
#19
PLATE
3R4-14146-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#20
SETTER, NEEDLE JET
509-14145-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#21
PLUG, SCREW
510-14115-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#22
O-RING
558-14147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NEEDLE SET
239-W1418-01-00
|
$23.26 | ||
|
Unavailable |
|||
|
#24
SEAT, SPRING
509-14136-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#25
STARTER PLNGR SET
737-W1414-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#26
WASHER, MAIN JET
5X5-14153-00-00
|
$30.99 | ||
|
Unavailable |
|||
