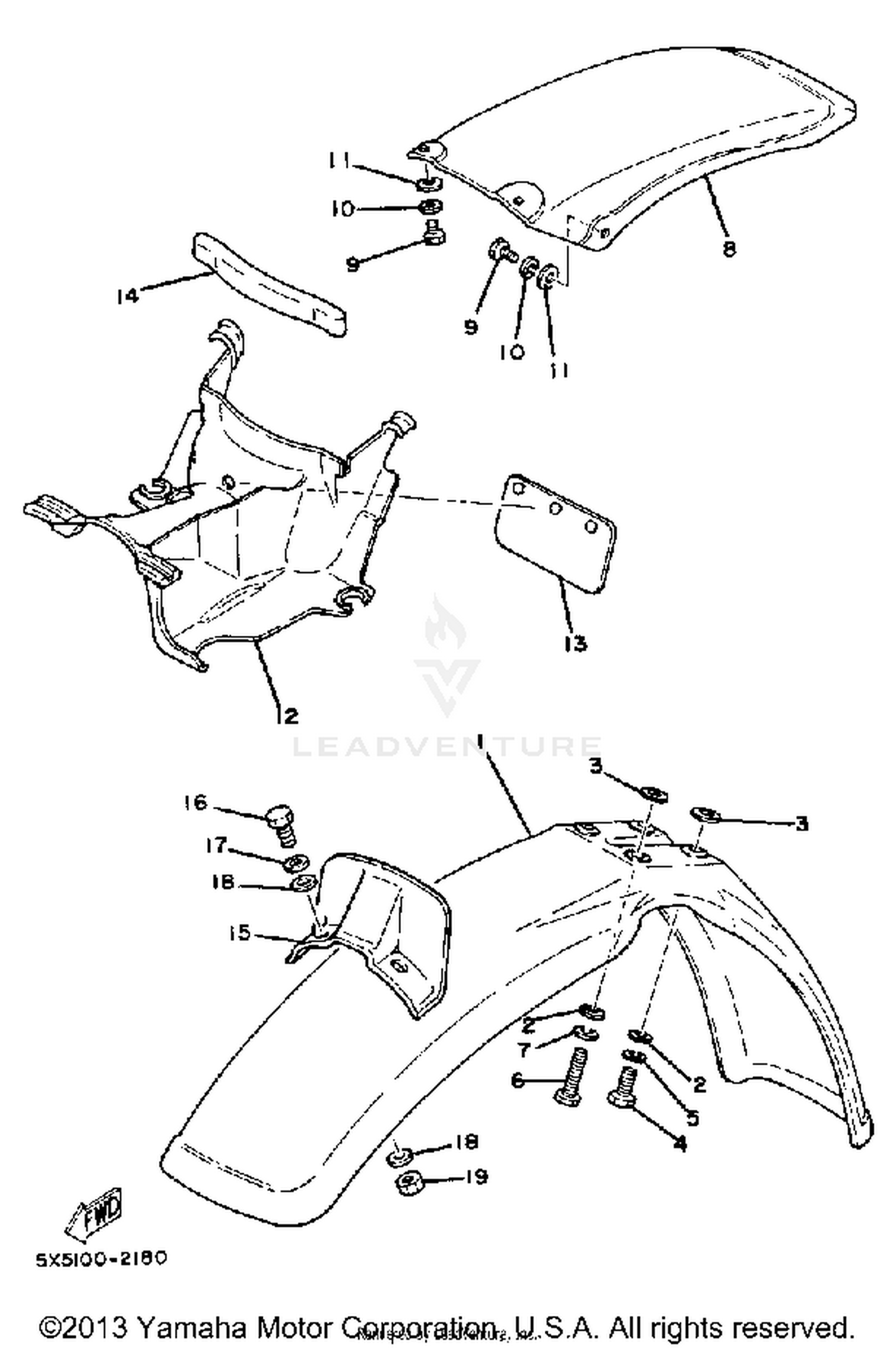

Front Fender - Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5X6-21511-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
90209-06187-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON
97013-06035-00
Superseded by 97014-06035-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#8
FENDER, REAR
3R4-21611-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Unavailable |
|||
|
#12
GUARD, MUD
5X6-21629-01-00
|
$35.99 | ||
|
Unavailable |
|||
|
#13
FLAP
1M1-21621-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
565-21746-00-00
|
$13.72 | ||
|
Unavailable |
|||
|
#15
PLATE 1
4V2-21543-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#16
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
