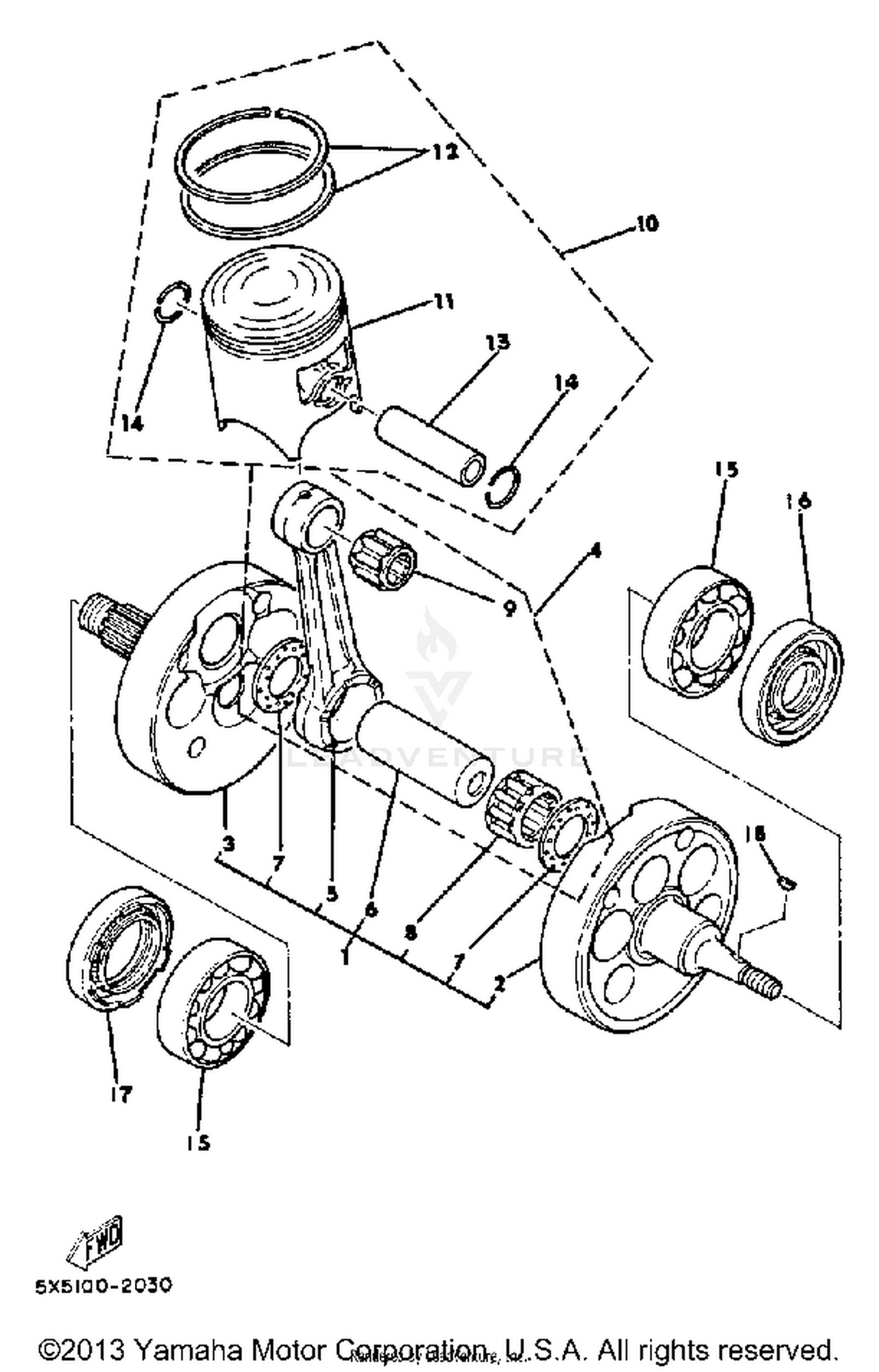

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
5X5-11400-00-00
|
$326.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
3R4-11412-00-00
|
$237.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
5X5-11422-00-00
|
$125.99 | ||
|
Unavailable |
|||
|
#4
CONNECTING ROD ASSEMBLYASSY
5X5-11650-00-00
|
$302.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, CONNECTING
5X5-11651-00-00
Superseded by 5X5-11651-03-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CRANK 1
2X4-11681-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, (90209-25220)
90209-25085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CYLINDRICAL
93310-425N4-00
Superseded by 93310-425P2-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CYLINDRICAL
93310-418E9-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON KIT STD (STD)
5X5-11630-00-00
|
$86.94 | ||
|
Unavailable |
|||
|
#11
PISTON STD (STD)
5X5-11631-00-94
|
$100.99 | ||
|
Unavailable |
|||
|
#12
PISTON RINGSET STD (STD)
5X5-11601-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#13
PIN, PISTON
214-11633-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93450-19052-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-20627-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (38W)
93103-30150-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93103-40091-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON KIT 1ST (1ST O/S)
5X5-11630-10-00
|
$112.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND (2ND O/S)
5X5-11630-20-00
|
$112.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 3RD (3RD O/S)
5X5-11630-30-00
|
$117.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00 (4TH O/S 1.00
5X5-11638-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25 (1ST O/S 0.25
5X5-11635-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50 (2ND O/S 0.50
5X5-11636-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75 (3RD O/S 0.75
5X5-11637-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST (1ST O/S)
5X5-11601-10-00
|
$45.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND (2ND O/S)
5X5-11601-20-00
|
$114.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD (3RD O/S)
5X5-11601-30-00
|
$62.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH (4TH O/S)
5X5-11601-40-00
|
$62.99 | ||
|
Unavailable |
|||
