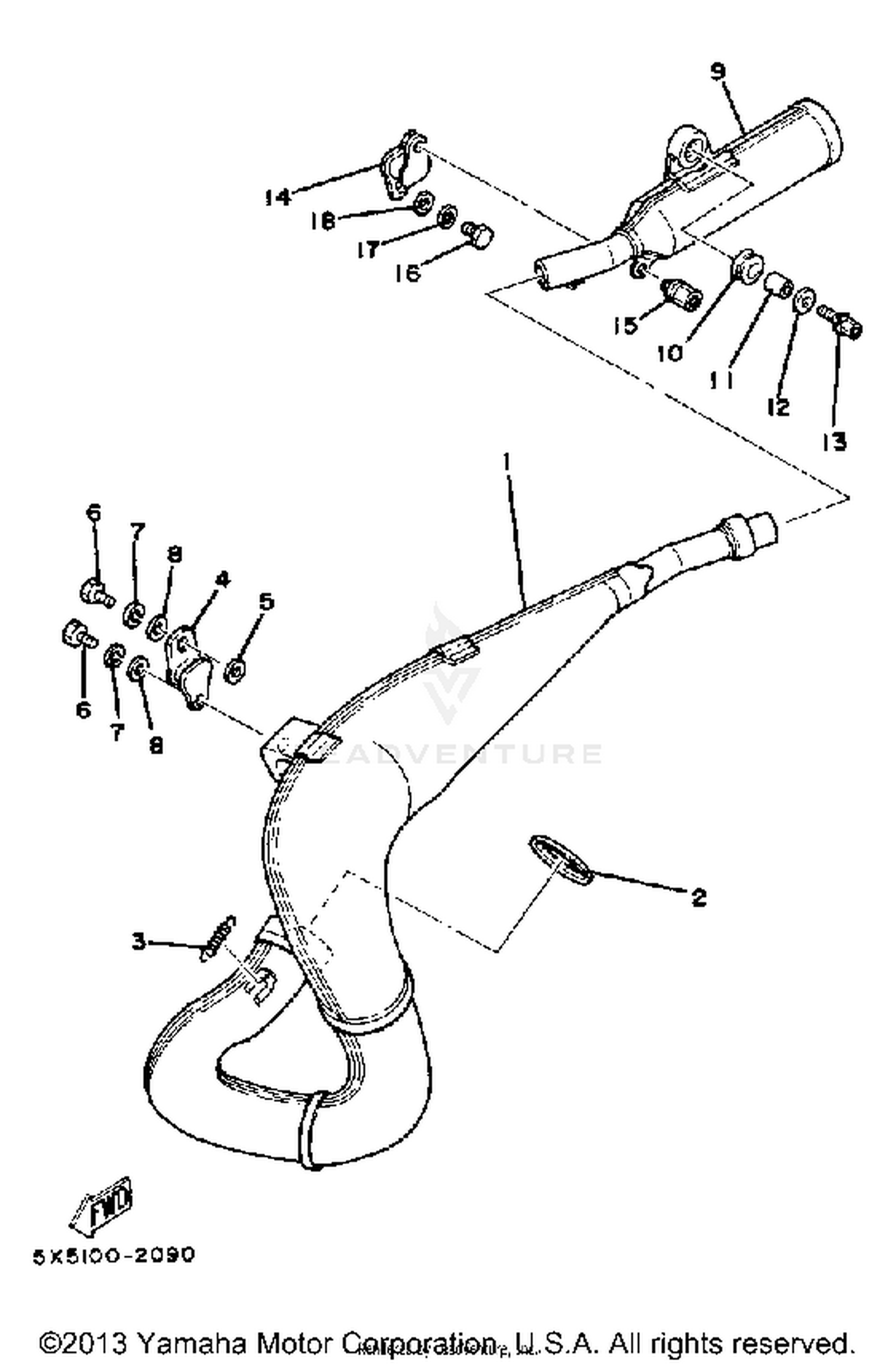

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
5X5-14610-00-00
|
$321.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
3R4-14613-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TENSION
90507-20030-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, MUFFLER 2
3R4-14781-03-00
Superseded by 3R4-14781-04-00
|
$33.99 | ||
|
Unavailable |
|||
|
#5
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
SILENCER, EXHAUST
5X5-14753-10-00
|
$118.99 | ||
|
Unavailable |
|||
|
#10
DAMPER, MUFFLER
565-14747-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-08258-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-085E6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-08512-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, MUFFLER 1
565-14771-00-00
Superseded by 565-14771-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#15
BOLT
90109-06551-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
