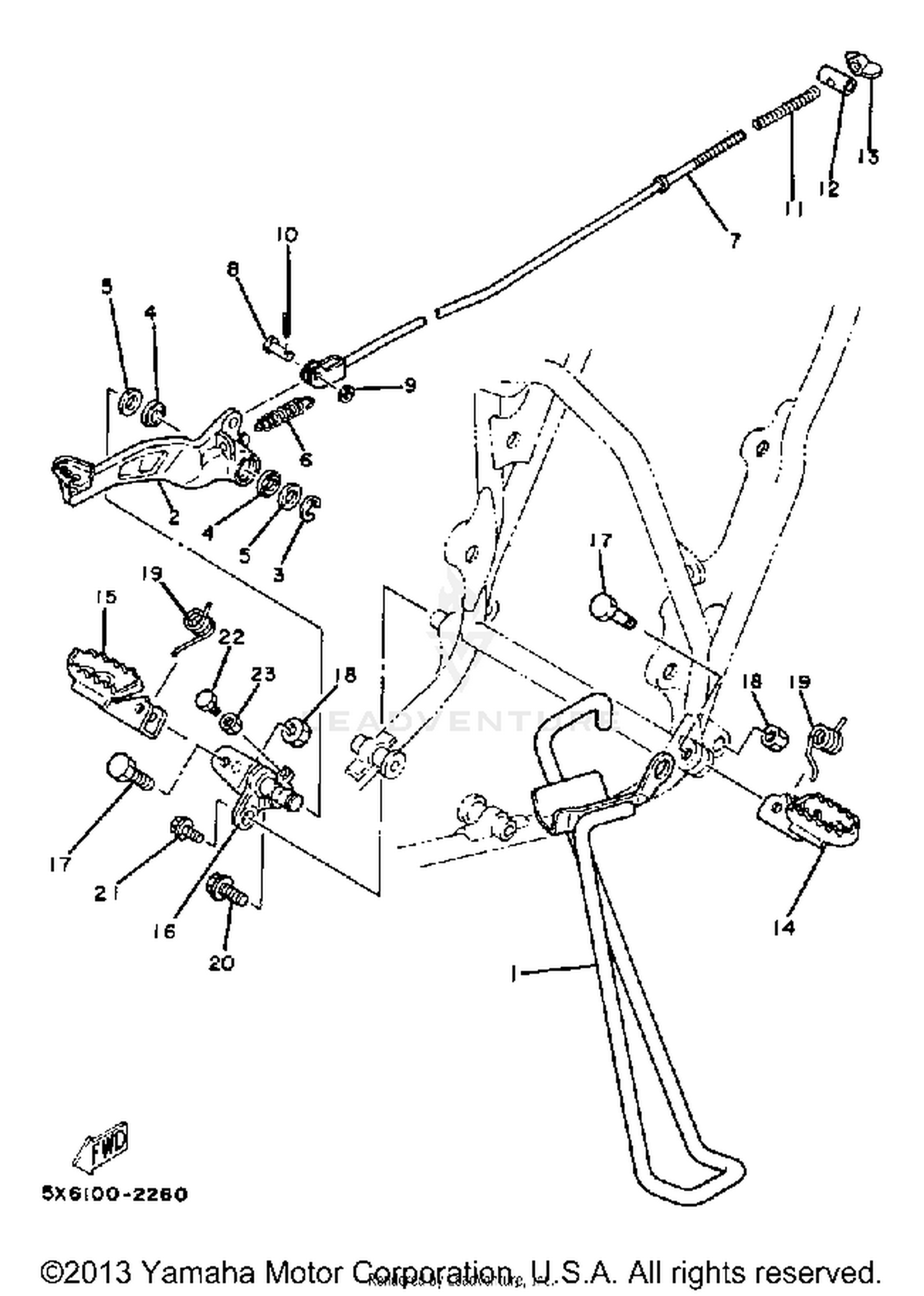

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
5X6-27311-01-00
|
$70.99 | ||
|
Unavailable |
|||
|
#2
PEDAL, BRAKE
4V4-27200-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#3
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93109-14021-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-14411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-20192-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, BRAKE
5X5-27231-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#8
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FOOTREST 1
5X6-27411-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#15
FOOTREST 2
5X6-27421-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#16
BRACKET, FOOTREST 2
5X6-27422-00-00
|
$34.82 | ||
|
Unavailable |
|||
|
#17
BOLT
90101-08428-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, WASHER BASED
90105-12096-00
|
$3.15 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95811-10020-00
Superseded by 95817-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
