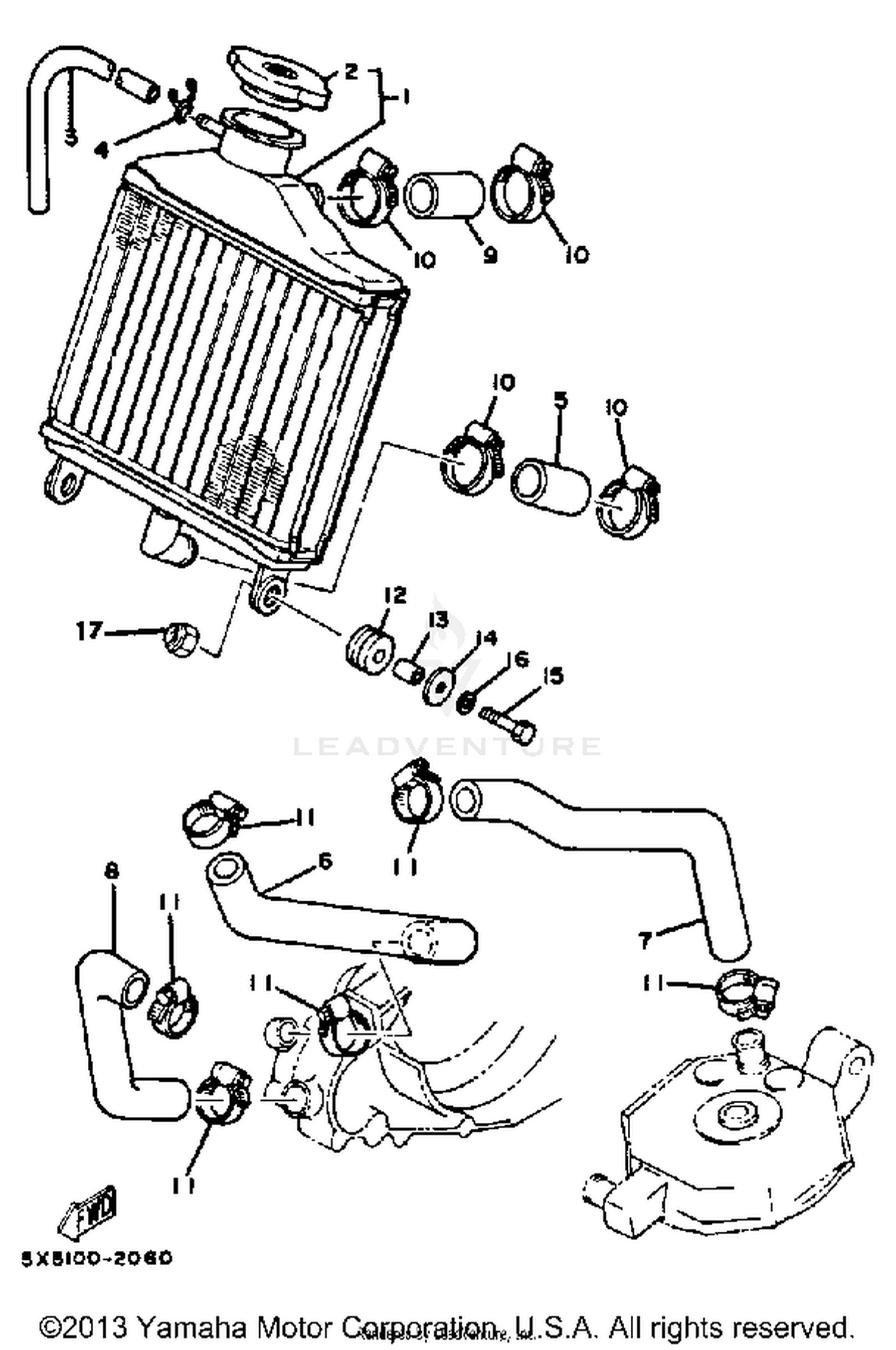

Radiator - Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSEMBLY
5X5-12460-00-00
|
$517.99 | ||
|
Unavailable |
|||
|
#2
CAP, RADIATOR
11H-12462-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE
90446-09181-00
|
$4.18 | ||
|
Unavailable |
|||
|
#4
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE 1
4V2-12481-00-00
|
$9.20 | ||
|
Unavailable |
|||
|
#6
PIPE 2
5X5-12482-00-00
|
$13.58 | ||
|
Unavailable |
|||
|
#7
PIPE 3
5X5-12483-00-00
|
$19.92 | ||
|
Unavailable |
|||
|
#8
PIPE 4
5X5-12484-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#9
PIPE 4
4V2-12484-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#10
CLAMP, HOSE
90460-20190-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE CLAMP ASSY
90460-16192-00
Superseded by 90450-28073-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-15064-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-074W0-00
Superseded by 90387-061V1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06570-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U FLANGE
95601-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
