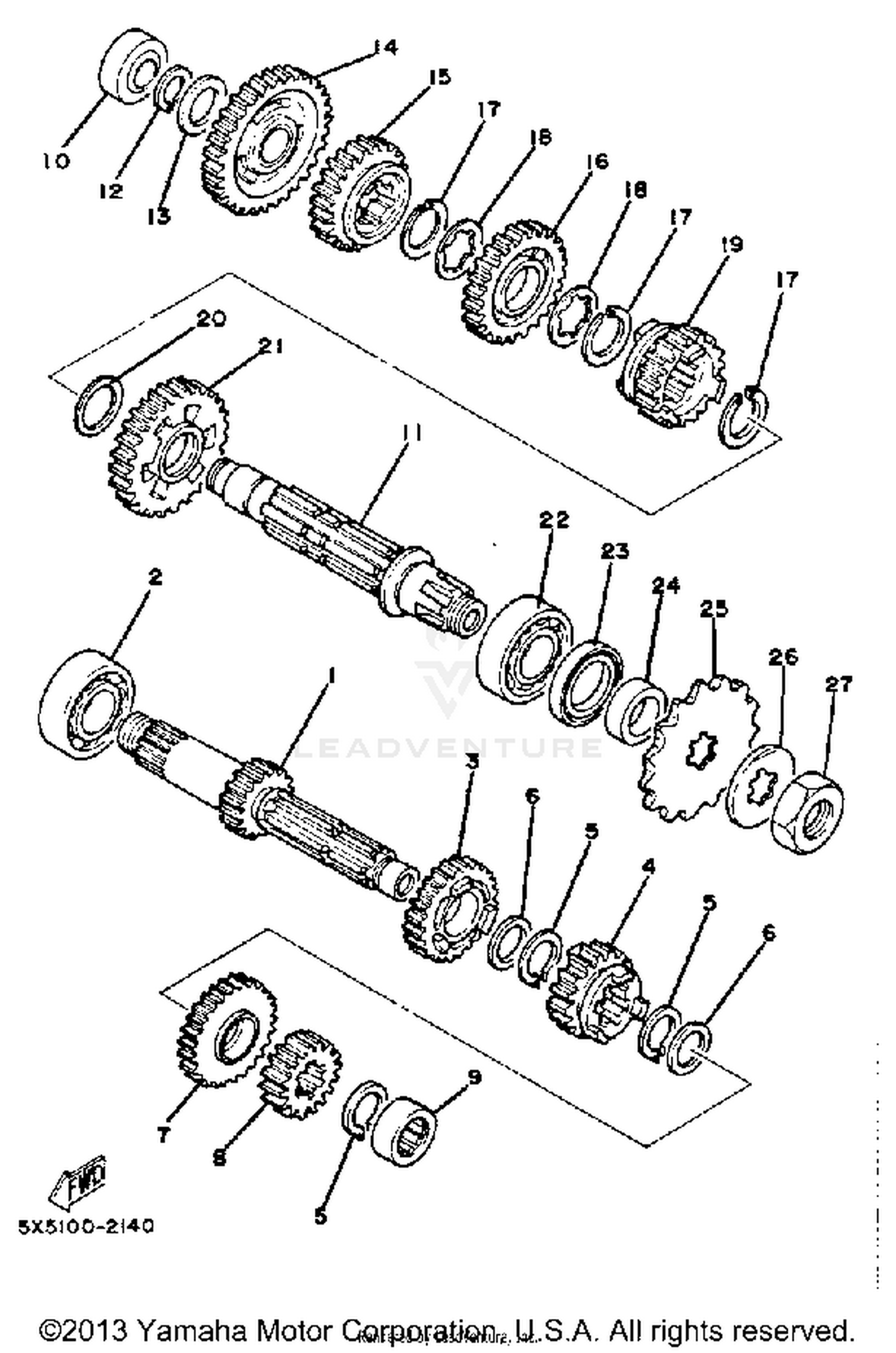

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (14T)
5X5-17411-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-20540-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 4TH PINION
5X5-17141-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#4
GEAR, 3RD PINION
5X5-17131-00-00
Superseded by 2HH-17131-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#5
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 5TH PINION
5X5-17151-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION (16T)
5X5-17121-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#9
BEARING, CYLINDER 11
93311-41734-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, CYLINDRICAL
93311-62035-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
AXLE, DRIVE
5X5-17421-00-00
|
$230.51 | ||
|
Unavailable |
|||
|
#12
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 1ST WHEEL (30T)
5X5-17211-00-00
|
$95.86 | ||
|
Unavailable |
|||
|
#15
GEAR, 4TH WHEEL
5X5-17241-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#16
GEAR, 3RD WHEEL
5X5-17231-00-00
Superseded by 5X5-17231-01-00
|
$80.99 | ||
|
Unavailable |
|||
|
#17
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (T=0.5)
90209-22082-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 5TH WHEEL
5X5-17251-00-00
|
$120.99 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 2ND WHEEL (29T)
5X5-17221-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#22
BEARING (B6205C4)
93306-20552-00
Superseded by 93306-20529-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93102-32M07-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-25663-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPROCKET, DRIVE
93834-15078-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
93834-14051-00
|
$15.65 | ||
|
Unavailable |
|||
|
#
SPROCKET,DRIVE 13T
93834-13030-00
Superseded by 93834-13206-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, LOCK
90215-21239-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
90179-20255-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
