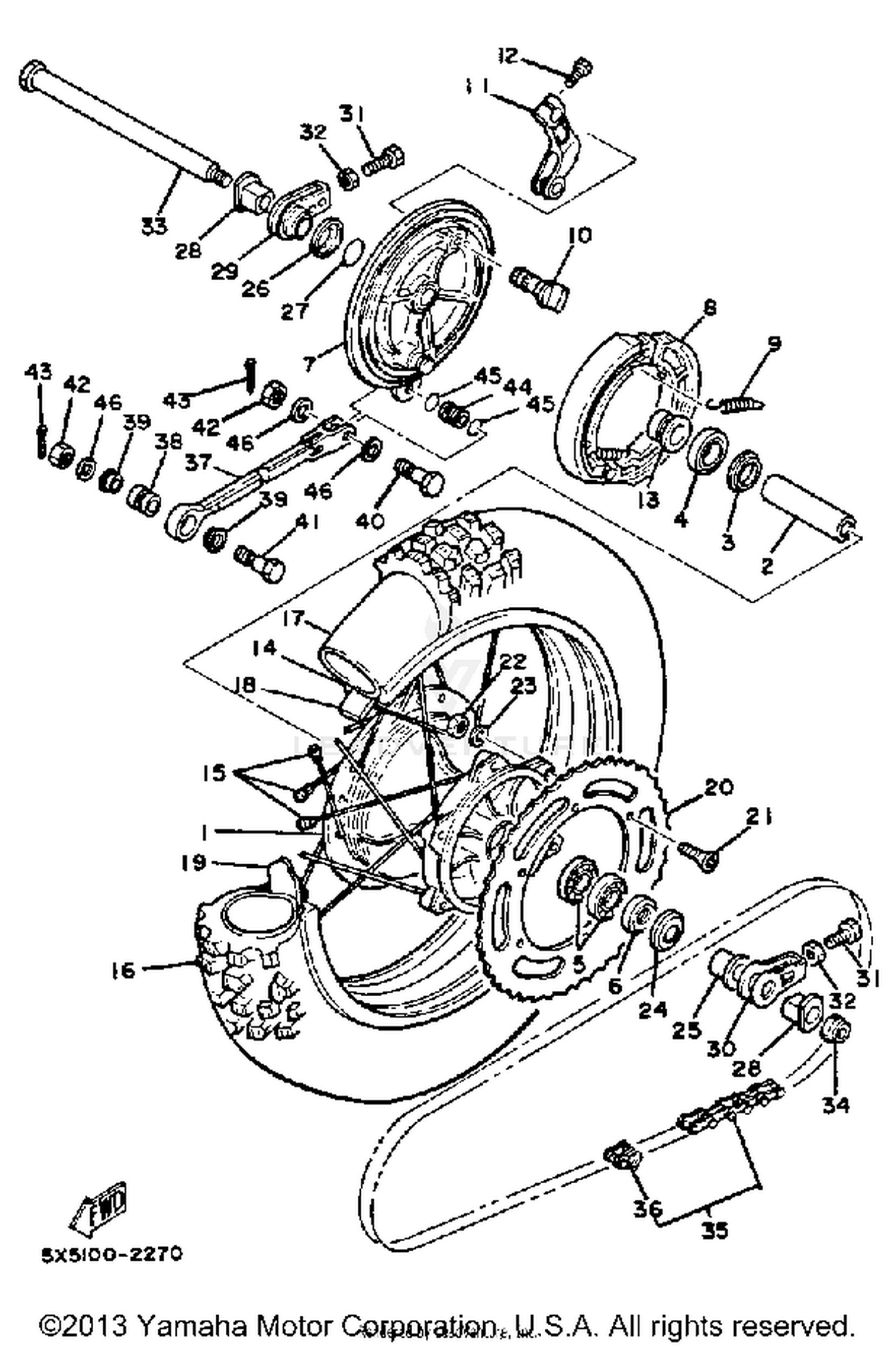

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
5X5-25311-00-98
|
$238.99 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
90560-20310-00
|
$5.49 | ||
|
Unavailable |
|||
|
#3
FLANGE, SPACER
4V4-25315-00-00
|
$3.10 | ||
|
Unavailable |
|||
|
#4
BEARING
93306-00418-00
Superseded by 93306-00444-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-00406-00
Superseded by 93306-00438-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93102-28022-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, BRAKE SHOE
5X5-25321-00-98
|
$166.99 | ||
|
Unavailable |
|||
|
#8
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#9
SPRING, TENSION
90506-17328-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAMSHAFT
401-25351-00-00
Superseded by 26A-25351-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#11
LEVER, CAMSHAFT
5X4-25355-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#12
BOLT
90101-06291-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-204F5-00
|
$10.79 | ||
|
Unavailable |
|||
|
#14
RIM 2.15X18 (2.15-18)
94421-18319-00
|
$240.99 | ||
|
Unavailable |
|||
|
#15
SPOKE SET, REAR
5X5-25304-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#16
150/80-18 M2A (TT) (94151-18684
94115-186A2-00
|
$191.99 | ||
|
Unavailable |
|||
|
#17
TUBE
94245-18125-00
|
$17.49 | ||
|
Unavailable |
|||
|
#18
BAND, RIM (2.50-18)
94345-18081-00
Superseded by 94340-18086-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER, BEAD
2X5-25394-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#20
SPROCKET, DRIVEN 48T
3R4-25448-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 50T
3R4-25450-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 52T
3R4-25452-01-XX
|
$51.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (45T) (39W-254
3R4-25445-01-XX
|
$70.99 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX SKT HEAD
90110-08038-00
|
$4.05 | ||
|
Unavailable |
|||
|
#22
NUT, SELF-LOCKING
90185-08089-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-081A6-00
Superseded by 90201-086P8-00
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, HUB DUST
4V4-25367-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-206F6-00
|
$9.55 | ||
|
Unavailable |
|||
|
#26
COVER, PLATE
5X5-25327-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#27
O-RING
93210-31114-00
Superseded by 93210-31MJ5-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
BUSH, SOLID
90381-20039-00
|
$16.49 | ||
|
Unavailable |
|||
|
#29
PULLER, CHAIN 2
5X5-25389-00-00
|
$32.12 | ||
|
Unavailable |
|||
|
#30
PULLER, CHAIN 1
5X6-25388-00-00
|
$11.96 | ||
|
Unavailable |
|||
|
#31
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#33
AXLE, WHEEL
4V4-25381-01-00
|
$62.99 | ||
|
Unavailable |
|||
|
#34
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
520 DS 110L
94585-20110-00
|
$76.99 | ||
|
Unavailable |
|||
|
#36
JOINT,CHAIN (DID 520DM-RJ)
94685-20001-00
Superseded by 94681-68001-00
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#37
BAR, TENSION
5X5-25371-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#38
BEARING, SPECIAL
93399-99906-00
|
$36.99 | ||
|
Unavailable |
|||
|
#39
OIL SEAL, OSO-TYPE
93108-23009-00
|
$5.44 | ||
|
Unavailable |
|||
|
#40
BOLT
90109-08370-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
BOLT, WITH HOLE
90102-08034-00
|
$3.35 | ||
|
Unavailable |
|||
|
#42
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
COLLAR
90387-083F0-00
|
$8.99 | ||
|
Unavailable |
|||
|
#45
O-RING
93210-14167-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
