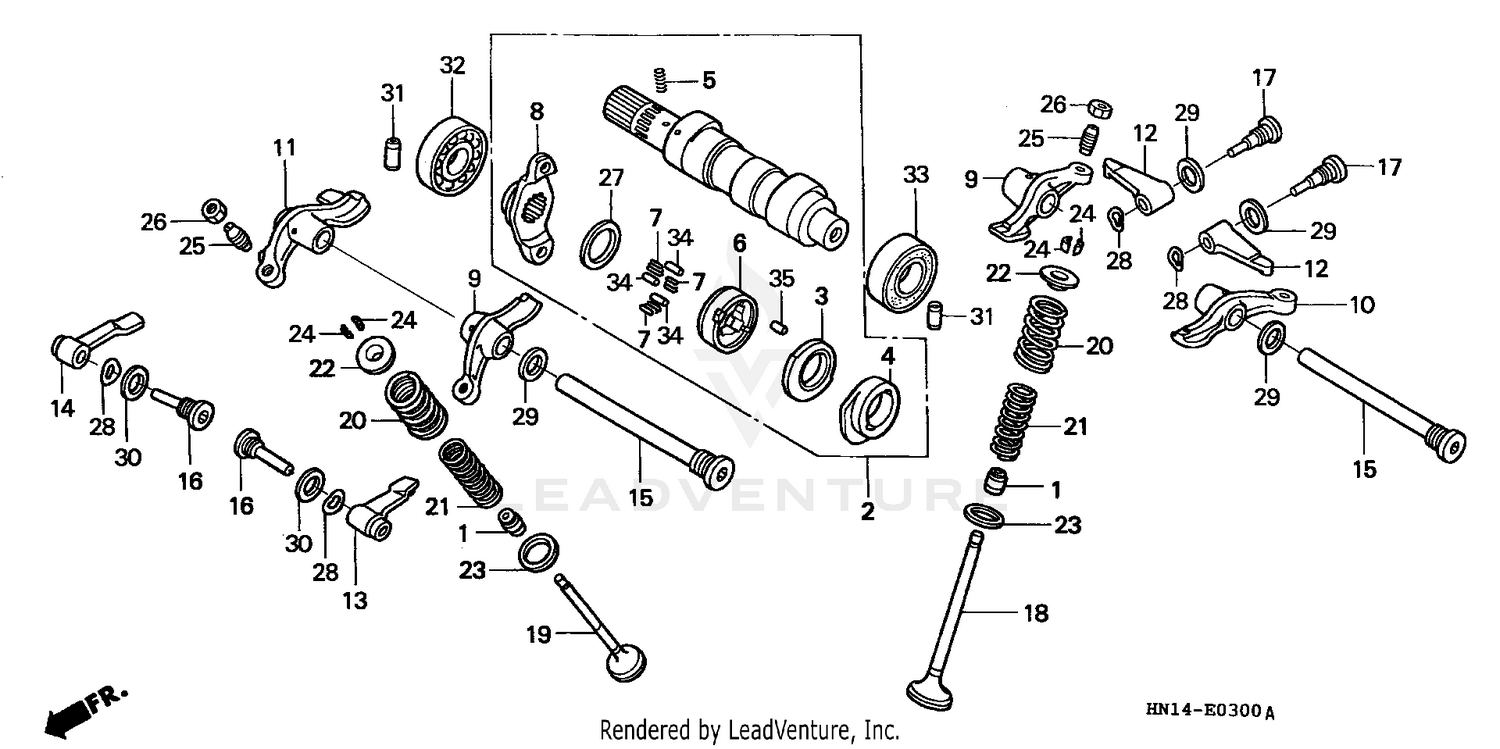

Camshaft + Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL, VALVE STEM (NOK)
12209-KL4-005
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT ASSY.
14000-HN1-000
|
$278.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAM, REVERSE
14102-MN1-670
|
$72.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, DECOMPRESSION CAM
14105-KCY-670
|
$64.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, DECOMPRESSION
14106-MN1-670
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLUTCH, DECOMPRESSION (OUTER)
14121-KAS-900
|
$79.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, ROLLER
14122-KV2-940
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, CAM SPROCKET
14325-KV2-942
|
$44.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM A, ROCKER
14411-KCY-670
|
$60.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM B, ROCKER
14421-KCY-670
|
$60.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
ARM C, ROCKER
14431-KCY-670
|
$60.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM, IN. VALVE SUB-ROCKER
14445-KF0-000
|
$36.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM, L. EX. VALVE SUB-ROCKER
14446-KF0-000
|
$38.63 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM, R. EX. VALVE SUB-ROCKER
14447-KF0-000
|
$38.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, ROCKER ARM SHAFT
14451-KCY-670
Superseded by 14451-MBV-000
|
$34.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, ROCKER ARM SHAFT
14451-MBV-000
|
$34.69 | ||
|
Unavailable |
|||
|
#16
SHAFT A, SUB-ROCKER ARM
14455-KCY-670
|
$29.77 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT B, SUB-ROCKER ARM
14456-KCY-670
|
$44.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE, IN.
14711-KCY-670
|
$38.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE, EX.
14721-KCY-670
|
$72.21 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, VALVE (OUTER)
14751-KCY-670
|
$12.72 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, VALVE (INNER)
14761-KG0-003
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
RETAINER, VALVE SPRING
14771-107-020
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAT, VALVE SPRING (OUTER)
14775-KCY-670
|
$6.94 | ||
|
Available to order. Add to View Price |
|||
|
#24
COTTER, VALVE
14781-HA0-770
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, TAPPET ADJUSTING
90012-MG3-000
|
$11.46 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, TAPPET ADJUSTING
90206-590-000
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, THRUST (17X22X0.75)
90401-MN1-670
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, WAVE
90406-KF0-003
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SEALING (14MM)
90544-KF0-000
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER (12MM)
90545-KF0-000
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, DOWEL (10X18)
90701-KF0-000
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, RADIAL BALL (18X37X9) (NTN)
91002-MN1-671
|
$46.43 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (6904)
91003-KF0-008
|
$16.46 | ||
|
Available to order. Add to View Price |
|||
|
#34
ROLLER, DECOMPRESSION CLUTCH
91101-KV2-940
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#35
ROLLER (4X9)
96220-40090
|
$0.44 | ||
|
Available to order. Add to View Price |
|||
