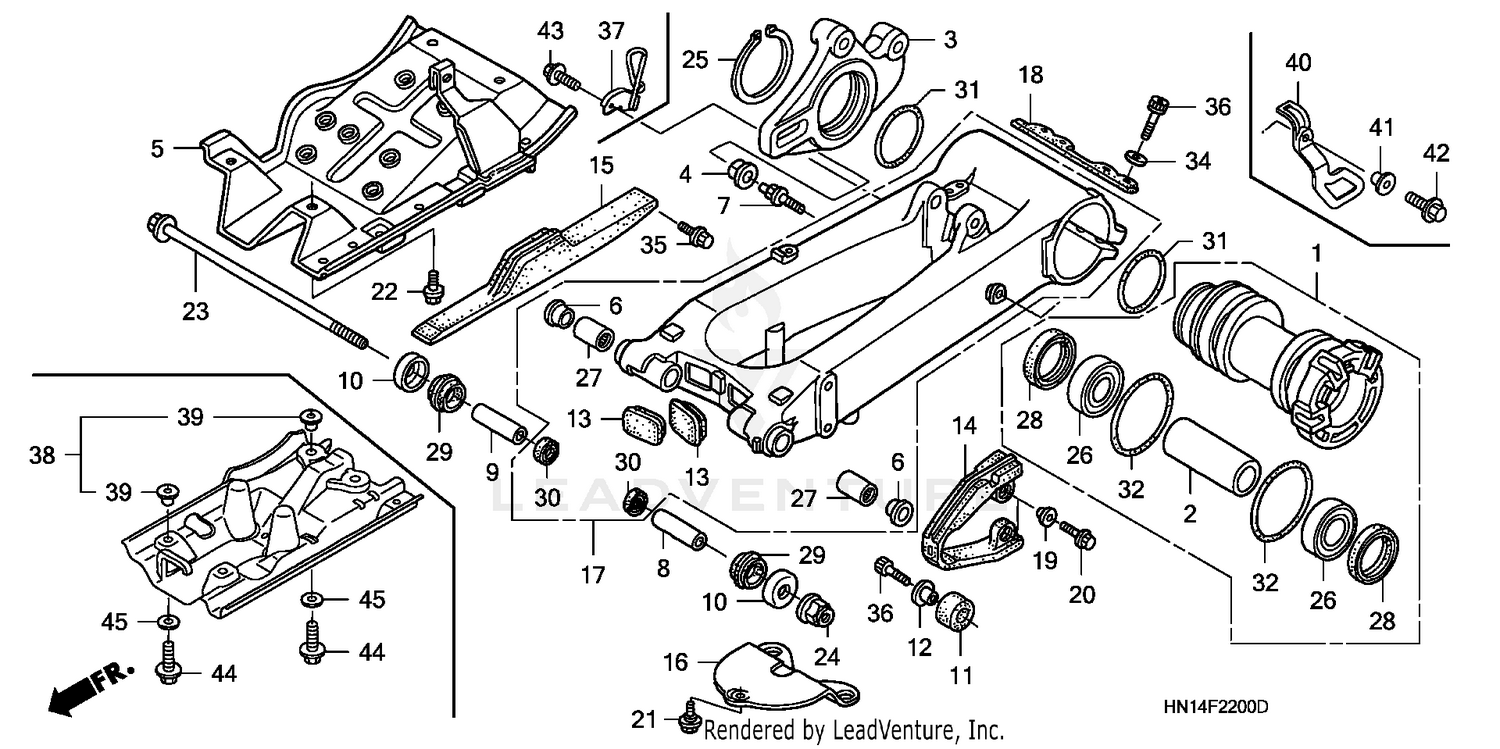

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER ASSY., BEARING
42500-HN1-000
Superseded by 42500-HN1-A40
|
$566.76 | ||
|
Available to order. Add to View Price |
|||
|
#1
HOLDER ASSY., BEARING
42500-HN1-A40
|
$566.76 | ||
|
Unavailable |
|||
|
#2
COLLAR, RR. AXLE
42621-HB9-770
|
$95.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, RR. CALIPER
43211-HN1-000
|
$97.44 | ||
|
Unavailable |
|||
|
#4
BUSH, RR. BRAKE STAY
43483-HB5-670
|
$10.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, SKID
50355-HN1-000
|
$294.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, PIVOT THRUST
52109-KA4-701
|
$18.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, TORQUE LINK
52121-HB9-770
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, SWINGARM PIVOT
52141-HN1-000
|
$17.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR B, SWINGARM PIVOT
52142-HN1-000
|
$22.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, DUST SEAL
52144-KA3-731
|
$16.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROLLER, CHAIN
52158-HC0-000
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, CHAIN ROLLER
52159-467-000
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, RR. SWINGARM
52161-HN1-000
Superseded by 52161-HN1-010
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, RR. SWINGARM
52161-HN1-010
|
$5.35 | ||
|
Unavailable |
|||
|
#14
SLIDER, CHAIN
52170-HN1-000
|
$41.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
SLIDER, CHAIN GUIDE
52181-HN1-000
|
$43.77 | ||
|
Unavailable |
|||
|
#16
PLATE, RR. CUSHION PROTECTION
52191-HN1-000
|
$22.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWINGARM SUB-ASSY., RR.
52200-HN1-010
Superseded by 52200-HN1-020
|
$539.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWINGARM SUB-ASSY., RR.
52200-HN1-020
|
$539.52 | ||
|
Unavailable |
|||
|
#18
SEAL, BEARING HOLDER
52202-HB9-770
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
81312-GJ5-000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X18)
90105-MY9-000
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6MM)
90111-GJ5-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X16)
90115-HA2-670
Superseded by 90123-KV0-000
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X16)
90123-KV0-000
|
$5.43 | ||
|
Unavailable |
|||
|
#23
BOLT, SWINGARM PIVOT
90121-HN1-000
|
$56.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U (14MM)
90305-GE8-003
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP (OUTER) (70)
90665-964-000
|
$15.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING (40X62X12) (KOYO)
91051-HA2-013
|
$39.12 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, SWINGARM PIVOT (NTN)
91071-MA0-003
|
$38.37 | ||
|
Available to order. Add to View Price |
|||
|
#28
DUST SEAL (52X62X7) (ARAI)
91252-HA2-003
|
$19.52 | ||
|
Available to order. Add to View Price |
|||
|
#29
DUST SEAL
91253-KA4-701
|
$14.91 | ||
|
Available to order. Add to View Price |
|||
|
#29
DUST SEAL
91253-KA4-702
Superseded by 91253-KA4-701
|
$14.91 | ||
|
Unavailable |
|||
|
#30
DUST SEAL (20X26X4.5) (ARAI)
91254-KS6-003
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING, ROTARY CASE
91351-737-752
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING, BEARING HOLDER (81X3)
91353-HA2-670
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLAIN (8MM)
94102-08000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, SOCKET (8X40)
96700-08040-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
