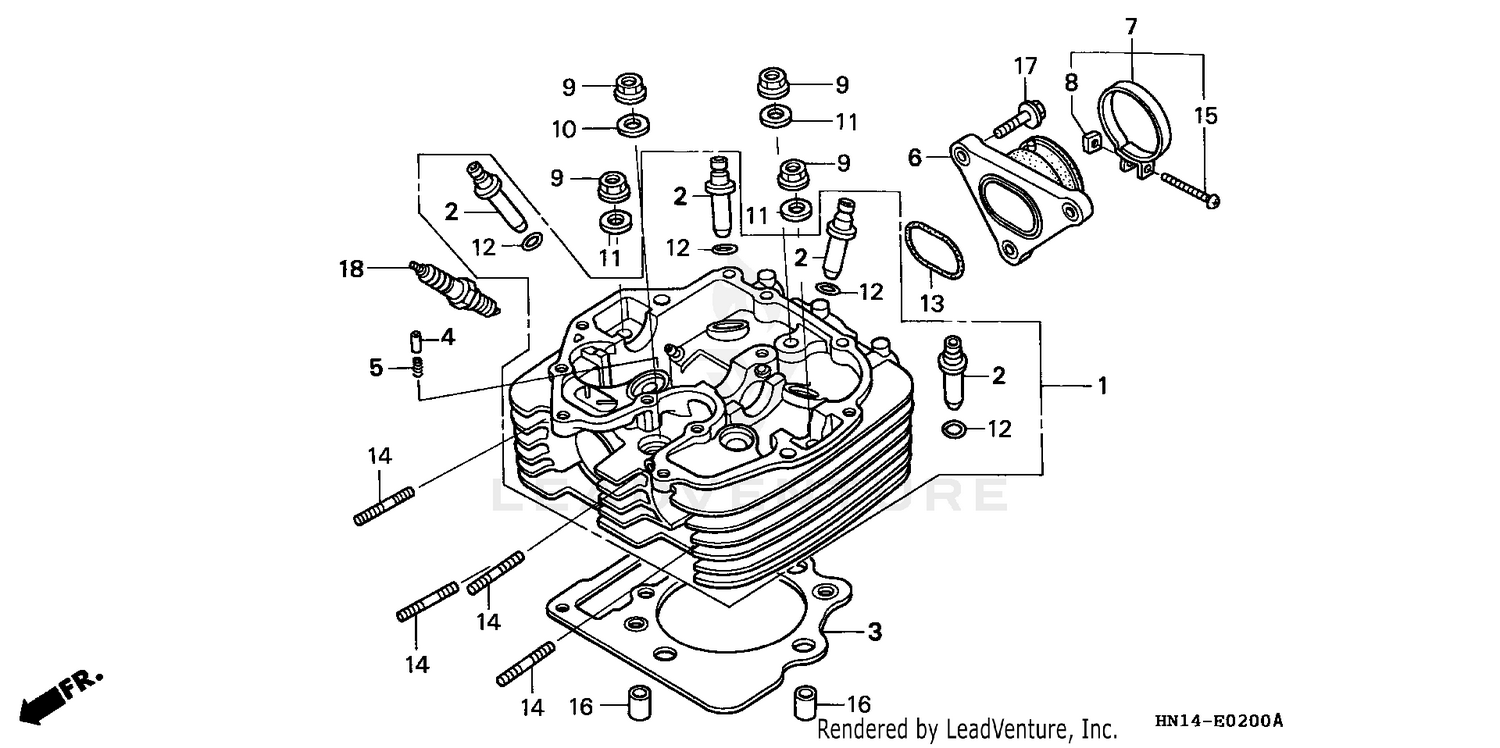

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-KCY-670
|
$827.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE
12231-KF0-305
|
$26.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE
12231-KN5-305
Superseded by 12231-KF0-305
|
$26.78 | ||
|
Unavailable |
|||
|
#3
GASKET, CYLINDER HEAD
12251-HN1-003
|
$35.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUNGER, CAM SETTING
14125-KV2-940
|
$20.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, PLUNGER
14126-KV2-940
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
INSULATOR, CARBURETOR
16211-HN1-010
|
$62.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, INSULATOR
16217-HN1-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SQUARE WELDING (4MM)
94061-04001
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CAP (10MM)
90201-HA0-000
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CAP (10MM)
90202-HA0-000
Superseded by 90201-HA0-000
|
$7.75 | ||
|
Unavailable |
|||
|
#10
WASHER (10X25X4)
90453-KAS-900
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN (10MM)
90453-KCY-670
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (10X1.6)
91301-200-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (45X2.5)
91303-397-000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD (8X22)
92900-08022-0B
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (4X25)
93500-04025-0G
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (12X20)
94301-12200
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X25) (NSHF)
90004-GHB-670
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPARK PLUG (DPR8Z) (NGK)
98061-58616
|
$3.92 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (X24GPR-U) (DENSO)
98061-58626
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPARK PLUG (DPR9Z) (NGK)
98061-59616
|
$3.92 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (X27GPR-U) (DENSO)
98061-59626
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
