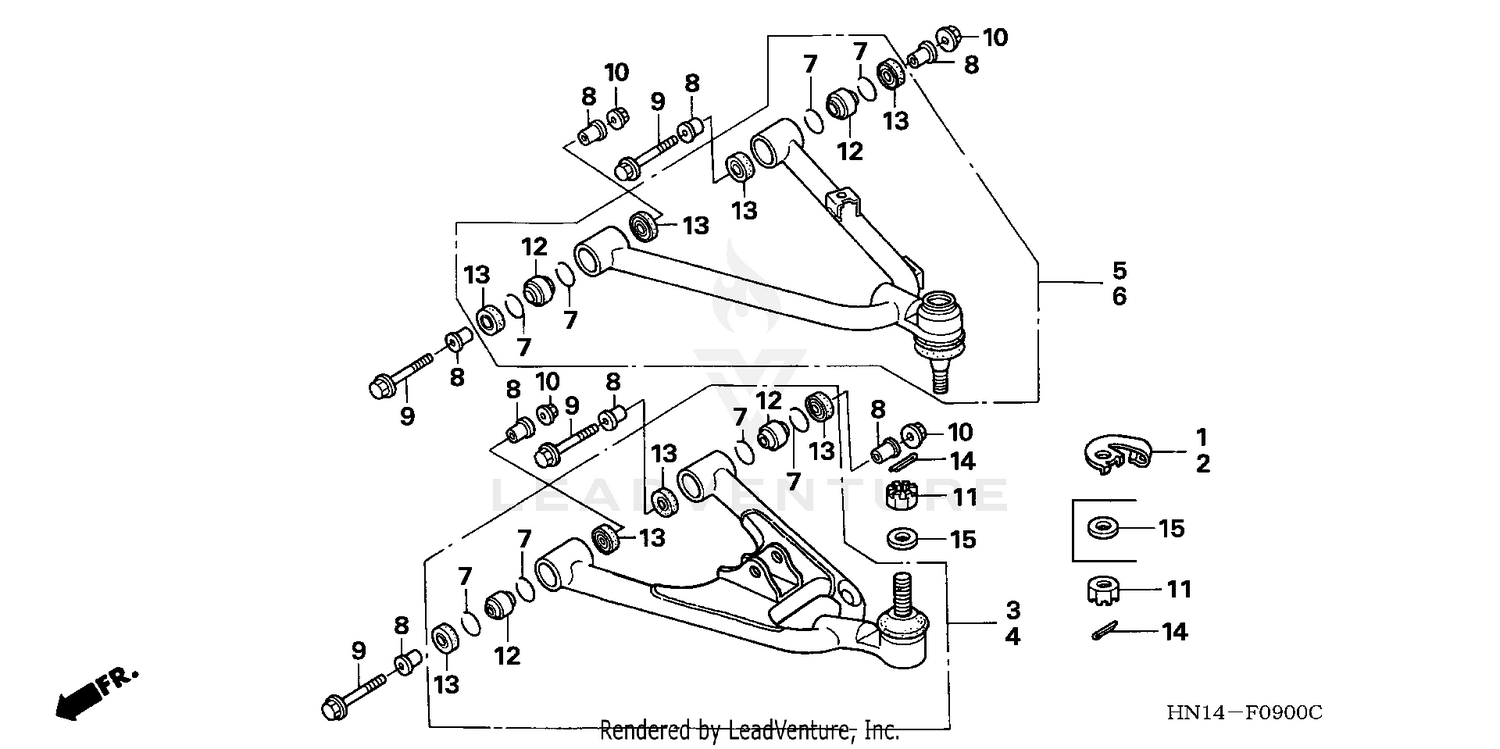

Front Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP A, R. FR. BRAKE HOSE
45462-HN1-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP A, L. FR. BRAKE HOSE
45472-HN1-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM SUB-ASSY., R. FR. (LOWER)
51355-HN1-003
|
$66.04 | ||
|
Unavailable |
|||
|
#4
ARM SUB-ASSY., L. FR. (LOWER)
51365-HN1-003
|
$67.99 | ||
|
Unavailable |
|||
|
#5
ARM SUB-ASSY., R. FR. (UPPER)
51375-HN1-003
|
$105.58 | ||
|
Unavailable |
|||
|
#6
ARM SUB-ASSY., L. FR. (UPPER)
51385-HN1-003
|
$105.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, STOPPER
51393-HB9-670
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, FR. ARM PIVOT
51394-HC0-000
|
$13.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (10X62)
90183-HC0-770
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, SPECIAL (10MM) (THOMPSON)
91077-HB9-672
|
$44.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUST SEAL, FR. ARM PIVOT (ARAI)
91265-HB9-671
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SPLIT (3.0X18)
94201-30180
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (12MM)
94102-12000
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
