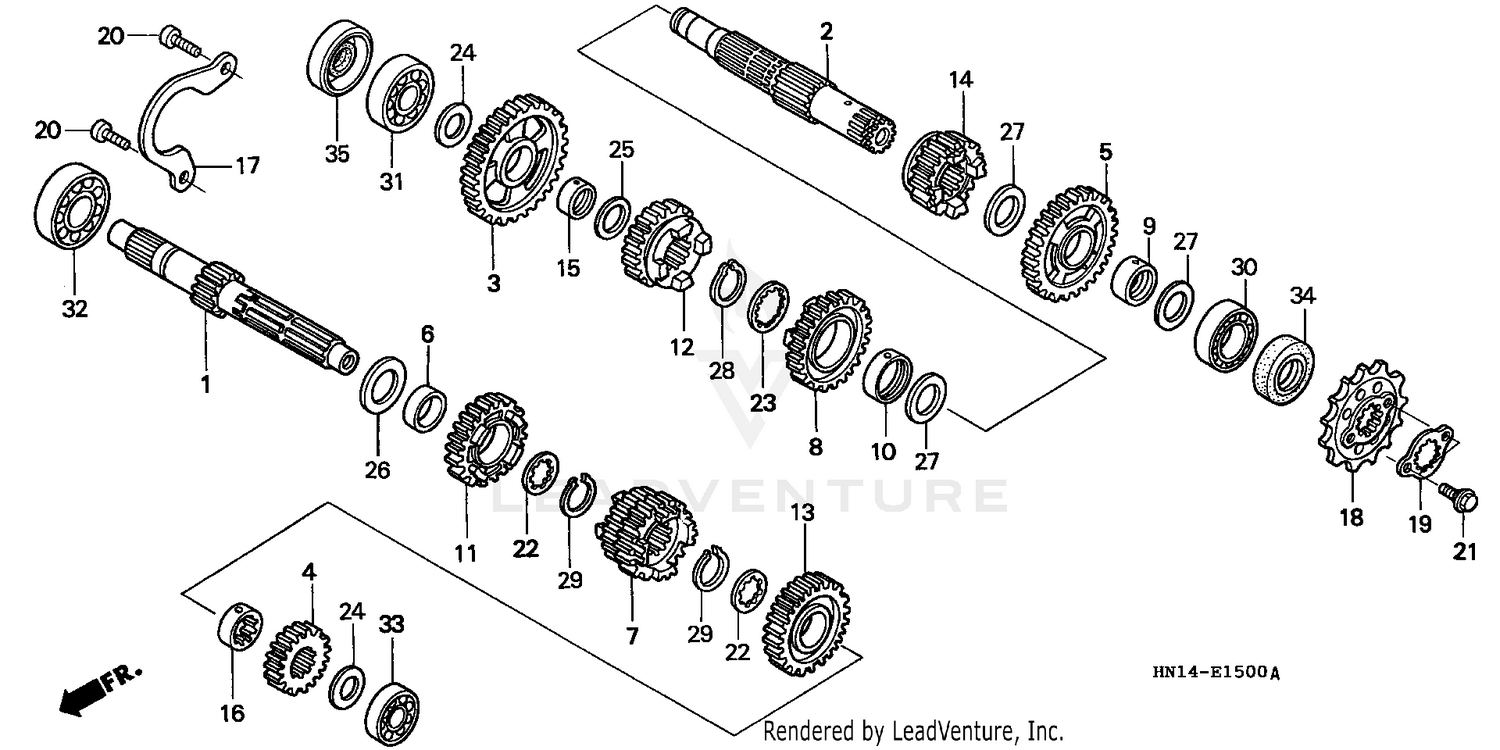

Transmission ('99-'04) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (12T)
23211-HN1-000
|
$175.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT, TRANSMISSION
23220-HN1-000
|
$116.19 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (35T)
23411-HN1-000
|
$88.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, MAINSHAFT SECOND (16T)
23421-HN1-000
|
$44.63 | ||
|
Unavailable |
|||
|
#5
GEAR, COUNTERSHAFT SECOND (31T)
23431-HN1-000
|
$87.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH (22X25X10)
23432-HM3-670
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, MAINSHAFT THIRD (19T)
23441-HN1-000
|
$86.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (28T)
23451-HN1-000
|
$88.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, COUNTERSHAFT THIRD
23452-HC0-000
|
$22.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, COUNTERSHAFT THIRD
23452-KCY-670
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, MAINSHAFT FOURTH (22T)
23461-HN1-000
|
$78.74 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT FOURTH (26T)
23471-HN1-000
|
$94.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FIFTH (26T)
23481-HN1-000
|
$83.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, COUNTERSHAFT FIFTH (26T)
23491-HN1-000
|
$100.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH (20MM)
23502-KA2-000
|
$32.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, SPLINE (22X14)
23512-KEA-000
|
$23.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, BEARING SETTING
23521-KCY-670
|
$15.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (15T)
23801-HN1-000
|
$48.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, FIXING
23802-KAE-870
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (6X16)
90001-MA2-770
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12)
90118-958-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPLINE (22MM)
90451-KY1-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPLINE (25X31X1.5)
90451-KY2-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (17MM)
90454-KF0-000
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (20MM)
90454-428-000
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER B, THRUST (22MM) (BLUE)
90455-ML7-000
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, THRUST (25MM)
90456-MA6-000
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP (25MM)
90601-107-000
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP (22MM)
90601-329-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, BALL (25X52X13)
91003-KCY-671
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, RADIAL BALL (17X44X12)
91004-KN5-671
|
$29.92 | ||
|
Unavailable |
|||
|
#32
BEARING, RADIAL BALL (62/22)
91005-KF0-008
Superseded by 91005-KS4-003
|
$46.87 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, RADIAL BALL (62/22)
91005-KS4-003
|
$46.87 | ||
|
Unavailable |
|||
|
#33
BEARING, RADIAL BALL (6203)
91008-KN5-671
Superseded by 91053-HB3-771
|
$26.47 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL (25X35X5)
91203-KCY-671
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL (17X34X4.5)
91204-HN1-003
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
