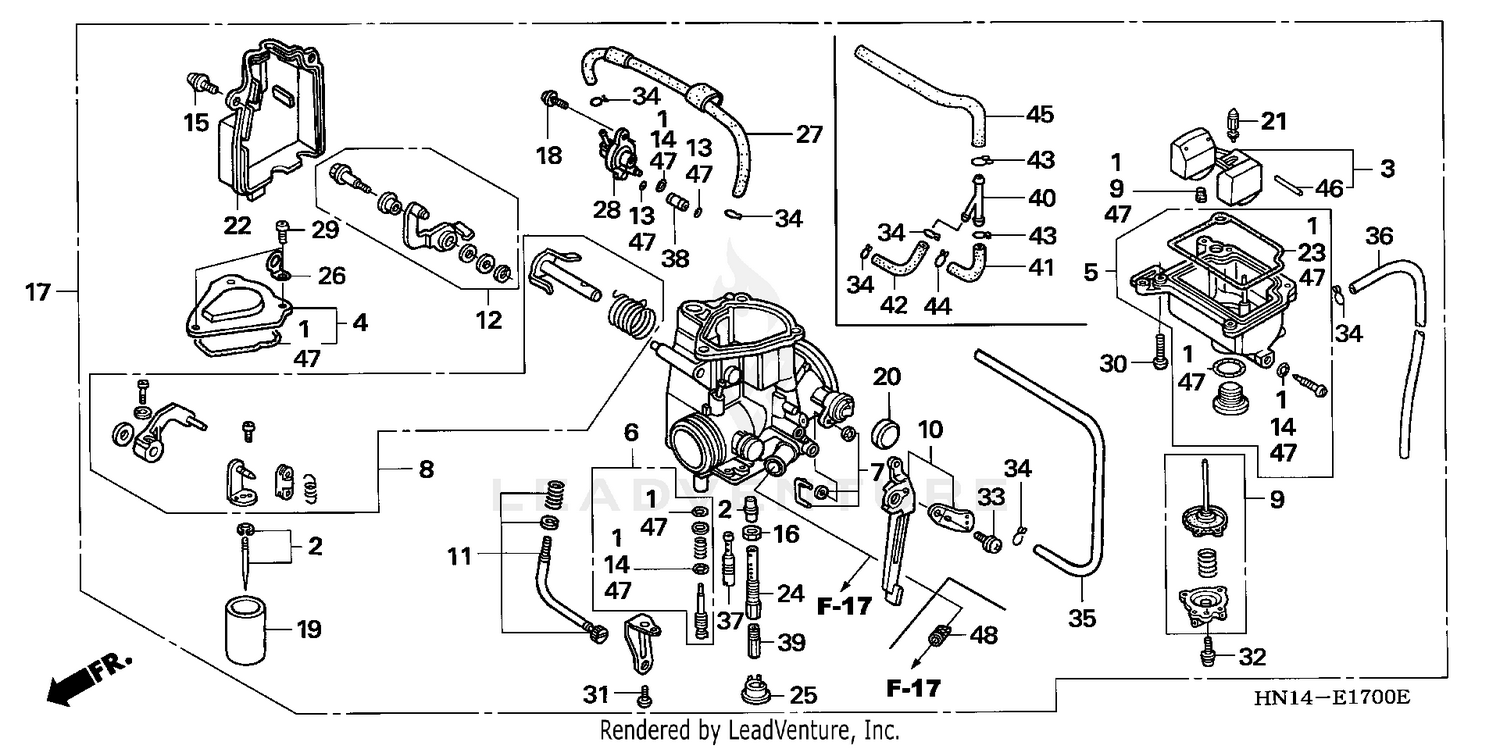

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-HN1-003
|
$30.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
NEEDLE SET, JET
16012-HN1-003
|
$43.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT SET
16013-KR3-980
|
$64.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
TOP SET
16014-HN1-003
|
$32.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAMBER SET, FLOAT
16015-HM3-A61
|
$117.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAMBER SET, FLOAT
16015-HM3-L00
Superseded by 16015-HM3-A61
|
$117.27 | ||
|
Unavailable |
|||
|
#6
SCREW SET
16016-HM5-730
|
$24.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD SET, CHOKE
16017-HN1-003
|
$42.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM SET, LINK
16018-HN1-003
|
$56.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
DIAPHRAGM SET, PUMP
16021-HM3-L00
|
$102.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER SET, CHOKE
16025-HM3-L00
|
$36.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW SET
16028-HM3-L00
|
$18.21 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM SET, PUMP
16031-HM3-L00
|
$89.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (1.3X2.8)
16075-GHB-630
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (1.3X4.3)
16075-GHB-640
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-WASHER
16080-HC0-003
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX.
16096-HC0-003
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
CARBURETOR ASSY. (QB10A B)
16100-HN1-003
Superseded by 16100-HN1-013
|
$446.44 | ||
|
Unavailable |
|||
|
#17
CARBURETOR ASSY. (QB10A B)
16100-HN1-013
|
$446.44 | ||
|
Unavailable |
|||
|
#18
SCREW
16108-MW0-750
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE, THROTTLE
16111-HN1-003
|
$85.43 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, CHOKE DUST
16148-141-881
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
VALVE, FLOAT
16155-MN9-004
|
$35.17 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, BODY
16160-HN1-003
|
$42.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, FLOAT CHAMBER
16163-HM7-700
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, NEEDLE JET
16165-HN1-003
|
$36.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, JET
16168-HC4-003
|
$14.19 | ||
|
Available to order. Add to View Price |
|||
|
#26
BINDER
16179-HA0-003
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#27
TUBE
16199-HN1-003
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#28
VALVE ASSY., AIR CUT
16510-MZ2-650
|
$104.97 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (4X8)
93500-04008-0H
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (4X8)
93500-04008-1H
Superseded by 93500-04008-0H
|
$0.90 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN (4X14)
93500-04014-0H
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN (4X14)
93500-04014-1H
Superseded by 93500-04014-0H
|
$0.81 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN (6X10)
93500-06010-0H
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN (6X10)
93500-06010-1H
Superseded by 93500-06010-0H
|
$0.93 | ||
|
Unavailable |
|||
|
#32
SCREW-WASHER (4X12)
93892-04012-08
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW-WASHER (4X12)
93892-04012-18
Superseded by 93892-04012-08
|
$0.63 | ||
|
Unavailable |
|||
|
#33
SCREW-WASHER (5X10)
93892-05010-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW-WASHER (5X10)
93892-05010-18
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP, TUBE (B7)
95002-02079
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#35
BULK HOSE, VACUUM (3.5X1000) (3.5X280)
95005-35001-20M
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#36
BULK HOSE, VACUUM (3.5X1000) (3.5X400)
95005-35001-50M
|
$15.90 | ||
|
Available to order. Add to View Price |
|||
|
#37
JET, SLOW (#38)
99103-420-0380
|
$12.51 | ||
|
Available to order. Add to View Price |
|||
|
#38
JET (#110)
99108-MW0-1102
Superseded by 99108-MY1-1100
|
$13.36 | ||
|
Available to order. Add to View Price |
|||
|
#39
JET, MAIN (#140)
99101-357-1400
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#39
JET, MAIN (#140)
99113-GHB-1400
Superseded by 99101-357-1400
|
$9.91 | ||
|
Unavailable |
|||
|
#39
JET, MAIN (#148)
99113-GHB-1480
|
$10.52 | ||
|
Available to order. Add to View Price |
|||
