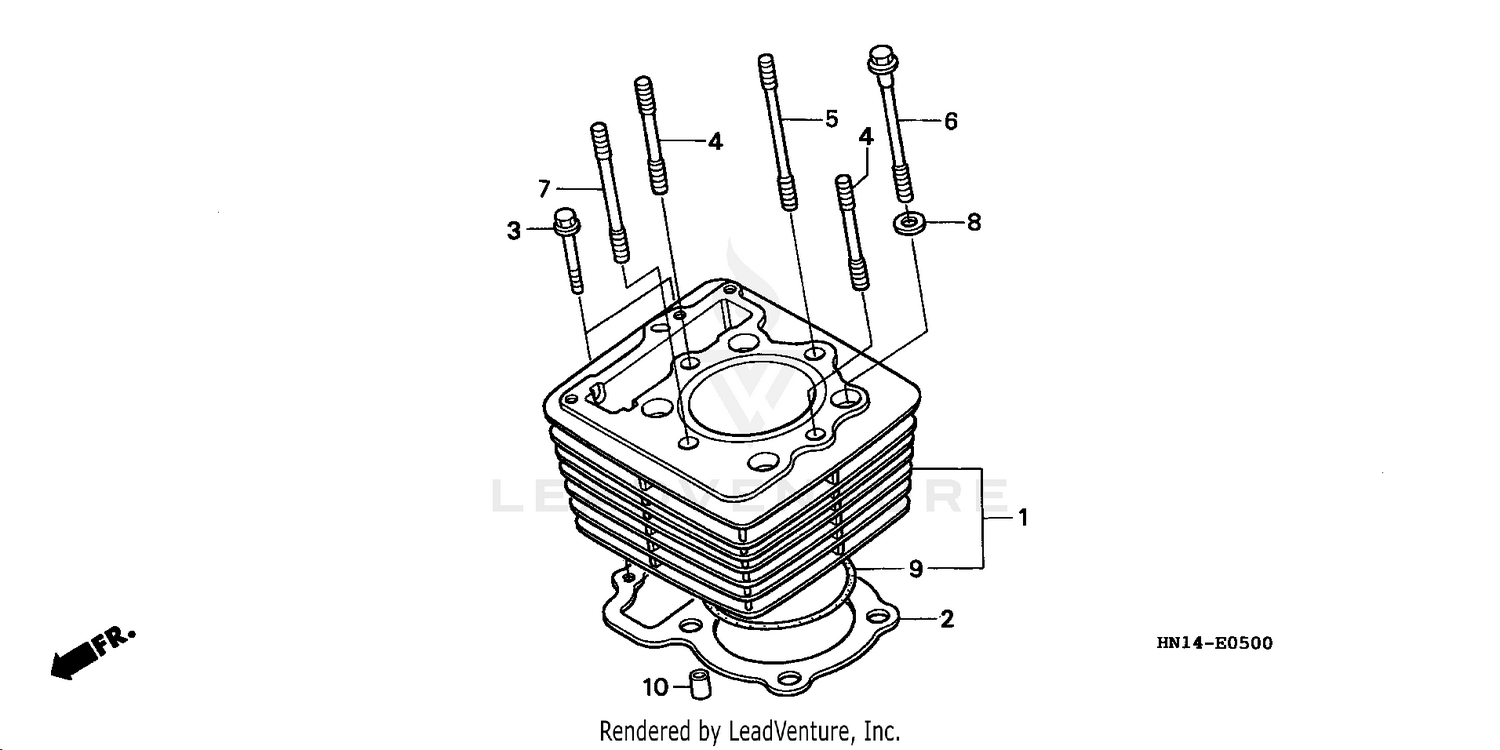

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
12100-KCY-670
|
$711.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER
12191-KCY-671
Superseded by 12191-KCY-673
|
$14.28 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE (6X32) (NSHF)
90004-GHB-690
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD (10X60)
90081-KCY-670
|
$11.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD (10X92)
90083-KG0-981
|
$11.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (10X100)
90085-KCY-670
|
$17.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD (10X73)
90085-KG0-981
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (10MM)
90410-KE5-000
Superseded by 90410-KR0-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (10MM)
90410-KF0-000
Superseded by 90410-KR0-000
|
$2.93 | ||
|
Unavailable |
|||
|
#8
WASHER (10MM)
90410-KR0-000
|
$2.93 | ||
|
Unavailable |
|||
|
#9
O-RING, CYLINDER (88X2)
91302-356-000
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL (12X20)
94301-12200
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
