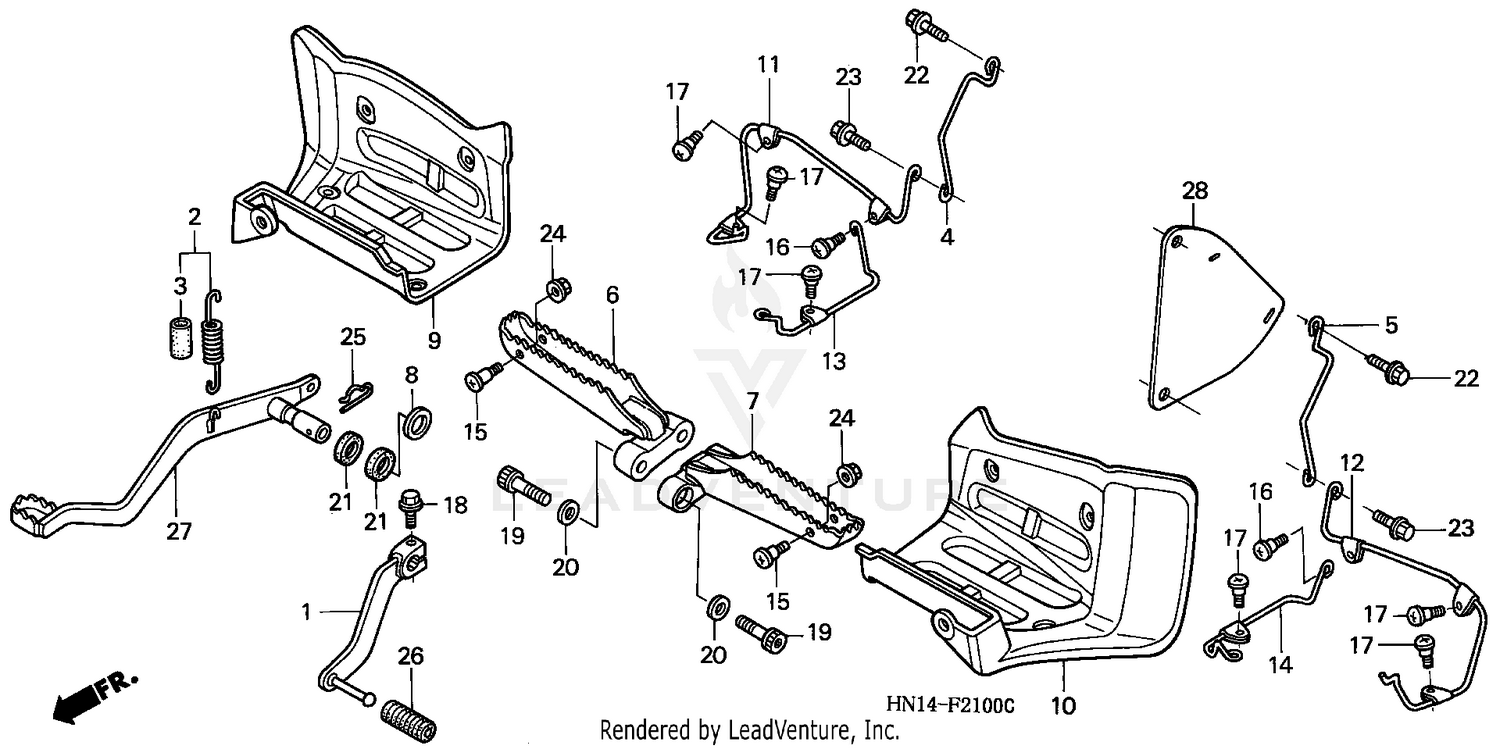

Step + Pedal ('99-'04) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT *NH1* (BLACK)
24700-HN1-010ZB
Superseded by 24700-HN1-A70ZA
|
$29.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING ASSY., RR. BRAKE PEDAL
46513-HN1-000
|
$26.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, BRAKE PEDAL SPRING
46514-HN1-000
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, R. RR. FENDER
50218-HN1-000
|
$59.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, L. RR. FENDER
50219-HN1-000
|
$49.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
STEP, R.
50610-HN1-000
|
$95.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
STEP, L.
50620-HN1-000
|
$157.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, BUSH
53312-657-000
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPLASH GUARD, R. RR. *NH1* (BLACK)
80121-HN1-000ZA
|
$54.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPLASH GUARD, L. RR. *NH1* (BLACK)
80122-HN1-000ZA
|
$16.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, R. SPLASH GUARD (OUTER)
80123-HN1-000
|
$283.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, L. SPLASH GUARD (OUTER)
80124-HN1-000
|
$29.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, R. SPLASH GUARD (INNER)
80126-HN1-000
|
$32.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, L. SPLASH GUARD (INNER)
80127-HN1-000
|
$32.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, SPECIAL (6X8)
90102-HM7-000
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, SPLASH GUARD (6X20)
90103-HB9-740
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, SPLASH GUARD
90103-HC4-770
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X20)
90118-968-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SOCKET (10X45)
90181-HN1-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (10MM)
90410-HC4-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUST SEAL (15X20X3)
91251-MT4-000
Superseded by 91251-MT4-003
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUST SEAL (15X20X3)
91251-MT4-003
|
$4.56 | ||
|
Unavailable |
|||
|
#22
BOLT-WASHER (6X16)
93404-06016-07
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-WASHER (6X20)
93404-06020-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, LOCK (16MM)
94251-16000
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#26
RUBBER, CHANGE PEDAL
95011-40000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#27
PEDAL, BRAKE *NH1* (BLACK)
46510-HN1-000ZB
|
$78.78 | ||
|
Available to order. Add to View Price |
|||
