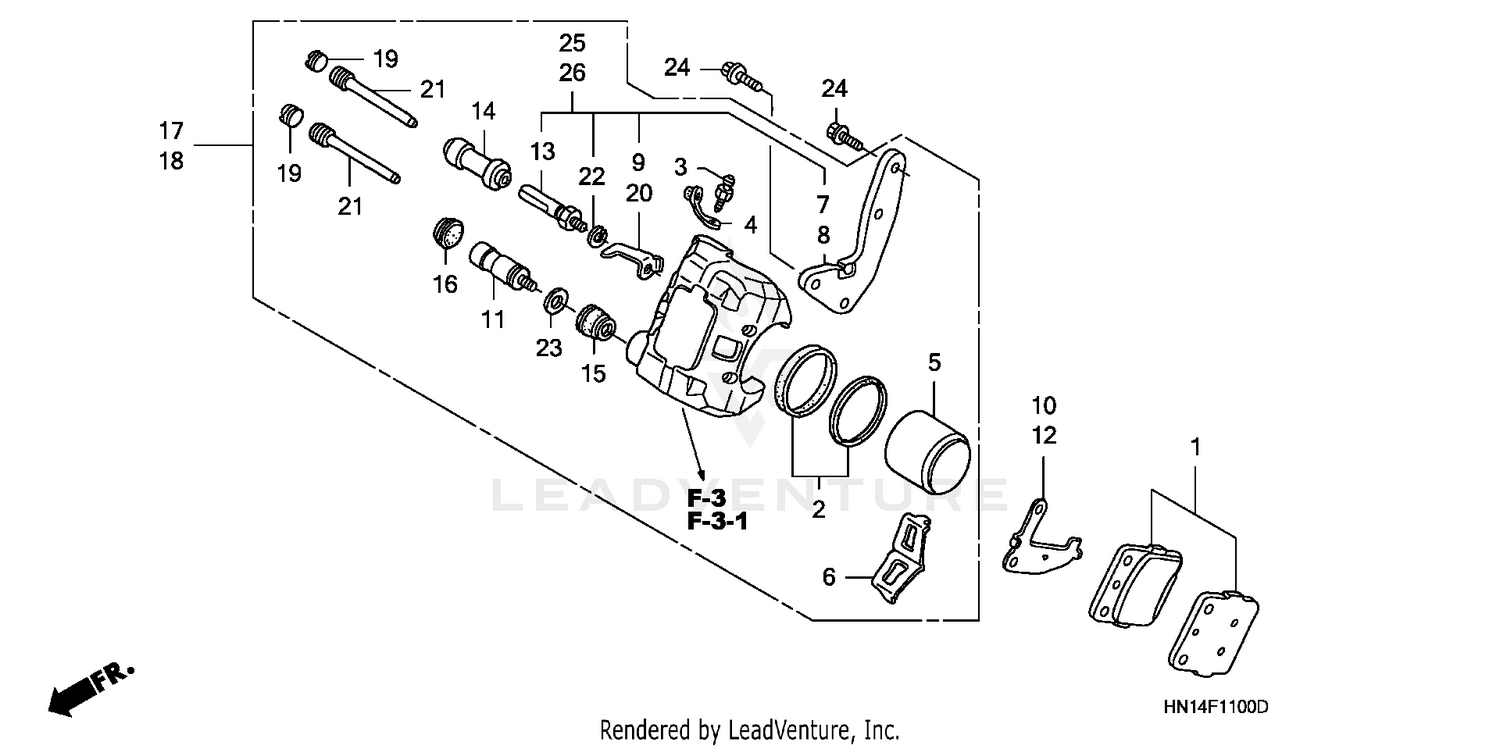

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAD SET, RR. (NISSIN)
06435-HA5-670
Superseded by 06435-HA5-671
|
$50.36 | ||
|
Available to order. Add to View Price |
|||
|
#1
PAD SET, RR. (NISSIN)
06435-HA5-671
|
$50.36 | ||
|
Unavailable |
|||
|
#2
SEAL SET, PISTON
06451-961-405
|
$7.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON (NISSIN)
45107-HC0-681
|
$81.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD
45108-166-006
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, L. (R. SIDE)
45110-GC4-601
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, FR. (A) (L. SIDE)
45110-HC0-006
|
$53.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
INDICATOR, L.
45113-HC0-006
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM
45114-GE3-601
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, SLIDE
45115-GE3-602
|
$13.34 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM
45116-GE3-601
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, PIN
45131-166-016
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT, PIN
45133-166-016
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#16
DUST PLUG
45134-GE3-601
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
CALIPER SUB-ASSY., L. FR. BRAKE
45150-HM3-305
|
$245.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
CALIPER SUB-ASSY., R. FR. BRAKE
45250-HM3-305
|
$245.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG, PIN
45203-MG3-016
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
INDICATOR, R.
45213-HC0-006
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, HANGER
45215-GE2-016
|
$13.34 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, WAVE
45216-166-006
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, CONICAL SPRING
45218-166-006
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X20)
90115-HA7-670
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
