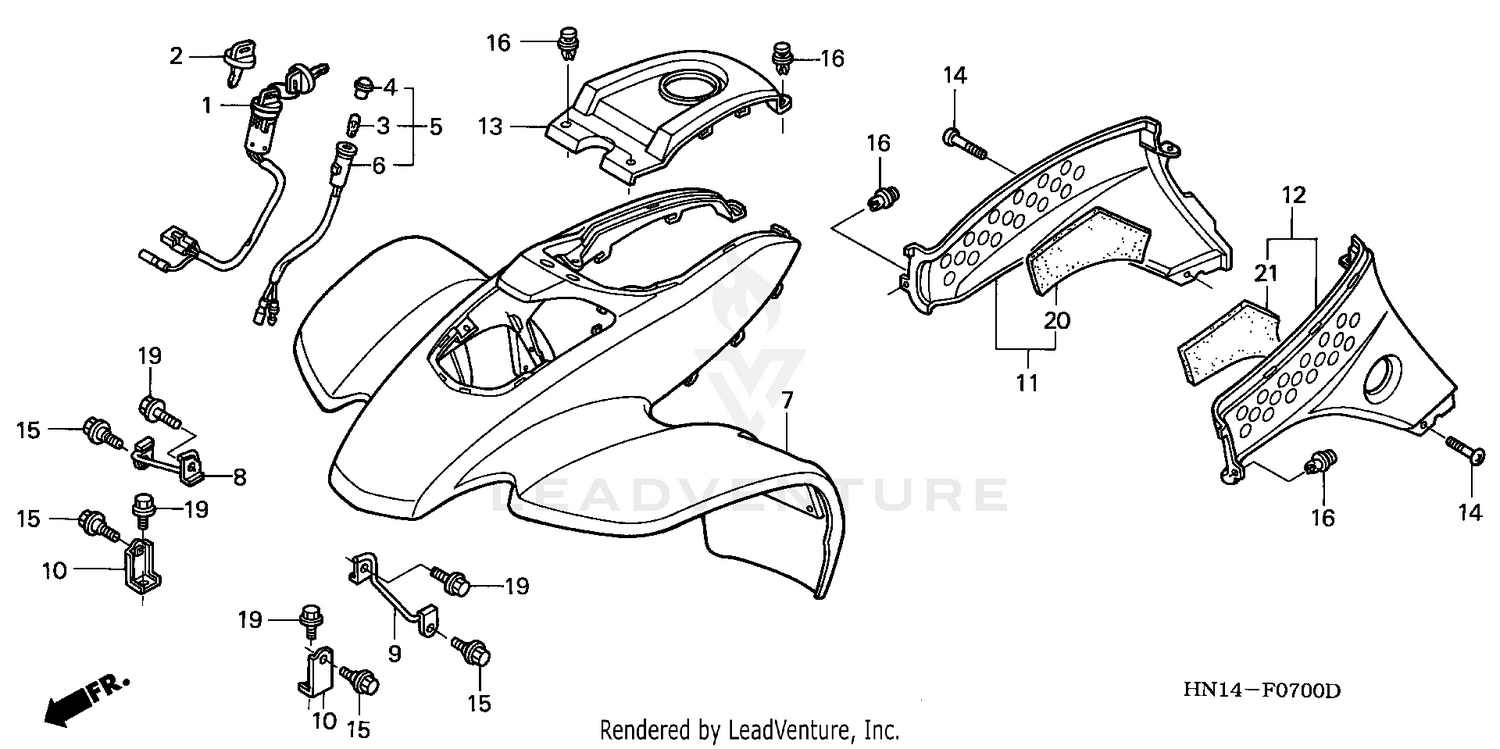

Front Fender ('99-'04) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., IGNITION
35100-HN1-000
|
$53.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-HF1-881
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-HF1-881
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (14V 3.4W) (NS)
34908-GA7-701
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (14V 3.4W) (NS)
37102-567-009
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#3
BULB (14V 3.4W) (NS)
37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#3
BULB (14V 3.4W) (NS)
37237-SA5-004
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#4
LENS, NEUTRAL PILOT (GREEN)
37561-HF1-670
|
$12.46 | ||
|
Available to order. Add to View Price |
|||
|
#5
INDICATOR ASSY., NEUTRAL
37570-HN1-000
|
$17.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE
37572-HN1-000
|
$13.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, FR. *R134* (FIGHTING RED)
61100-HN1-000ZA
|
$253.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, R. FR. FENDER SUPPORT
61101-HN1-000
|
$95.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, L. FR. FENDER SUPPORT
61102-HN1-000
|
$95.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, FR. FENDER
61103-HN1-000
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER ASSY., R. SIDE *NH1* (BLACK)
83550-HN1-000ZA
Superseded by 83550-HN1-A40ZA
|
$60.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER ASSY., L. SIDE *NH1* (BLACK)
83650-HN1-000ZA
Superseded by 83650-HN1-A40ZA
|
$67.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, FUEL TANK TOP *R134* (FIGHTING RED)
83700-HN1-000ZA
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, SPECIAL (6X8)
90102-HM7-000
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6MM)
90111-187-000
|
$6.72 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
MAT, R. SIDE COVER
83506-HN1-300
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
MAT, L. SIDE COVER
83606-HN1-300
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
