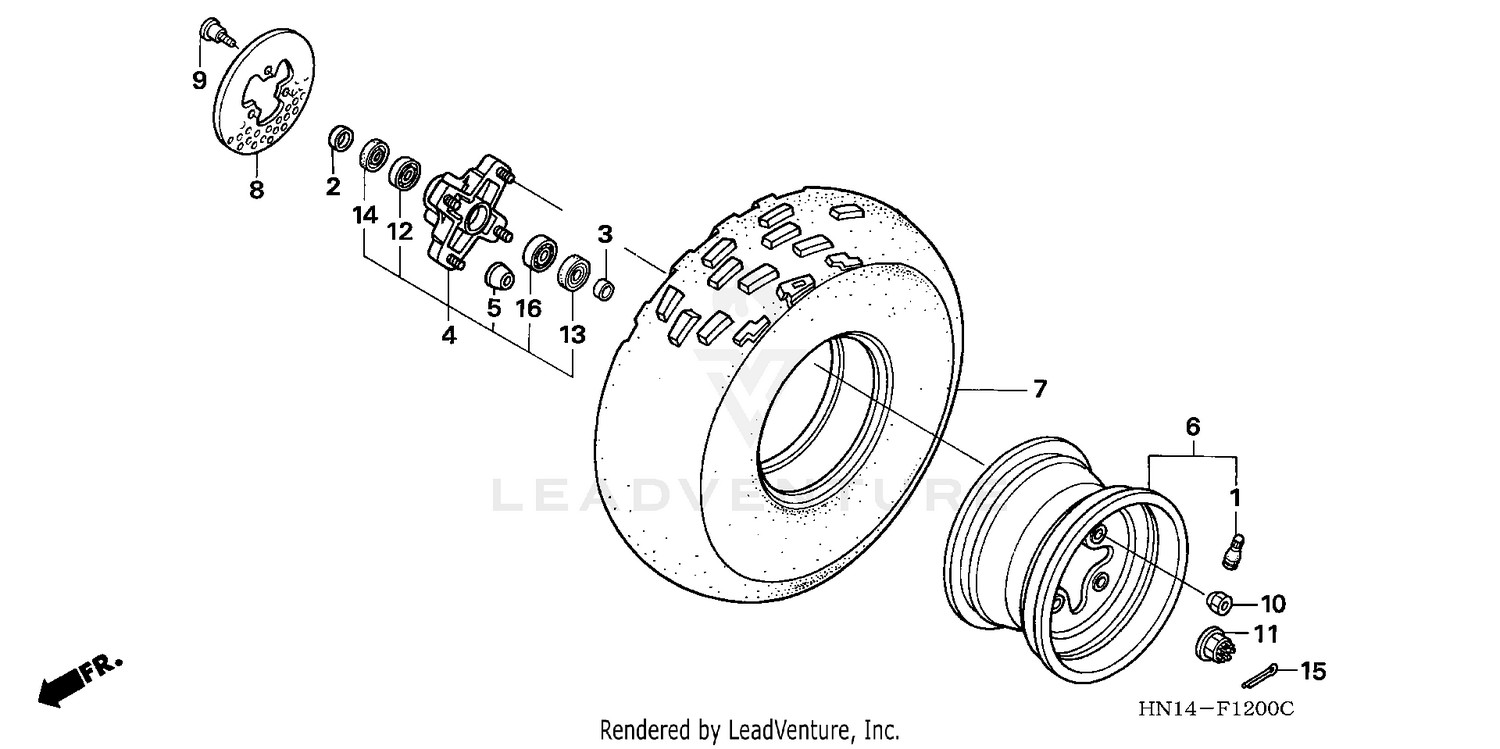

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE, RIM (TR412)
42753-HF1-670
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, WHEEL SIDE
44313-HN1-000
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, FR. WHEEL SIDE
44312-HB3-000
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB SUB-ASSY., FR.
44615-HN1-000
|
$171.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, FR. WHEEL DISTANCE
44620-HB9-740
|
$16.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
WHEEL SET, FR.
44650-HN1-000
Superseded by 44650-HN6-F00
|
$289.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
WHEEL SET, FR.
44650-HN1-010
Superseded by 44650-HN6-F00
|
$289.65 | ||
|
Unavailable |
|||
|
#7
TIRE, FR. (22X7-10) (OHTSU)
44711-HN1-004
|
$74.51 | ||
|
Unavailable |
|||
|
#8
DISK, FR. BRAKE
45251-HN1-003
|
$122.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, DISK (8X22)
90105-MK5-010
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, WHEEL CLIP
90304-HA2-003
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, AXLE (14MM)
90309-HC4-000
|
$17.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, RADIAL BALL (6004)
91053-HC4-000
|
$23.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, RADIAL BALL (6004)
91053-HC4-003
Superseded by 91053-HC4-000
|
$23.11 | ||
|
Unavailable |
|||
|
#13
DUST SEAL (35X20X7) (ARAI)
91257-HB3-003
|
$10.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUST SEAL (28X42X6)
91257-VM0-004
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#15
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#15
PIN, SPLIT (3.0X45)
94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#16
BEARING, RADIAL BALL (6202UU)
96150-62020-10
|
$16.65 | ||
|
Available to order. Add to View Price |
|||
