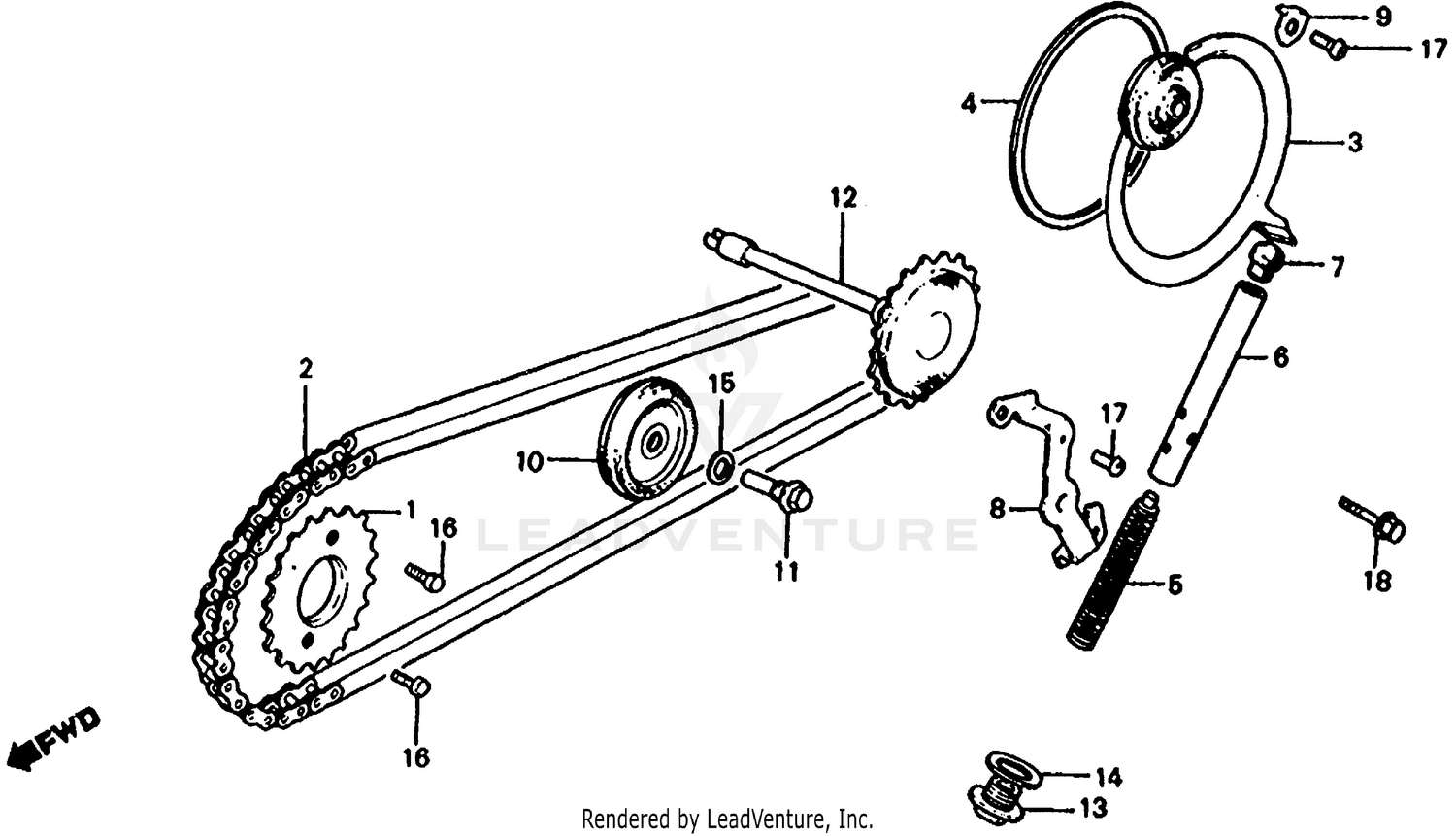

Cam Chain + Tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, CAM (30T)
14321-028-000
|
$34.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, CAM (25H-94)
14401-968-003
|
$41.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER, CAM CHAIN (NOT AVAILABLE)
14500-096-020
|
$36.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, THRUST (80MM)
14502-VM6-000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CAM CHAIN TENSIONER
14541-GB0-910
Superseded by 14541-GB4-681
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CAM CHAIN TENSIONER
14541-GB4-681
|
$5.70 | ||
|
Unavailable |
|||
|
#6
ROD, CAM CHAIN TENSIONER PUSH
14550-GB0-910
Superseded by 14550-GB0-911
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CAM CHAIN TENSIONER PUSH
14550-GB0-911
|
$24.75 | ||
|
Unavailable |
|||
|
#7
HEAD, CAM CHAIN TENSIONER PUSH ROD
14566-086-030
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, TENSIONER SETTING
14592-968-000
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE B, CAM CHAIN TENSIONER SETTING
14593-028-010
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROLLER, CAM CHAIN GUIDE
14610-105-690
Superseded by 14610-105-691
|
$19.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROLLER, CAM CHAIN GUIDE
14610-105-691
|
$19.38 | ||
|
Unavailable |
|||
|
#11
PIN, CAM CHAIN GUIDE ROLLER
14615-035-000
Superseded by 14615-035-010
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, CAM CHAIN GUIDE ROLLER
14615-035-010
|
$3.08 | ||
|
Unavailable |
|||
|
#12
SPROCKET, CAM CHAIN GUIDE (NOT AVAILABLE)
14670-968-000
|
$32.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SEALING (14MM)
90081-035-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SEALING (14MM)
90441-035-000
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (8MM)
90481-035-000
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X10)
92000-06010-0A
Superseded by 92101-06010-0A
|
$1.40 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.40 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN (6X12)
93500-06012-0A
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95700-06018-00
Superseded by 95701-06018-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.64 | ||
|
Unavailable |
|||
