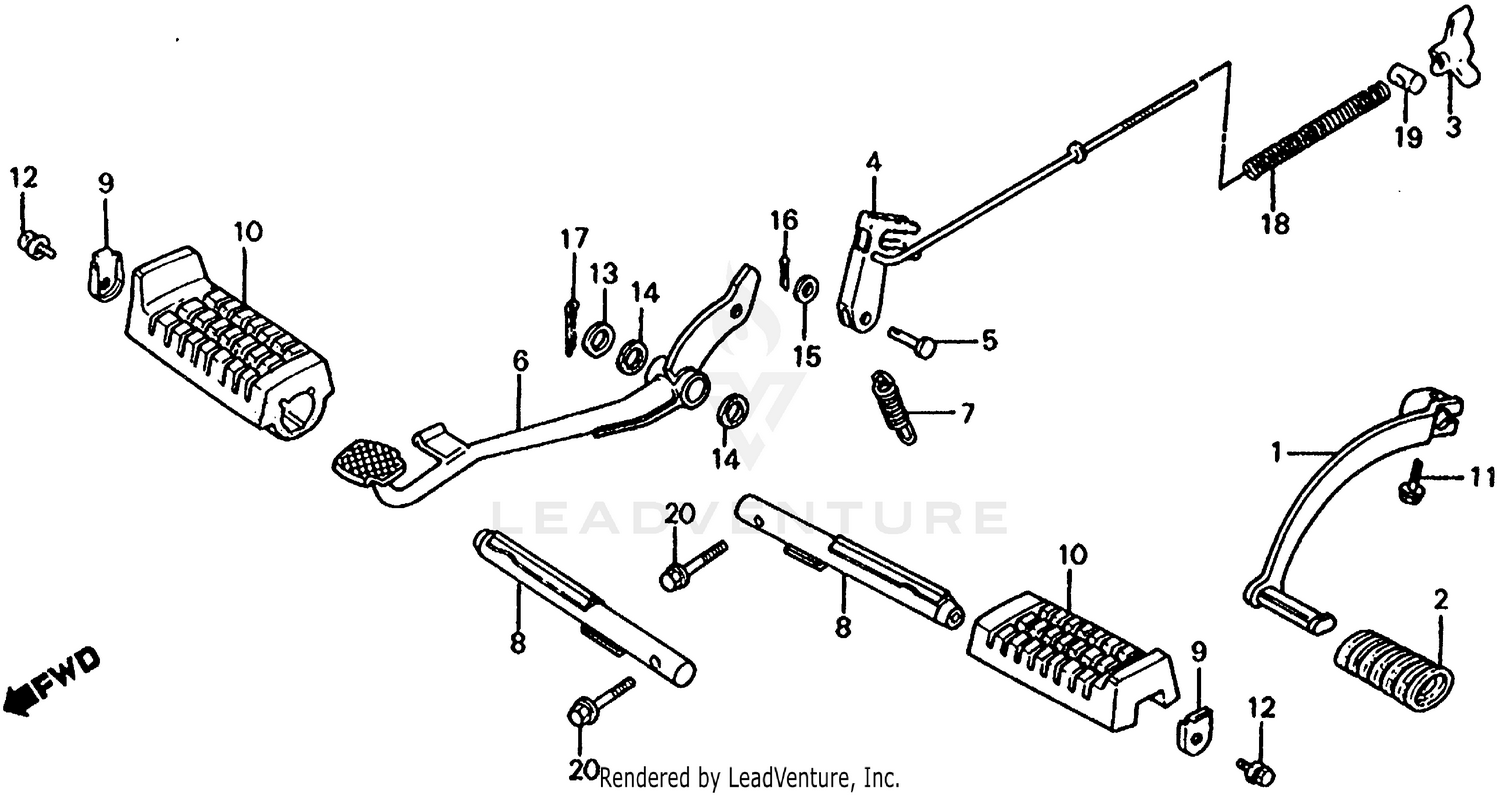

Footpegs + Gearshift Pedal + Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24700-VM6-680
|
$54.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, GEARSHIFT PEDAL
24781-371-000
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, BRAKE ADJUST
43459-434-000
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER, ESCAPE (NOT AVAILABLE)
43470-VM6-680
|
$14.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, ESCAPE (NOT AVAILABLE)
43472-918-000
|
$14.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
PEDAL, BRAKE (NOT AVAILABLE)
46500-VM6-680
|
$74.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, BRAKE PEDAL
46514-VM3-000
|
$6.86 | ||
|
Unavailable |
|||
|
#7
SPRING, BRAKE PEDAL
46514-VM6-680
Superseded by 46514-VM3-000
|
$6.86 | ||
|
Unavailable |
|||
|
#8
BAR, FOOTPEG (NOT AVAILABLE)
50610-VM6-000
|
$30.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOPPER, STEP RUBBER (NOT AVAILABLE)
50651-958-010
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, STEP
50661-958-020
|
$15.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X20)
90118-968-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (8X12)
90156-964-670
|
$4.32 | ||
|
Unavailable |
|||
|
#13
WASHER (17.5MM)
90512-303-000
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUST SEAL (17X23X3)
91206-968-003
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (8MM)
94101-08800
|
$1.93 | ||
|
Unavailable |
|||
|
#16
PIN, COTTER (2.0X22)
94201-20180
Superseded by 94201-29220
|
$1.03 | ||
|
Unavailable |
|||
|
#16
PIN, COTTER (2.0X22)
94201-20200
Superseded by 94201-29220
|
$1.03 | ||
|
Unavailable |
|||
|
#16
PIN, COTTER (2.0X22)
94201-20220
|
$1.03 | ||
|
Unavailable |
|||
|
#16
PIN, COTTER (2.0X35)
94201-20250
Superseded by 94201-20350
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, COTTER (2.0X35)
94201-20280
Superseded by 94201-20350
|
$1.03 | ||
|
Unavailable |
|||
|
#16
PIN, COTTER (2.0X35)
94201-20320
Superseded by 94201-20350
|
$1.03 | ||
|
Unavailable |
|||
|
#16
PIN, COTTER (2.0X35)
94201-20350
|
$1.03 | ||
|
Unavailable |
|||
|
#16
PIN, COTTER (2.0X22)
94201-29220
|
$1.03 | ||
|
Unavailable |
|||
|
#17
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#17
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#17
PIN, COTTER (3.0X45)
94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#18
SPRING, RR. BRAKE ROD
43467-HA0-000
|
$2.19 | ||
|
Unavailable |
|||
|
#19
JOINT, BRAKE ARM
95015-32001
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X40)
90118-VM6-000
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
