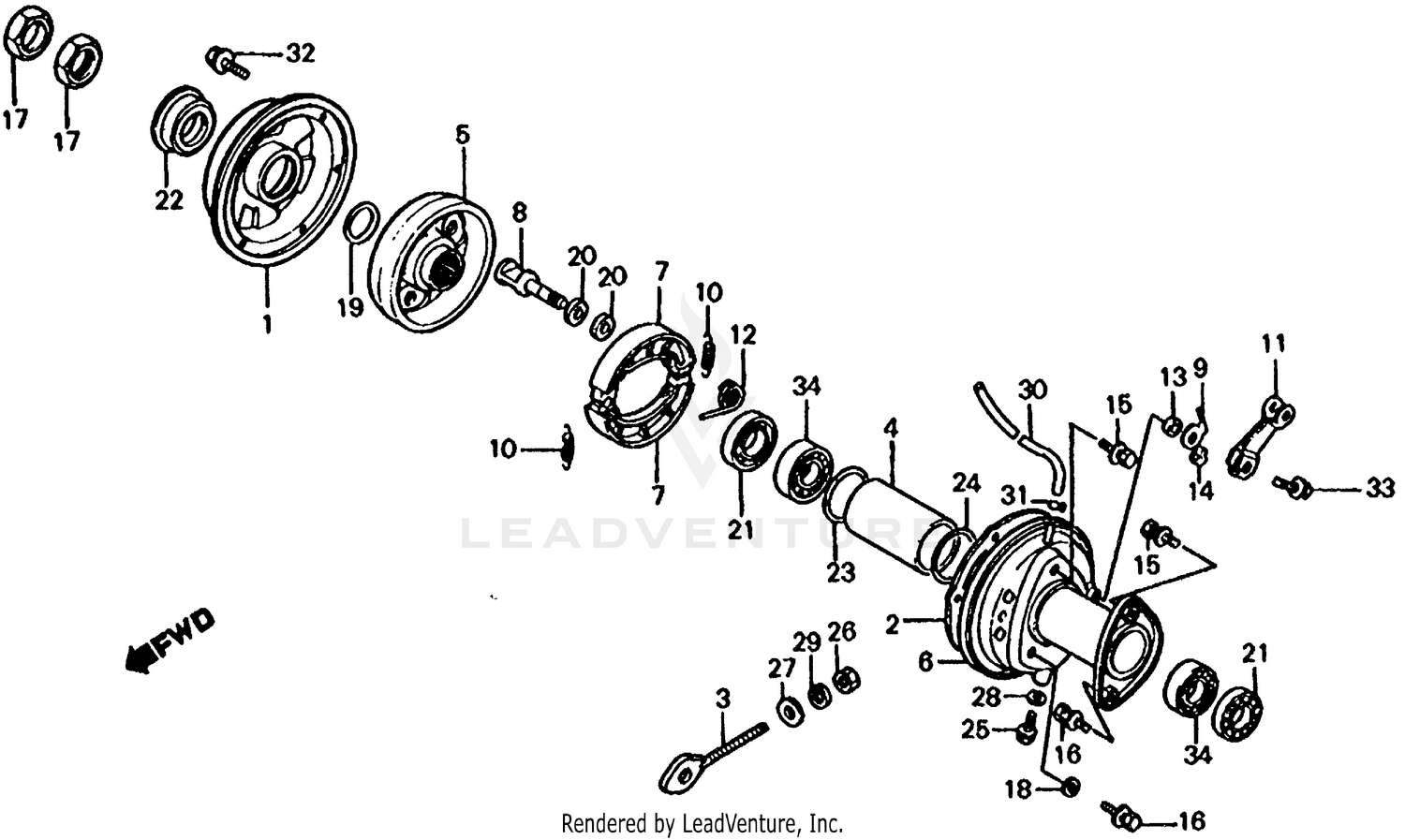

Rear Brake Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
SHOE SET, BRAKE
06430-HF1-911
Superseded by 06430-HF7-A30
|
$41.43 | ||
|
Available to order. Add to View Price |
|||
|
#NI
SHOE SET, BRAKE
06430-HF7-A30
|
$41.43 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE
06430-HF7-J20
Superseded by 06430-HF7-A30
|
$41.43 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE
06430-HF7-000
Superseded by 06430-HF7-A30
|
$41.43 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE
06430-968-405
Superseded by 06430-HF7-A30
|
$41.43 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE
431A2-968-681
Superseded by 06430-HF7-A30
|
$41.43 | ||
|
Unavailable |
|||
|
#1
COVER, BRAKE DRUM (NOT AVAILABLE)
40532-968-680
|
$65.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, BRAKE COVER
40539-968-000
|
$13.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADJUSTER, CHAIN
40543-HB3-000
|
$12.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADJUSTER, CHAIN
40543-VM6-680
Superseded by 40543-HB3-000
|
$12.24 | ||
|
Unavailable |
|||
|
#4
COLLAR, RR. AXLE CENTER (NOT AVAILABLE)
42621-968-000
|
$21.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM, RR. BRAKE (NOT AVAILABLE)
42622-VM4-680
|
$158.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, BEARING & BRAKE (NOT AVAILABLE)
43100-VM6-680
|
$213.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHOE SET, BRAKE
43120-968-681
Superseded by 06430-HF7-A30
|
$41.43 | ||
|
Unavailable |
|||
|
#7
SHOE SET, BRAKE
43120-968-682
Superseded by 06430-HF7-A30
|
$41.43 | ||
|
Unavailable |
|||
|
#7
SHOE SET, BRAKE
45120-303-690
Superseded by 06430-HF7-A30
|
$41.43 | ||
|
Unavailable |
|||
|
#8
CAM, RR. BRAKE
43141-968-680
|
$25.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
INDICATOR, BRAKE
43145-958-000
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
INDICATOR, BRAKE
43145-968-680
Superseded by 43145-958-000
|
$6.11 | ||
|
Unavailable |
|||
|
#10
SPRING, RR. BRAKE SHOE
43151-329-000
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
ARM, RR. BRAKE (NOT AVAILABLE)
43410-968-680
Superseded by 43410-VM6-000
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, RR. BRAKE ARM RETURN
43413-968-000
|
$6.86 | ||
|
Unavailable |
|||
|
#13
DUST SEAL, BRAKE CAM
45134-250-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FR. BRAKE ARM SETTING
45436-001-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-WASHER (12X25)
90116-958-003
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-WASHER (12X28)
90117-958-003
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, RR. AXLE
90307-968-000
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, ROTOR SETTING (NOT AVAILABLE)
90427-358-000
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, TAPER
90481-HC4-000
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, TAPER
90481-958-000
Superseded by 90481-HC4-000
|
$9.25 | ||
|
Unavailable |
|||
|
#20
OIL SEAL (14X20X4) (NIPPON OIL-SEAL)
91208-611-005
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUST SEAL (42X62X7)
91252-958-013
|
$25.21 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUST SEAL (42X62X7)
91252-958-014
Superseded by 91252-958-013
|
$25.21 | ||
|
Unavailable |
|||
|
#22
DUST SEAL (45X65X15)
91253-968-005
|
$34.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (31.7X2.4)
91306-MA6-005
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (31.7X2.4)
91307-958-003
Superseded by 91306-MA6-005
|
$4.13 | ||
|
Unavailable |
|||
|
#24
O-RING (32.5X1.8)
91316-PY4-003
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (32.5X1.8)
91355-943-000
Superseded by 91316-PY4-003
|
$4.06 | ||
|
Unavailable |
|||
|
#25
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, HEX. (8MM)
94001-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, HEX. (8MM)
94001-08080-0S
Superseded by 94001-08000-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (8MM)
94001-08080-05
Superseded by 94001-08000-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (8MM)
94001-08200-0S
Superseded by 94001-08000-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#27
WASHER, PLAIN (8MM)
94101-08800
|
$1.93 | ||
|
Unavailable |
|||
|
#28
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING (8MM)
94111-08800
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#30
BULK HOSE, FUEL (3.5X3000) (3.5X630)
95001-35003-60M
|
$24.17 | ||
|
Available to order. Add to View Price |
|||
|
#30
BULK HOSE, FUEL (3.5X3000) (3.5X650)
95001-35003-60M
|
$24.17 | ||
|
Unavailable |
|||
|
#31
CLIP, TUBE (B7)
95002-02070
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.65 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE (6X30)
90007-PA9-000
Superseded by 95701-06030-08
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X30)
95701-06030-08
|
$2.17 | ||
|
Unavailable |
|||
|
#34
BEARING, RADIAL BALL (6007)
96150-60070-10
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
