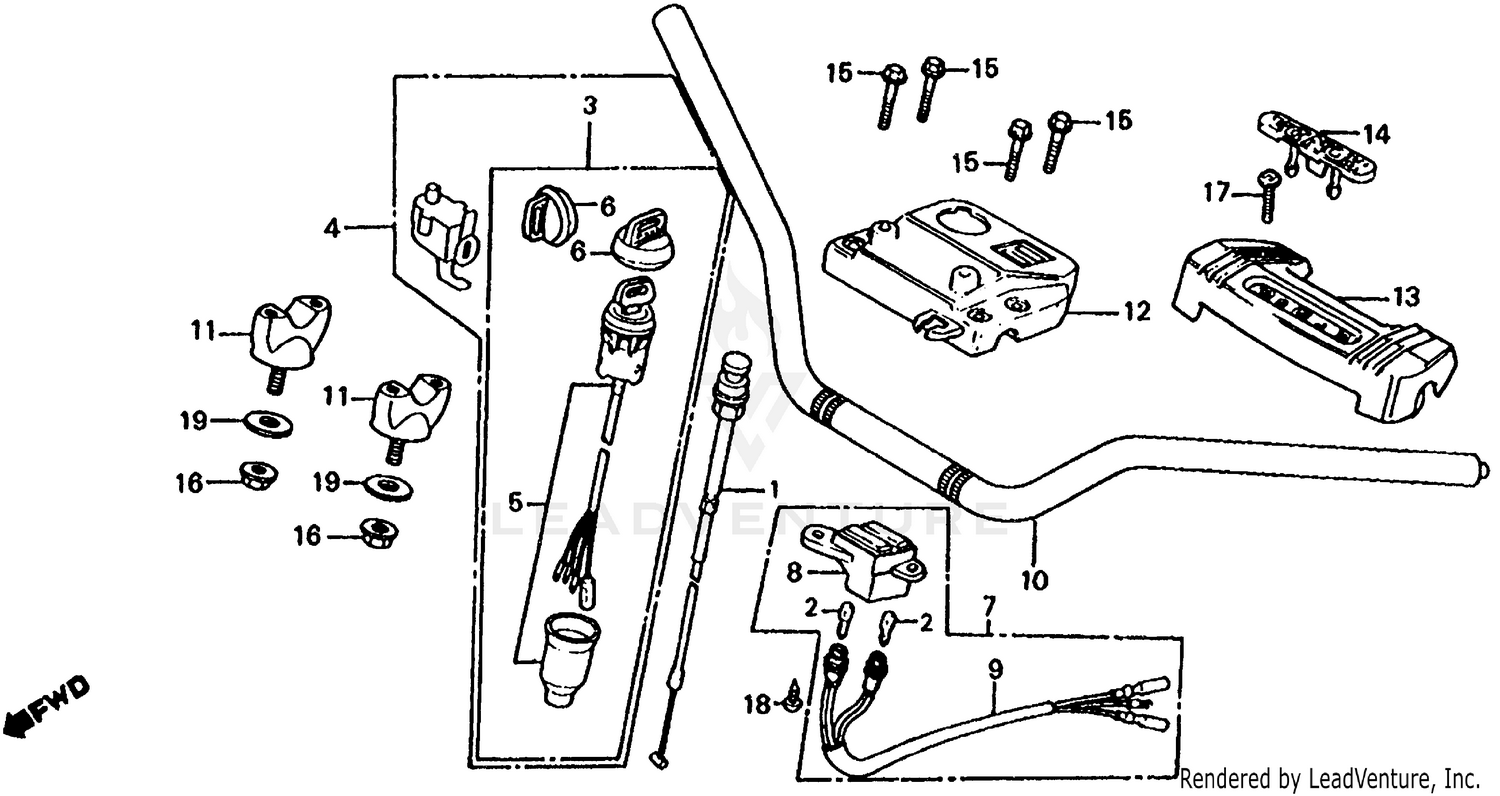

Handlebar + Top Bridge Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, CHOKE
17950-VM6-680
|
$19.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB 12V 2.3W WED
34908-MB0-003
Superseded by 34275-S2X-003
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
LOCK SET (NOT AVAILABLE)
35010-VM6-681
|
$73.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
LOCK SET
35010-HB6-671
|
$61.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
LOCK SET
35010-HB6-671
|
$61.35 | ||
|
Unavailable |
|||
|
#5
LOCK SET
35100-HB6-000
Superseded by 35010-HB6-671
|
$61.35 | ||
|
Unavailable |
|||
|
#5
LOCK SET
35100-HB6-010
Superseded by 35010-HB6-671
|
$61.35 | ||
|
Unavailable |
|||
|
#5
LOCK SET
35100-HB6-010
Superseded by 35010-HB6-671
|
$61.35 | ||
|
Unavailable |
|||
|
#5
LOCK SET
35100-VM6-680
Superseded by 35010-HB6-671
|
$61.35 | ||
|
Unavailable |
|||
|
#6
CAP, COMBINATION SWITCH KEY
35113-VM6-007
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
INDICATOR ASSY., NEUTRAL REVERSE
38400-VM6-003
|
$63.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE (NOT AVAILABLE)
38401-969-003
|
$30.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
WIRE
38402-VM6-000
|
$31.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
HANDLEBAR (NOT AVAILABLE)
53100-VM6-680
|
$72.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, HANDLE (LOWER)
53130-HA0-680
|
$24.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, HANDLEBAR (UPPER)
53131-VM6-680
|
$121.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, HANDLEBAR (NOT AVAILABLE)
53205-958-682
|
$17.32 | ||
|
Unavailable |
|||
|
#14
LABEL, HANDLEBAR COVER (NOT AVAILABLE)
53206-958-003
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X36)
90111-402-700
Superseded by 90111-362-000
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U (10MM)
90304-GE8-003
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-WASHER (6X20)
93891-06020-08
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING (4X12)
93903-34320
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN (10X28) (NOT AVAILABLE)
90507-VM6-680
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
