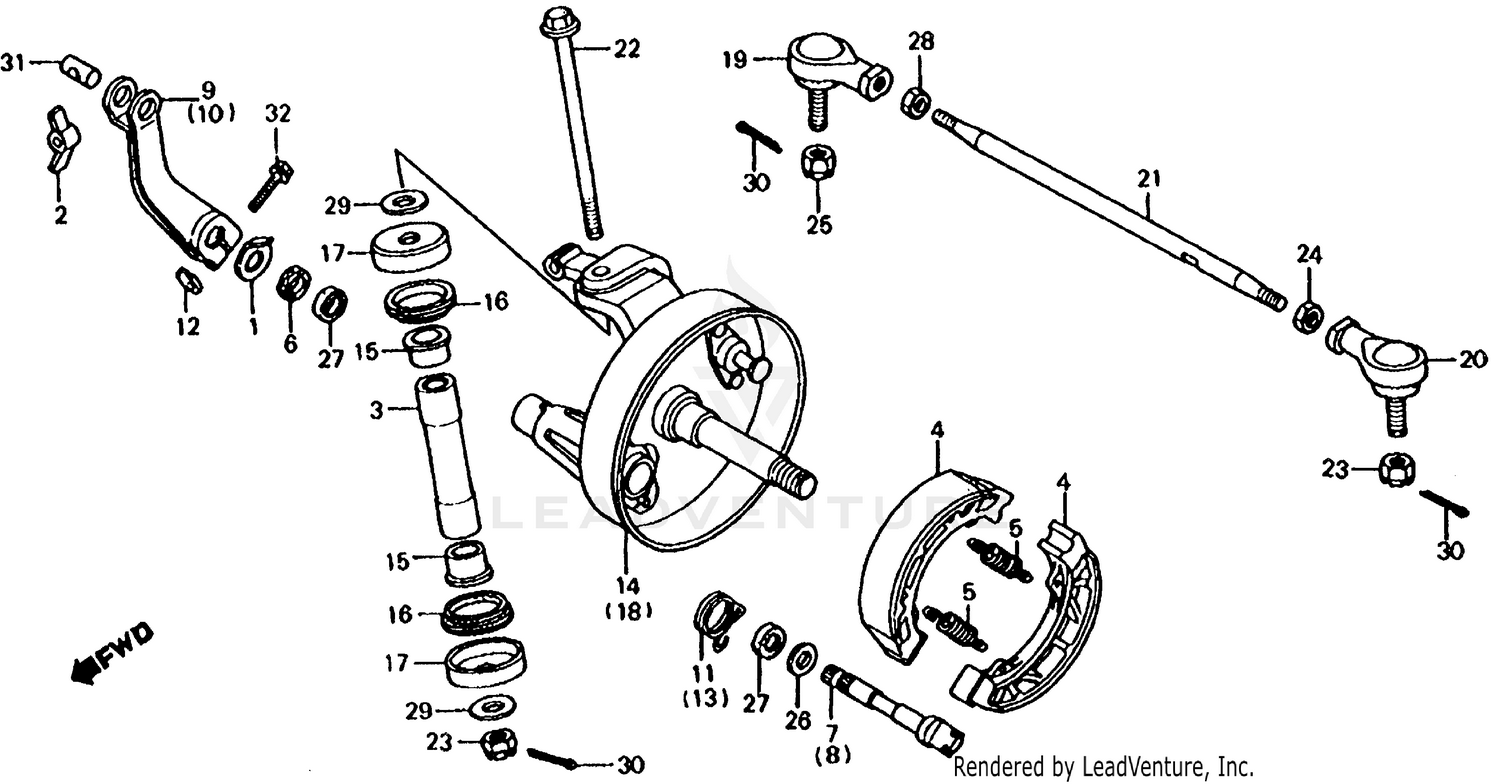

Front Brake Panel + Tie Rod Diagram

Item MSRP Qty
#NI SHOE SET, BRAKE (JB)
06450-GAG-003
Superseded by 06450-178-932
 $28.85
Available to order.
Add to View Price
#NI SHOE SET, BRAKE (JB)
06450-096-405
Superseded by 06450-178-932
 $28.85
Unavailable
#NI SHOE SET, BRAKE (JB)
451A2-096-305
Superseded by 06450-178-932
 $28.85
Unavailable
#1 INDICATOR, RR. BRAKE
43145-KB4-000
 $7.46
Available to order.
Add to View Price
#2 NUT, BRAKE ADJUST
43459-434-000
 $17.72
Available to order.
Add to View Price
#3 COLLAR, KINGPIN
44622-VM6-000
 $26.06
Unavailable
#4 SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)
45120-096-652
 $6.51
Unavailable
#5 SPRING, BRAKE SHOE
45133-028-000
 $2.21
Available to order.
Add to View Price
#6 DUST SEAL, BRAKE CAM
45134-250-000
 $3.09
Available to order.
Add to View Price
#7 CAM, R. FR. BRAKE
45141-VM6-000
 $17.87
Available to order.
Add to View Price
#8 CAM, L. FR. BRAKE (NOT AVAILABLE)
45151-VM6-000
 $18.58
Available to order.
Add to View Price
#9 ARM, R. FR. BRAKE (NOT AVAILABLE)
45410-VM6-000
 $11.93
Available to order.
Add to View Price
#10 ARM, L. FR. BRAKE (NOT AVAILABLE)
45420-VM6-000
 $11.93
Available to order.
Add to View Price
#11 SPRING, R. FR. BRAKE ARM (NOT AVAILABLE)
45435-VM6-000
 $3.78
Available to order.
Add to View Price
#12 NUT, FR. BRAKE ARM SETTING
45436-001-000
 $2.05
Available to order.
Add to View Price
#13 SPRING, L. FR. BRAKE ARM (NOT AVAILABLE)
45445-VM6-000
 $3.94
Available to order.
Add to View Price
#14 KNUCKLE, R. (NOT AVAILABLE)
51210-VM6-680
 $231.63
Available to order.
Add to View Price
#15 BUSH, KINGPIN
51215-VM6-003
 $23.05
Available to order.
Add to View Price
#16 DUST SEAL, KINGPIN
51217-VM6-003
 $9.27
Unavailable
#16 DUST SEAL, KINGPIN
51217-VM6-004
Superseded by 51217-VM6-003
 $9.27
Unavailable
#17 CAP, DUST SEAL
51218-VM6-000
 $7.34
Available to order.
Add to View Price
#18 KNUCKLE, L.
51220-VM6-680
 $297.52
Available to order.
Add to View Price
#19 JOINT, BALL (RIGHT HAND THREAD) (OUTER)
53150-HB3-003
 $79.69
Available to order.
Add to View Price
#19 JOINT, BALL (RIGHT HAND THREAD)
53150-950-003
Superseded by 53150-HB3-003
 $79.69
Unavailable
#20 JOINT, BALL (LEFT HAND THREAD) (INNER)
53158-HB3-003
 $74.24
Available to order.
Add to View Price
#20 JOINT, BALL (LEFT HAND THREAD)
53158-950-003
Superseded by 53158-HB3-003
 $74.24
Unavailable
#21 TIE ROD
53521-VM6-680
 $34.70
Available to order.
Add to View Price
#22 BOLT, KINGPIN
90198-VM6-000
 $15.81
Unavailable
#23 NUT, FR. WHEEL AXLE
90305-041-000
 $5.79
Available to order.
Add to View Price
#24 NUT, HEX. (10MM) (LEFT HAND THREAD)
90311-VM5-010
 $3.36
Available to order.
Add to View Price
#24 NUT, HEX. (10MM) (LEFT HAND THREAD)
90311-VM6-680
 $3.36
Available to order.
Add to View Price
#25 NUT, CASTLE (10MM)
90320-601-000
 $11.42
Available to order.
Add to View Price
#26 WASHER (14.2MM)
90451-115-000
 $3.34
Available to order.
Add to View Price
#27 OIL SEAL (14X20X4) (NIPPON OIL-SEAL)
91208-611-005
 $5.23
Available to order.
Add to View Price
#28 NUT, HEX. (10MM)
94002-10200-0S
 $0.94
Available to order.
Add to View Price
#29 WASHER, PLAIN (10MM)
94101-10000
 $1.15
Available to order.
Add to View Price
#30 PIN, SPLIT (2.5X30)
94201-25200
Superseded by 94201-25300
 $1.03
Available to order.
Add to View Price
#30 PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
 $1.03
Unavailable
#30 PIN, COTTER (2.5MM)
94201-25300
 $1.03
Unavailable
#31 JOINT, BRAKE ARM
95015-32001
 $1.02
Available to order.
Add to View Price
#32 BOLT, FLANGE (6X28)
95700-06028-08
Superseded by 95701-06028-08
 $2.18
Available to order.
Add to View Price
#32 BOLT, FLANGE (6X28)
95701-06028-08
 $2.18
Unavailable
