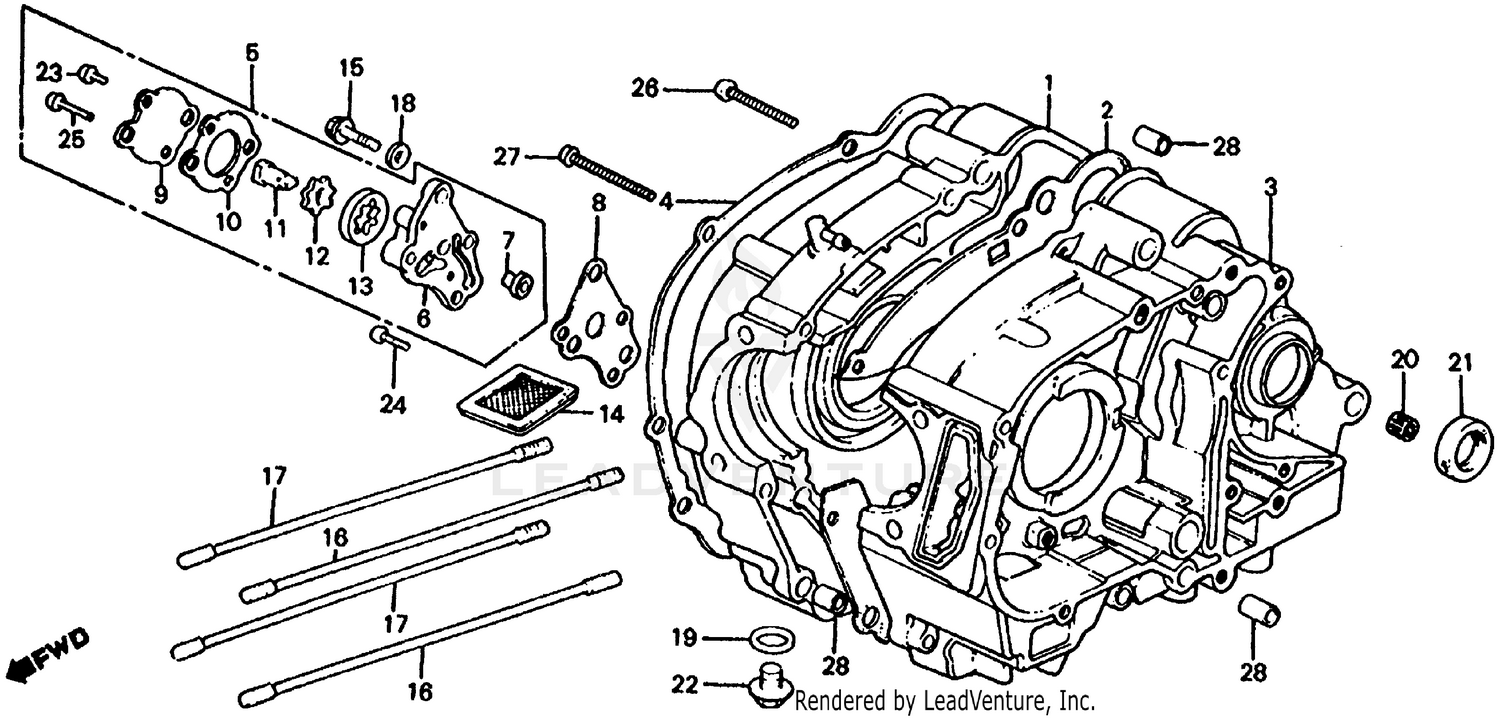

Crankcase + Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-VM6-680
|
$235.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE
11191-968-010
Superseded by 11191-968-306
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE
11191-968-306
|
$6.13 | ||
|
Unavailable |
|||
|
#3
CRANKCASE, L. (NOT AVAILABLE)
11200-VM6-000
|
$233.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, R.
11393-121-630
Superseded by 11393-121-632
|
$17.26 | ||
|
Unavailable |
|||
|
#4
GASKET, R.
11393-459-000
Superseded by 11393-121-632
|
$17.26 | ||
|
Unavailable |
|||
|
#4
GASKET, R.
11393-459-306
Superseded by 11393-121-632
|
$17.26 | ||
|
Unavailable |
|||
|
#5
PUMP ASSY., OIL (NOT AVAILABLE)
15100-968-010
|
$44.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
BODY, OIL PUMP
15111-968-000
|
$38.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
KNOCK, OIL PUMP
15113-968-310
|
$10.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, OIL PUMP BODY
15119-028-030
Superseded by 15119-028-306
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, OIL PUMP BODY
15119-028-306
|
$1.75 | ||
|
Unavailable |
|||
|
#9
COVER, OIL PUMP (NOT AVAILABLE)
15121-028-060
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, OIL PUMP COVER
15128-028-030
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRIVESHAFT, OIL PUMP
15181-943-000
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)
15331-968-000
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)
15332-968-000
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREEN, OIL FILTER
15421-035-010
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, OIL JOINT
90015-943-010
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT A, CYLINDER STUD
90031-427-010
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT B, CYLINDER STUD (NOT AVAILABLE)
90032-107-010
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, OIL PUMP JOINT SEALING (NOT AVAILABLE)
90405-VM6-000
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, DRAIN PLUG (12MM)
90407-231-000
Superseded by 94109-12000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, DRAIN VALVE (12.5X20)
90407-259-000
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.13 | ||
|
Unavailable |
|||
|
#20
BEARING, NEEDLE (12X16X10)
91001-VM6-003
Superseded by 91024-GJ5-003
|
$20.37 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (12X16X10)
91024-GJ5-003
|
$20.37 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (27X37X7)
91203-459-771
Superseded by 91205-943-003
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (27X37X7)
91205-943-003
|
$13.42 | ||
|
Unavailable |
|||
|
#22
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN (5X12)
93500-05012-0A
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (6X25)
93500-06025
Superseded by 93500-06025-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (6X25)
93500-06025-0A
|
$1.20 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN (6X40)
93500-06040-0A
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (6X45)
93500-06045-0A
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN A, DOWEL (10X16)
94301-10160
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
