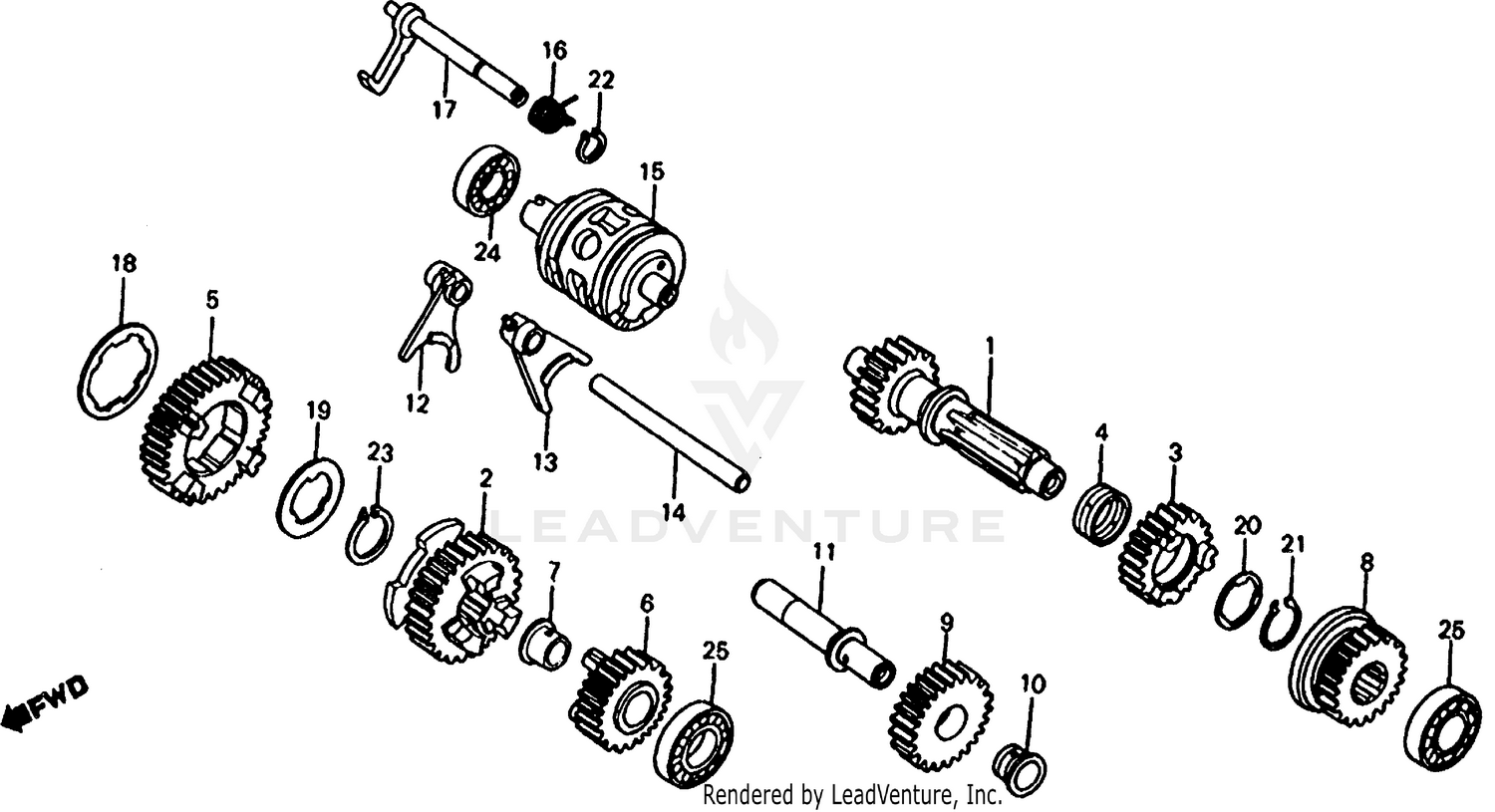

Sub-transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, REDUCTION
23911-VM6-000
|
$74.70 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, ULTRA LOW DRIVE (27T)
23921-VM6-010
|
$65.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, ULTRA LOW DRIVEN (21T)
23930-VM6-010
|
$43.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH (20MM) (NOT AVAILABLE)
23932-VM6-300
|
$12.46 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, HIGH DRIVE (32T)
23941-VM6-000
Superseded by 23941-VM6-010
|
$63.00 | ||
|
Unavailable |
|||
|
#5
GEAR, HIGH DRIVE (32T)
23941-VM6-010
|
$63.00 | ||
|
Unavailable |
|||
|
#6
GEAR, REVERSE DRIVE LOW (21T) (NOT AVAILABLE)
23950-VM6-010
|
$34.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH (15MM) (NOT AVAILABLE)
23952-VM6-000
|
$9.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, REVERSE DRIVEN (21T) (NOT AVAILABLE)
23961-VM6-010
|
$52.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, REVERSE IDLE (23T) (NOT AVAILABLE)
23970-VM6-000
|
$30.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH (15MM) (NOT AVAILABLE)
23972-VM6-000
|
$12.23 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT, REVERSE IDLE (NOT AVAILABLE)
23981-VM6-000
|
$26.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
FORK, R. SUB-GEARSHIFT
24231-VM6-000
|
$37.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
FORK, L. SUB-GEARSHIFT
24241-VM6-000
|
$41.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, SUB-SHIFT FORK (NOT AVAILABLE)
24251-VM6-000
|
$6.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
DRUM, SUB-GEARSHIFT (NOT AVAILABLE)
24302-VM6-000
|
$54.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, REVERSE STOPPER (NOT AVAILABLE)
24762-VM6-004
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT, REVERSE STOPPER (NOT AVAILABLE)
24860-VM6-000
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPLINE (30MM)
90401-968-000
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPLINE (20MM) (NOT AVAILABLE)
90455-958-680
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPLINE (20MM)
90461-459-010
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP (OUTER) (20MM)
90601-459-000
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP (OUTER) (10MM)
94510-10000
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP (OUTER) (20MM)
94510-20000
|
$1.34 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP, OUTER (20MM)
94510-20120
Superseded by 94510-20000
|
$1.34 | ||
|
Unavailable |
|||
|
#24
BEARING, RADIAL BALL (6002)
96100-60020-00
|
$12.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6202Z)
96120-62020-00
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
