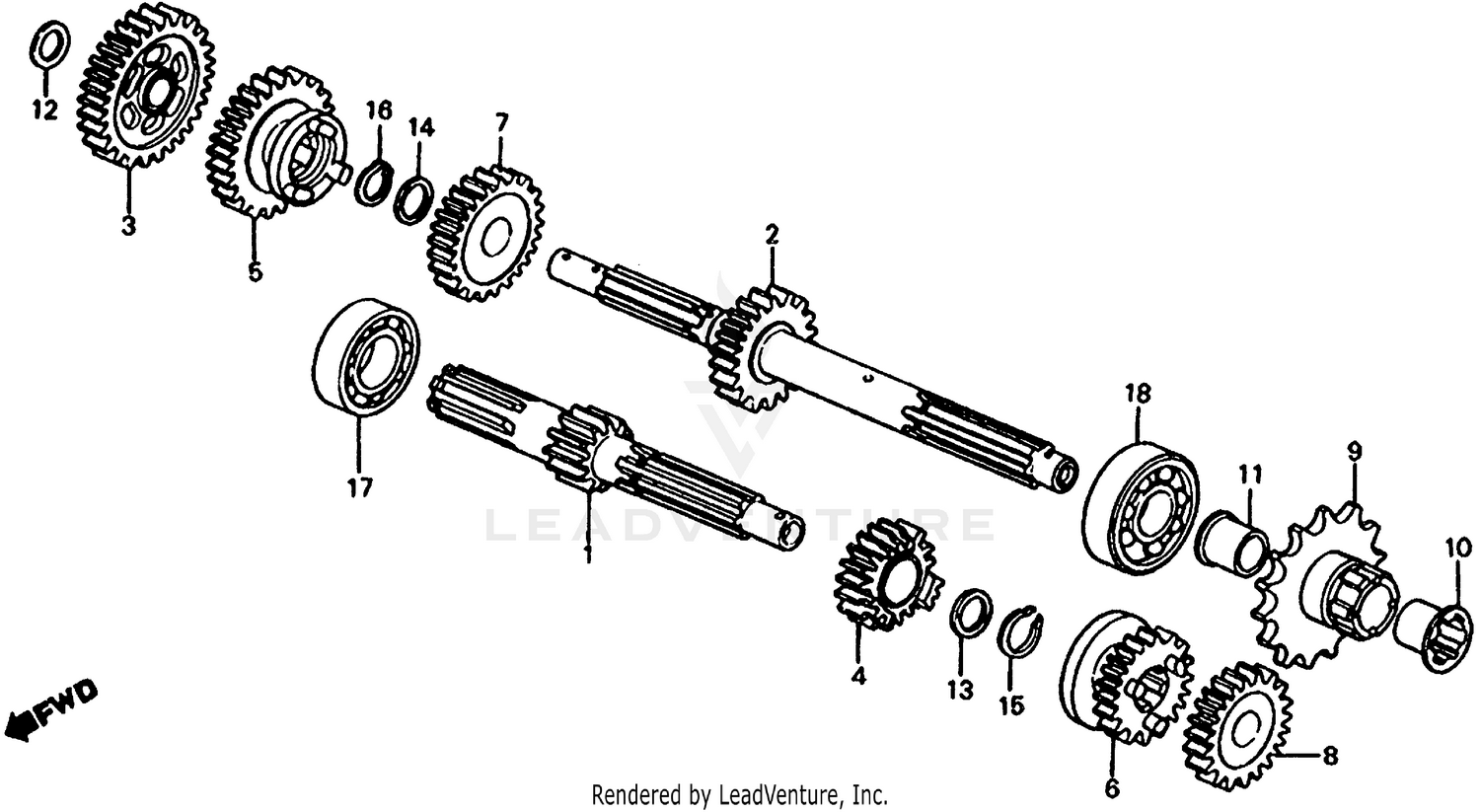

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (NOT AVAILABLE)
23211-968-000
|
$52.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23220-VM6-000
|
$82.43 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT LOW
23421-968-000
|
$60.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, MAINSHAFT SECOND
23431-968-000
|
$54.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, COUNTERSHAFT SECOND (NOT AVAILABLE)
23441-968-000
|
$44.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT THIRD (21T)
23451-968-000
|
$68.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, COUNTERSHAFT THIRD (25T)
23461-968-000
|
$51.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT TOP (24T)
23471-968-000
|
$51.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPROCKET, DRIVE (13T)
23801-VM6-000
|
$56.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH B, DRIVE SPROCKET
23802-VM6-000
Superseded by 23807-459-770
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH B, DRIVE SPROCKET
23807-459-770
|
$14.66 | ||
|
Unavailable |
|||
|
#11
BUSH B, DRIVE SPROCKET
23807-459-770
|
$14.66 | ||
|
Unavailable |
|||
|
#12
WASHER, THRUST (14MM)
90451-121-000
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPLINE (18MM)
90461-028-000
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPLINE (20MM)
90461-459-010
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP (18MM)
90601-030-000
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP (OUTER) (20MM)
90601-459-000
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, RADIAL BALL (6004)
96100-60040-00
|
$18.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
