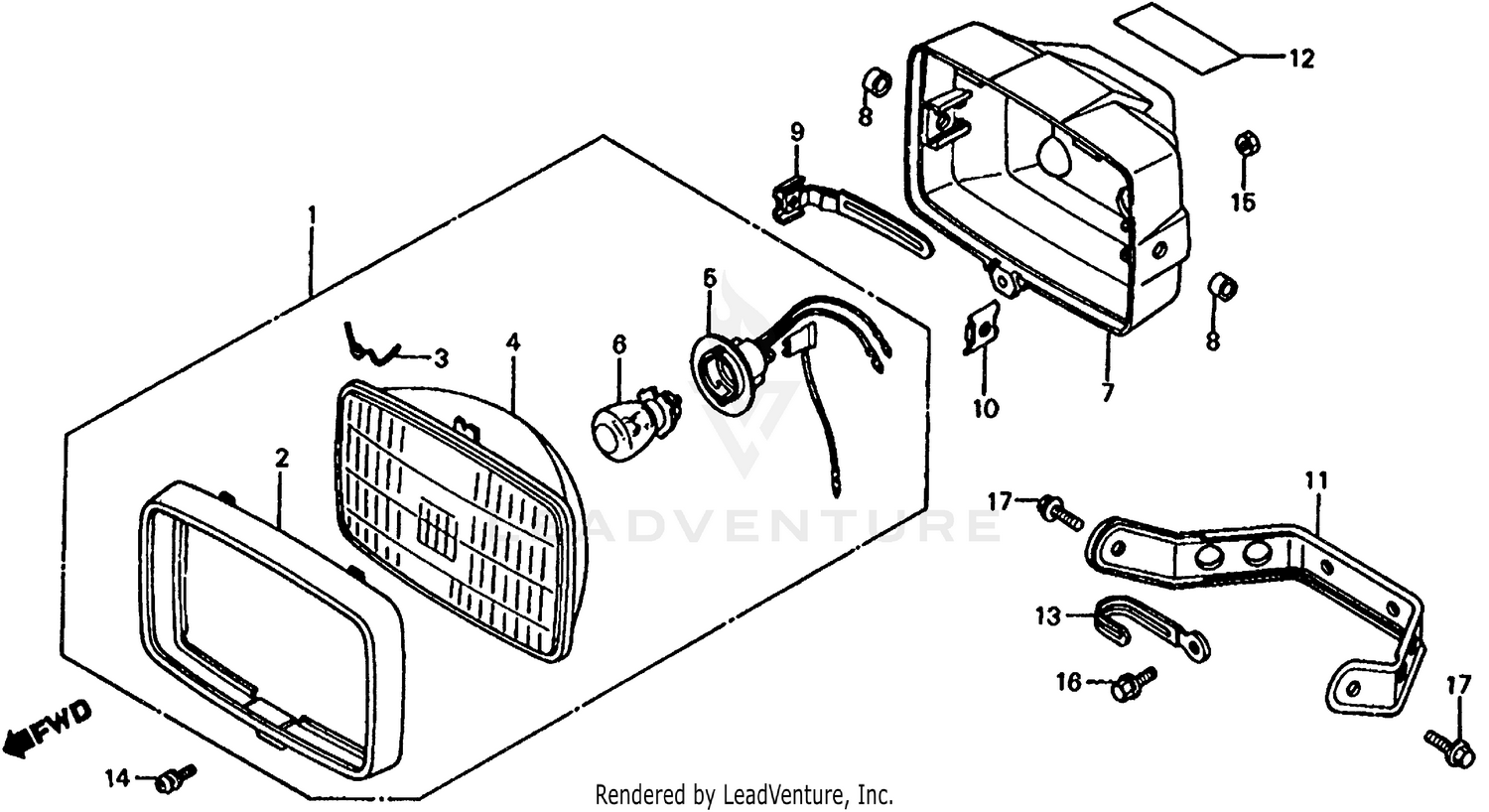

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY. (12V 45/45W)
33100-VM6-680
|
$110.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIM, HEADLIGHT (NOT AVAILABLE)
33101-VM6-680
|
$33.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, UNIT HOLDER
33109-943-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
HEADLIGHT UNIT (NOT AVAILABLE)
33120-943-003
|
$46.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET, HEADLIGHT (NOT AVAILABLE)
33130-943-013
|
$13.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB, HEADLIGHT (12V45/45W) (STANLEY)
34901-HB6-003
Superseded by 34901-HC3-003
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB, HEADLIGHT (12V45/45W) (STANLEY)
34901-HC3-003
|
$12.25 | ||
|
Unavailable |
|||
|
#6
BULB, HEADLIGHT (12V45/45W) (STANLEY)
34901-323-750
Superseded by 34901-HC3-003
|
$12.25 | ||
|
Unavailable |
|||
|
#7
CASE, HEADLIGHT (NOT AVAILABLE)
61301-VM6-000
|
$71.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, HEADLIGHT CASE
61302-229-300
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEADLIGHT CASE
61303-VM6-000
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, HEADLIGHT CASE
61303-105-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, HEADLIGHT CASE (NOT AVAILABLE)
61311-VM6-680
|
$41.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, WIRE HARNESS
91404-VM6-000
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW-WASHER (5X12)
93892-05012-00
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEX. (5MM)
94001-050800S
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-WASHER (8X12)
93401-08012-08
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-WASHER (8X12)
93491-08012-08
Superseded by 93401-08012-08
|
$1.78 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (8X16)
95701-08016-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X16)
95800-08016-00
Superseded by 95701-08016-00
|
$1.79 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (8X16)
95801-08016-00
Superseded by 95701-08016-00
|
$1.79 | ||
|
Unavailable |
|||
